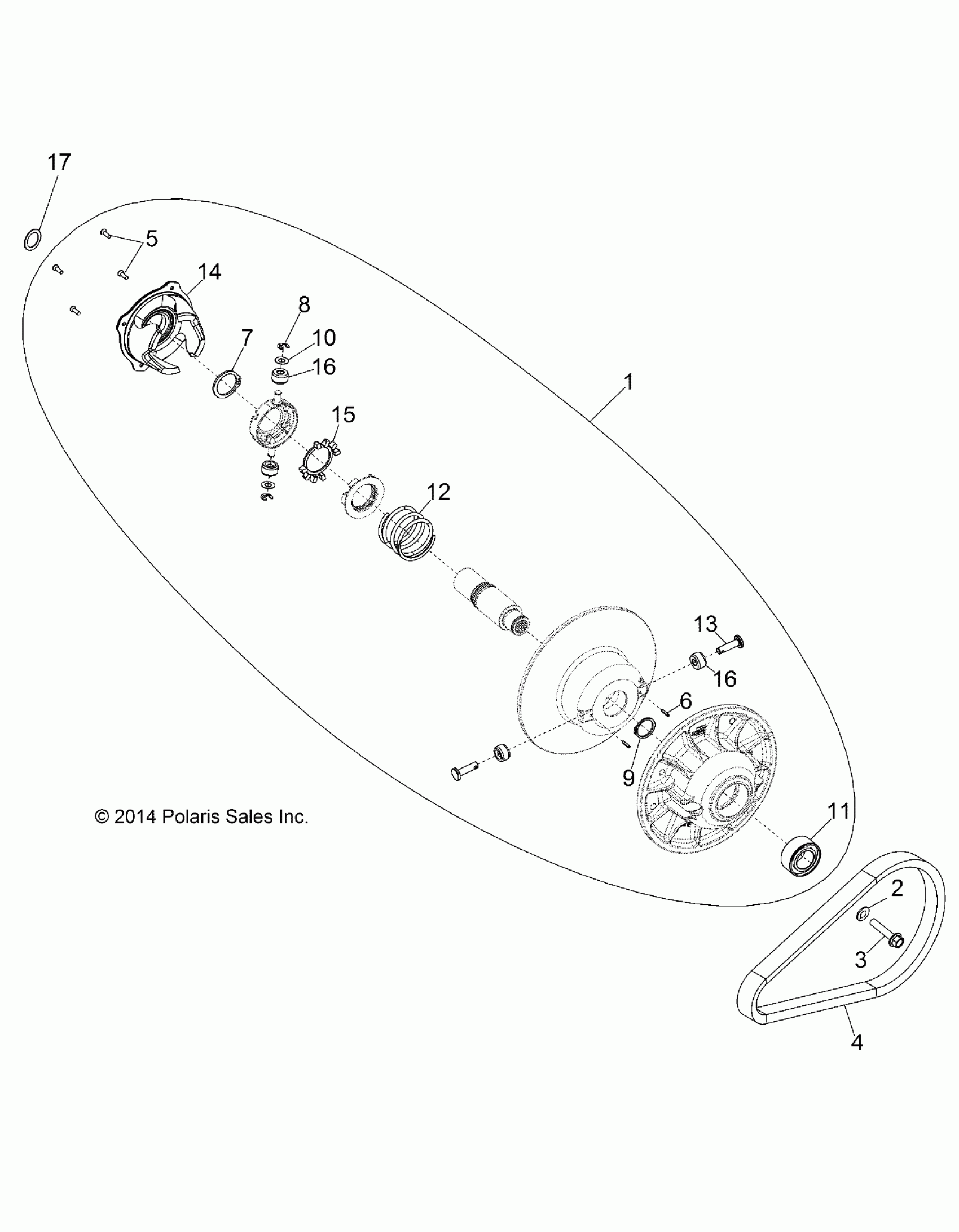

Polaris ACE 570 EFI (R09) - A16DAA57A5/A7/L2/E57A9/E57AM DRIVE TRAIN, SECONDARY CLUTCH - A16DAE57A9/AM (49ATVCLUTCHDRIVEN1323286) Diagram

#

Description
Price

1

ASM., DRIVEN CLUTCH, EBS [INCL. 2,7-9]

1323286

$432.89

2

WASHER, SPRING

7556490

$4.79

3

SCREW

7519285

$2.39

4

BELT, DRIVE

3211149

$135.99

4

BELT-DRIVE,10.5CD,HDY [HD OPTION]

3212359

$207.99

5

SCREW-HELIX, PATCH

3234754

$5.59

6

PIN,SPRING SLOTTED .125X.625

3234202

$3.99

7

RING, RETAINING, EXTERNAL

7710522

$13.59

8

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

9

RING, RETAINING

3234205

$11.19

10

WASHER, THRUST

7556226

$5.65

11

BEARING, BALL

3234203

$23.99

12

SPRING, COMPRESSION

3234452

$87.99

13

PIN, ROLLER

3234201

$15.99

14

CAM, EBS 58 START

3235545

$371.99

15

RETAINER, SPRING, INNER

7710564

Unavailable

16

ROLLER, CLUTCH

5434534

$48.56

16

ROLLER, CLUTCH

5434534

$48.56

17

WASHER, THRUST

7556745

$5.59
