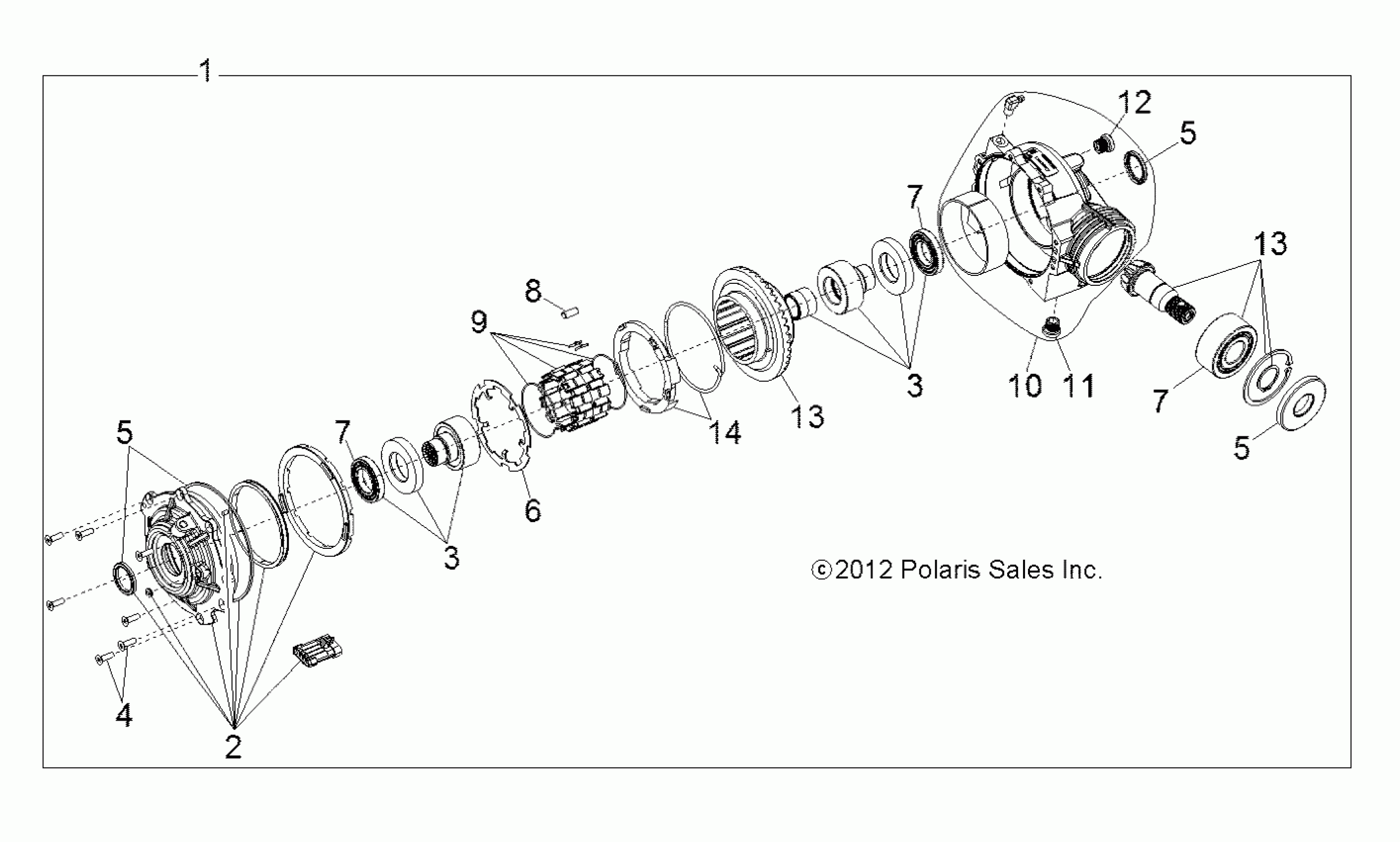

Polaris ACE 570 EFI (R09) - A16DAA57A5/A7/L2/E57A9/E57AM DRIVE TRAIN, FRONT GEARCASE INTERNALS - A16DAA57A5/A7/L2 (49RGRTRANSINTL13900XP) Diagram

ASM., FRONT GEARCASE W/2-13

1333285

$2,099.99

ASM., COVER OUTPUT W/O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASSY, BACKLASH SPACER, 4WD COIL, GROMMET & HEAT SHRINK TUBING

3235168

$603.24

KIT, HUB ASSY W/BUSHING, HUB SUB. ASSY & NYLON SPACER

3235169

$493.99

KIT, HUB ASSY W/BUSHING, HUB SUB. ASSY & NYLON SPACER

3235169

$493.99

KIT, FASTENER W/ALL FASTENERS

3235170

$19.84

KIT, SEAL REPAIR W/ALL SEALS

3235171

$93.08

KIT, SEAL REPAIR W/ALL SEALS

3235171

$93.08

KIT, SEAL REPAIR W/ALL SEALS

3235171

$93.08

PLATE, ARMATURE

3235485

$113.32

BEARING, PINION W/ALL BEARINGS

3235174

$94.99

BEARING, PINION W/ALL BEARINGS

3235174

$94.99

BEARING, PINION W/ALL BEARINGS

3235174

$94.99

KIT-ROLLER W/COMPLETE SET OF ROLLER

3234393

$5.65

ASM., FRONT GEARCASE HIGH PERFORMANCE ACCESSORY W/CLIP SET

3235262

$574.75

ASM., FRONT GEARCASE W/ROLL CAGE & SPRING WIRE FOR H-CLIP

3235261

$364.27

KIT, GEARCASE ASSY W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG & DRAIN PLUG

3235440

$789.99

KIT-PLUG,DRAIN

2203738

$42.74

KIT-PLUG,FILL

2203739

$44.51

KIT, GEAR HOUSING & PINION W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING & SHAFT RING

3235636

$859.99

KIT, GEAR HOUSING & PINION W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING & SHAFT RING

3235636

$859.99

KIT-TORSION,SPRING AND RETAINER W/TORSION SPRING & SPRINT RETAINER ASSY

3235712

$43.56
