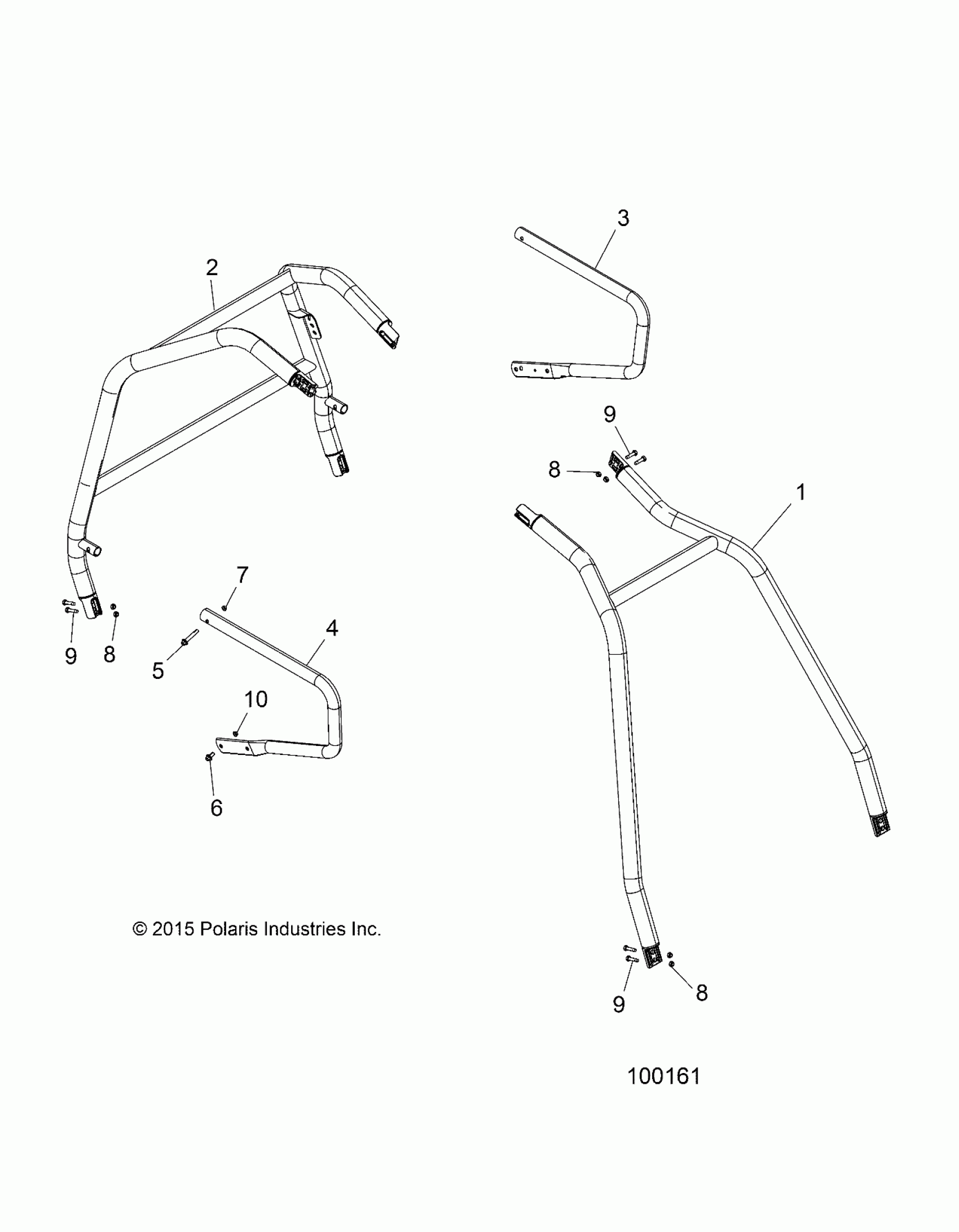

Polaris ACE 570 EFI (R09) - A16DAA57A5/A7/L2/E57A9/E57AM CHASSIS, CAB FRAME AND SIDE BARS - A16DAA57A5/A7/L2/E57A9/E57AM (100161) Diagram

#

Description
Price

1

TUBE, ROPS, FRONT, MATTE BLACK

1021791-458

Unavailable

2

TUBE, ROPS, REAR, MATTE BLACK

1019159-458

$351.99

2

WELD-TUBE,ROPS,REAR,VEL.BLUE [E57AM]

1019159-689

Unavailable

3

BOLSTER, LH, MATTE BLACK

5339103-458

$65.99

4

BOLSTER, RH, MATTE BLACK

5339104-458

$65.99

5

SCREW

7516732

$1.59

6

SCREW

7519243

$3.99

7

Nut, Flange

7547317

Unavailable

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

9

SCREW

7517935

$2.39

9

SCREW

7517935

$2.39

9

SCREW

7517935

$2.39

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
