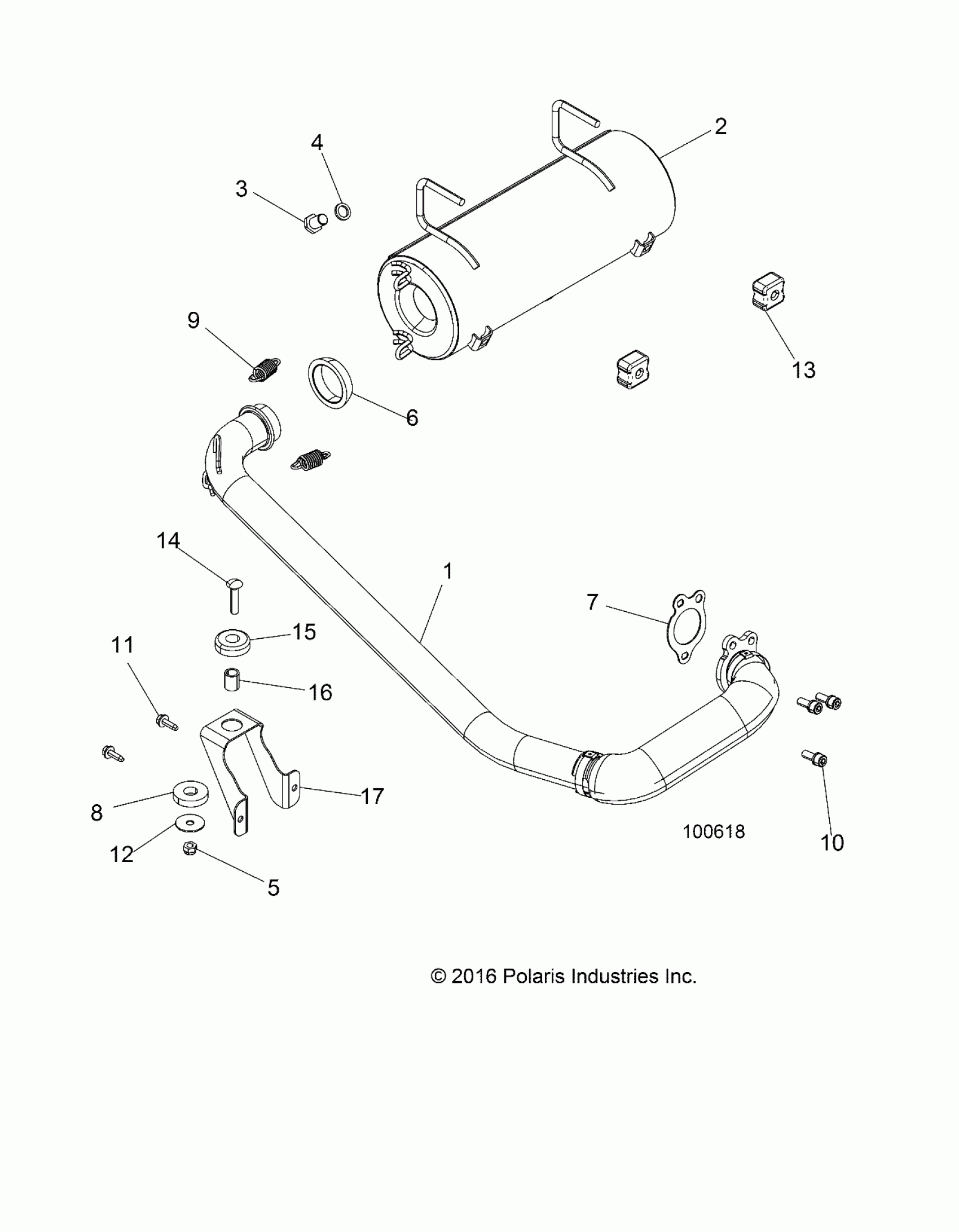

Polaris ACE 500 SOHC (R14) - A17DAA50A7 ENGINE, EXHAUST SYSTEM - A17DAA50A7 Diagram

#

Description
Price

1

ASM-EXHAUST PIPE,450

1262956

$466.39

2

WELD-EXHAUST SILENCER,PWDR BLK

1262487-489

$378.39

3

BOLT

7512666

$2.39

4

WASHER, CLEAN OUT

7556230

$1.49

5

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

SEAL

3610181

$31.99

7

GASKET-EXHAUST SEALING

5263806

Unavailable

8

WSHR-15.4X38.1X7.9 RUBBER

5414945

$4.79

9

SPRING-EXHAUST

7041789

$7.99

10

SCR-M8X1.25X22,HX/SO

7518984

$7.99

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

12

WASHER

7555716

$1.59

13

GROMMET

5413383

$4.79

14

BOLT, CARRIAGE

7515316

$2.39

15

DAMPER-VIBRATION

5414946

$4.79

16

BUSHING

5010192

$6.39

17

MOUNT, EXHAUST, LOWER

5258177

$31.99
