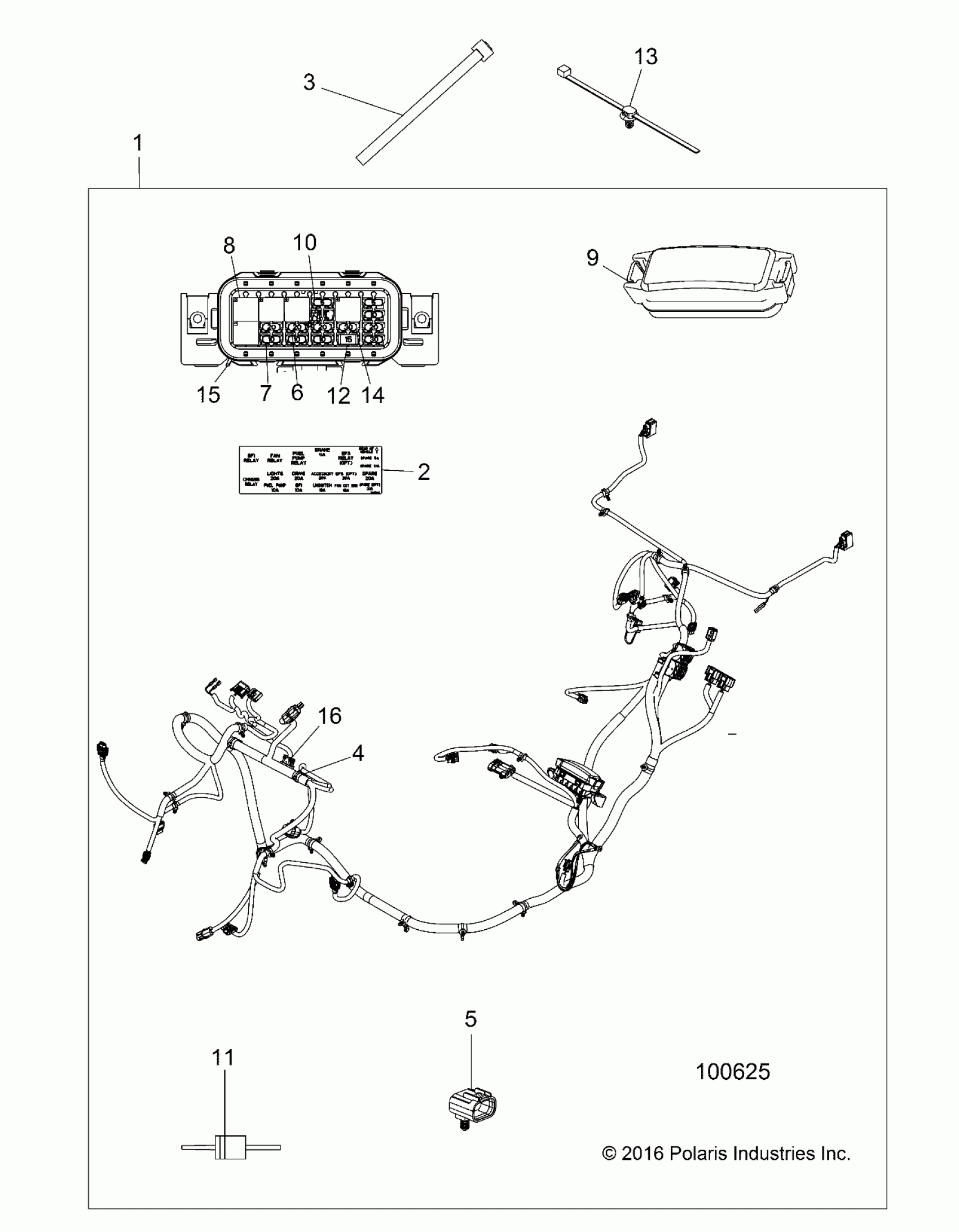

Polaris ACE 500 SOHC (R14) - A17DAA50A7 ELECTRICAL, WIRE HARNESS - A17DAA50A7 (100625) Diagram

Description

Price

HARNESS-CHASSIS [TO 10/17/16]

2413618

$906.39

HARNESS-CHASSIS [FROM 10/17/16]

2413860

$906.39

LABEL-FUSE BOX

7182082

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CAP, EPS SIGNAL

4014235

$7.99

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

COVER, FUSEBOX

4015011

$55.99

SEAL, FUSE CENTER

5415598

$8.79

FUSE-5A,MINI BLADE

4011652

Unavailable

DIODE, 6 AMP W/TERMINALS

2411035

$51.99

BREAKER, 15 AMP

4011406

$63.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

FUSE-MAIN,30 AMP

2434015

$7.19

FUSEBOX

4015056

$35.99

CAP, EPS POWER

4014236

$9.59
