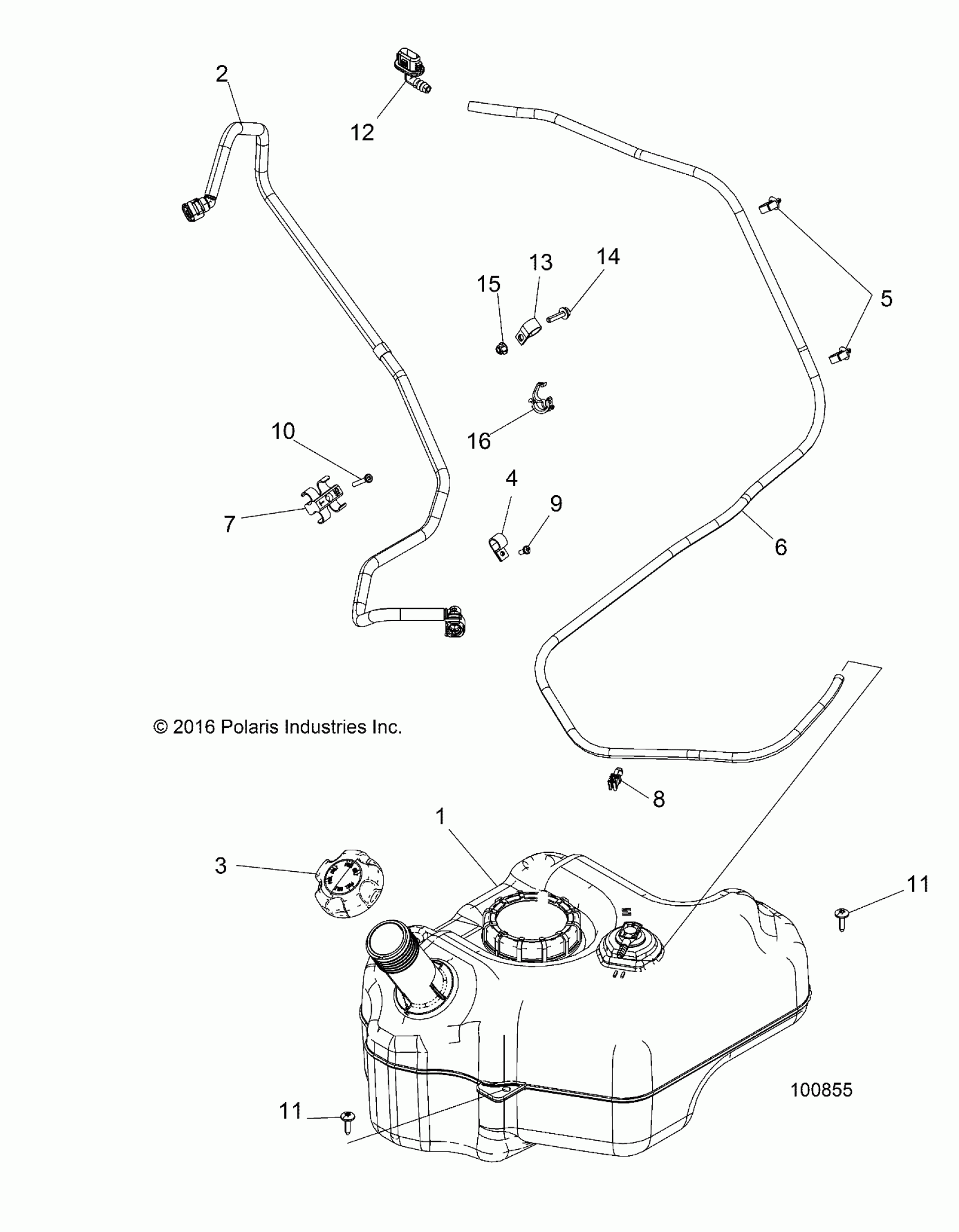

Polaris ACE 500 SOHC (R14) - A17DAA50A7 BODY, FUEL TANK - A17DAA50A7 (100855) Diagram

#

Description
Price

1

ASM-FUEL TANK

2521691

$928.19

1

ASM-FUEL PUMP

2521693

Unavailable

1

FUEL PUMP,SERVICE KIT,ACE [INCL. PUMP, GASKET, NUT, INSTRUCTIONS]

2207669

Unavailable

2

ASM-FUEL LINE,RAIL [TO 6/1/2017]

2521722

Unavailable

2

ASM-FUEL LINE,RAIL [FROM 6/1/2017]

2521899

$82.29

3

CAP-GAS TANK

5439075

$23.99

4

CLAMP, CABLE

7080499

$5.59

5

CLIP, ROUTING, HINGED

7670116

$5.59

6

FUEL LINE

8450040-600

$68.79

7

T-CLIP, T15

7081689

$7.19

8

STRAP, CABLE TIE W/EDGE CLIP

7082038

$6.39

9

SCREW

7512024

$4.79

10

SCREW

7512025

$4.79

11

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

11

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

12

FITTING-VENT LINE,90

5453464

$5.59

13

CLAMP-HOSE,.625 DIA VNL COATED

7080880

$5.59

14

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

16

CLIP-HARNESS 3-13MM INTERLCK

7081871

$3.99
