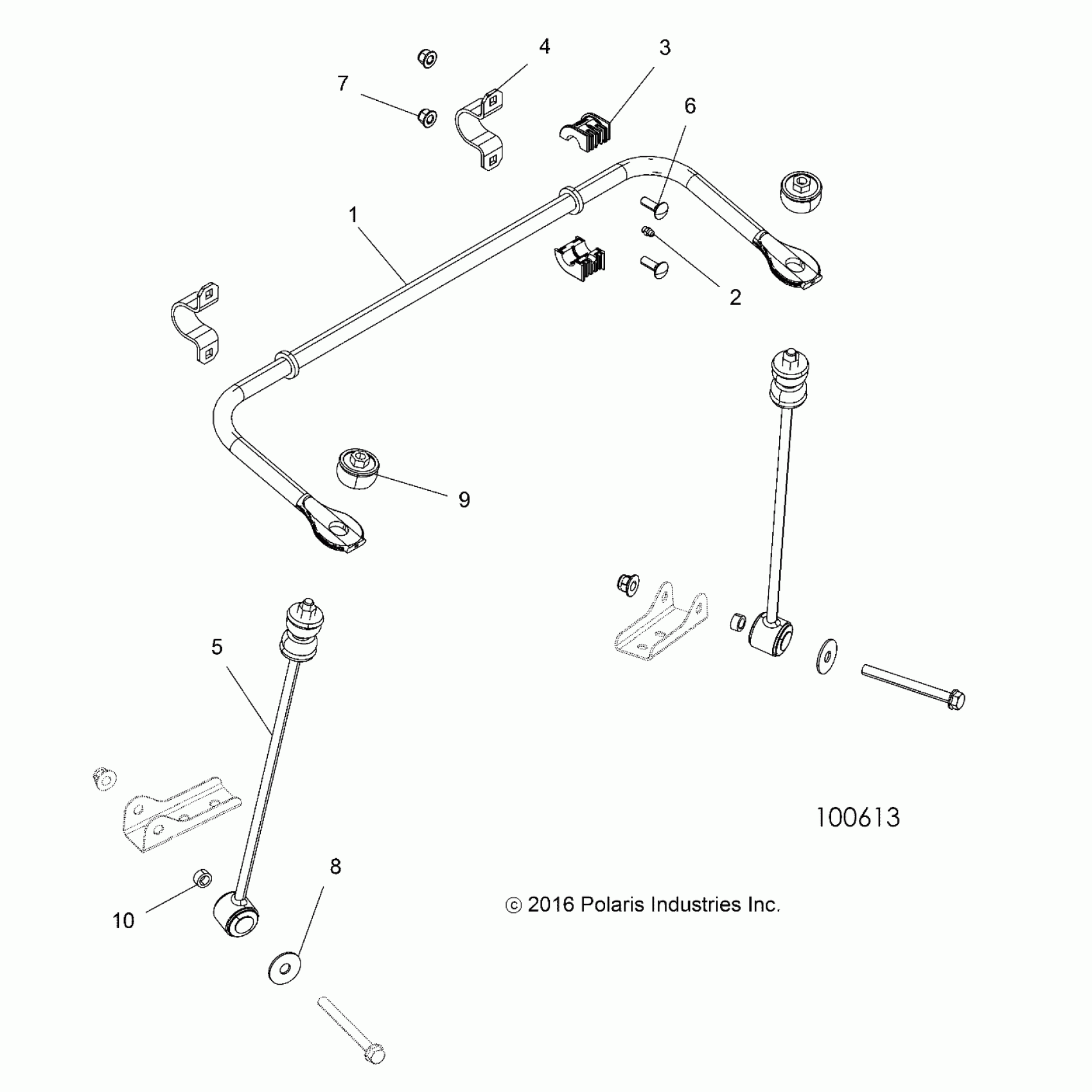

Polaris ACE 500 SOHC (R08) - A18DAA50B7 SUSPENSION, STABILIZER BAR, REAR - A18DAA50B7 (100613) Diagram

#

Description
Price

1

BAR-STABILIZER,REAR,BLK

5339373

$134.99

2

Fitting, Lubrication

7080433

$1.19

3

BUSHING-STABILIZER

5452764

$4.76

4

BRACKET-BUSHING

5255357

$28.32

5

ASM-LINKAGE,STABILIZER,12MM

1543843

$76.89

6

BOLT-CARR M8X1.25X25-8.8-ZOD

7518920

$4.84

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

8

WASHER

7555852

$2.38

9

BUSHING-LNKG TORBAR,DURO80

5416013

$4.76

10

SPACER

5334945

$3.97
