SUSPENSION, FRONT STRUT - A18DAA50B7 (49ATVSTRUT14SP325)

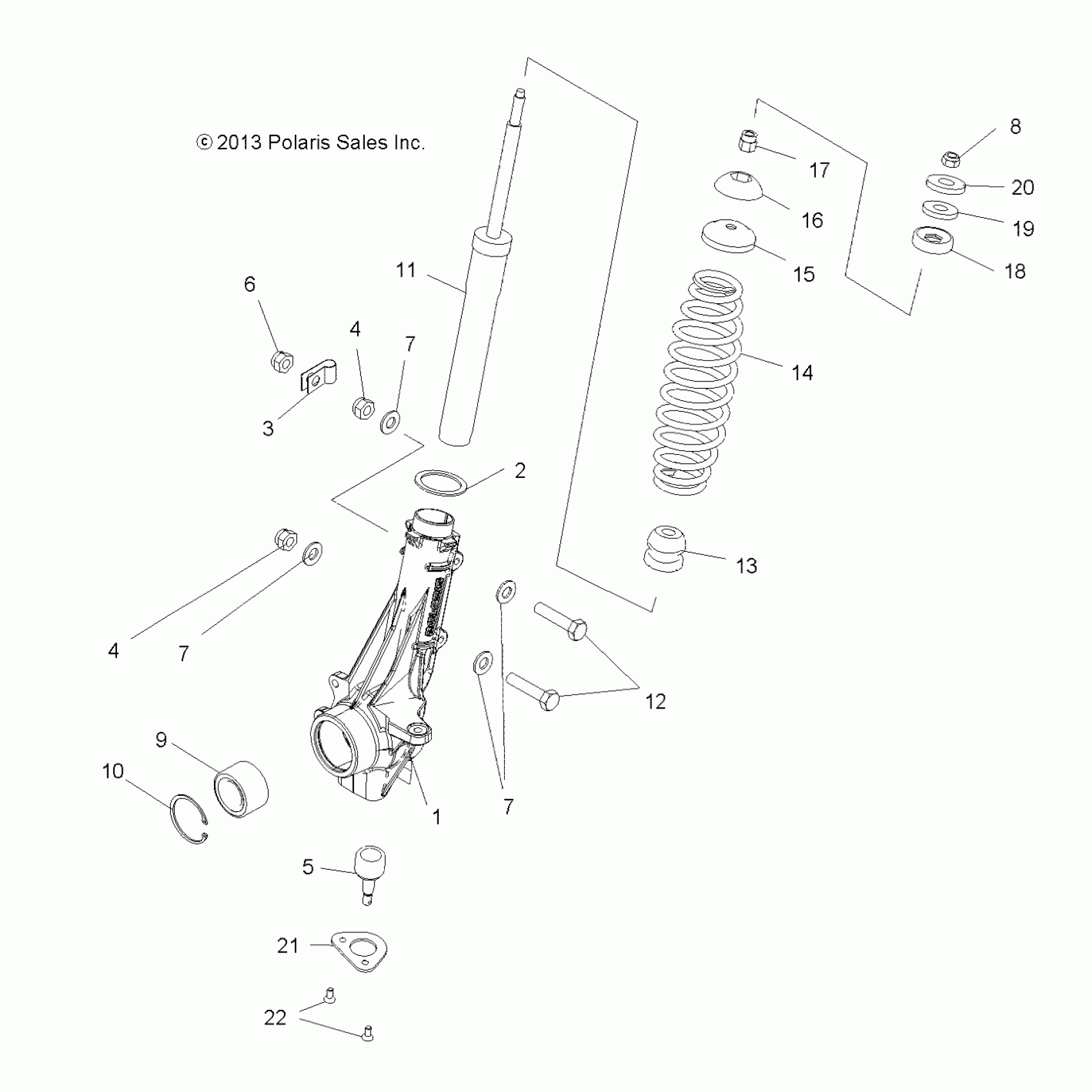

Polaris ACE 500 SOHC (R08) - A18DAA50B7 SUSPENSION, FRONT STRUT - A18DAA50B7 (49ATVSTRUT14SP325) Diagram
#
Description
Price
1
ASM., HUBSTRUT, LH, 4X4 [Incl. 5,9,10,21,22]
1823974
$391.99
1
ASM., HUBSTRUT, RH, 4X4 [Incl. 5,9,10,21,22]
1823975
$391.99
2
WASHER-2.06X2.62X.105-Y
5211115
$3.99
3
CLAMP-CABLE
7080367
$2.39
4
NUT-5/16-18 NYLOK-Y
7542324
$1.49
4
NUT-5/16-18 NYLOK-Y
7542324
$1.49
5
BALL-JOINT,GREASELESS,STRUT
7061158
$75.99
6
NUT, NYLOK, THIN
7542344
$3.99
7
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
7
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
7
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
8
NUT-1/2-20 NYLOK,THIN HT-Y
7547104
$1.49
9
BEARING-WHEEL, 35X64X37MM
3514634
$39.99
9
BEARING-WHEEL,35X64X37MM HD [OPTIONAL]
3515088
$63.99
10
RING, RETAINING
7710507
$2.39
11
STRUT, FRONT
7041762
$123.99
12
BOLT
7512312
$1.49
13
BUMPER-MCU,17.8MM ID
5412665
$6.39
14
SPG-COMP,45-90#,13.51,3.7,M.BK
7044267-458
$91.99
15
RETAINER-SPRING,STRUT
5243364
$19.99
16
PIVOT-BALL,BOTTOM,DELRIN
5432871
$10.39
17
SPACER
5132062
$19.99
18
PIVOT-BALL,TOP,DELRIN
5432872
$10.39
19
SPACER-RUBBER
5810291
$3.99
20
WASHER
7555749
$1.49
21
BRACKET-BALL JOINT
5211121
$31.99
22
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$1.49
