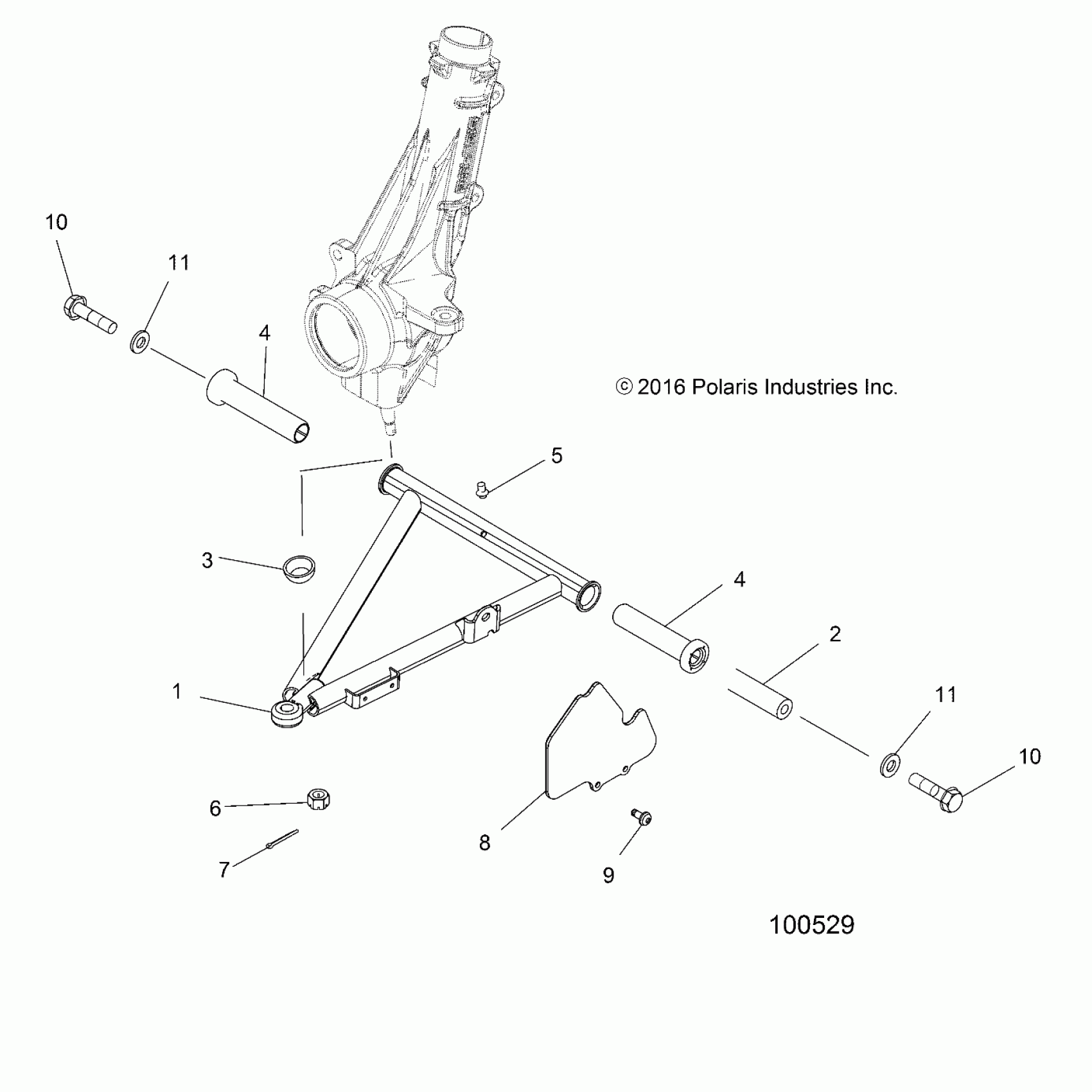

Polaris ACE 500 SOHC (R08) - A18DAA50B7 SUSPENSION, A-ARM and STRUT MOUNTING - A18DAA50B7 (100529) Diagram

WELD-A-FRAME,FLARED,LH,M.BLK

1543675-458

$224.99

WELD-A-FRAME,FLARED,RH,M.BLK

1543676-458

$224.99

SHAFT-A-ARM,C-BORE

5139929

$28.32

BOOT, BALL JOINT, GREASELESS

5412658

$4.84

BUSHING, A-ARM, LONG

5436973

$5.56

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.70

BUSHING, A-ARM, LONG

5436973

$5.56

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.70

Fitting, Lubrication

7080433

$1.19

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

Pin, Cotter

7661203

$1.19

SHIELD-CV,FRONT,BLK

5438641-070

$3.22

Screw

7512084

$1.19

SCR-3/8-24X1 3/4,HX,GR5,P30,Y

7520340

$3.17

SCR-3/8-24X1 3/4,HX,GR5,P30,Y

7520340

$3.17

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98
