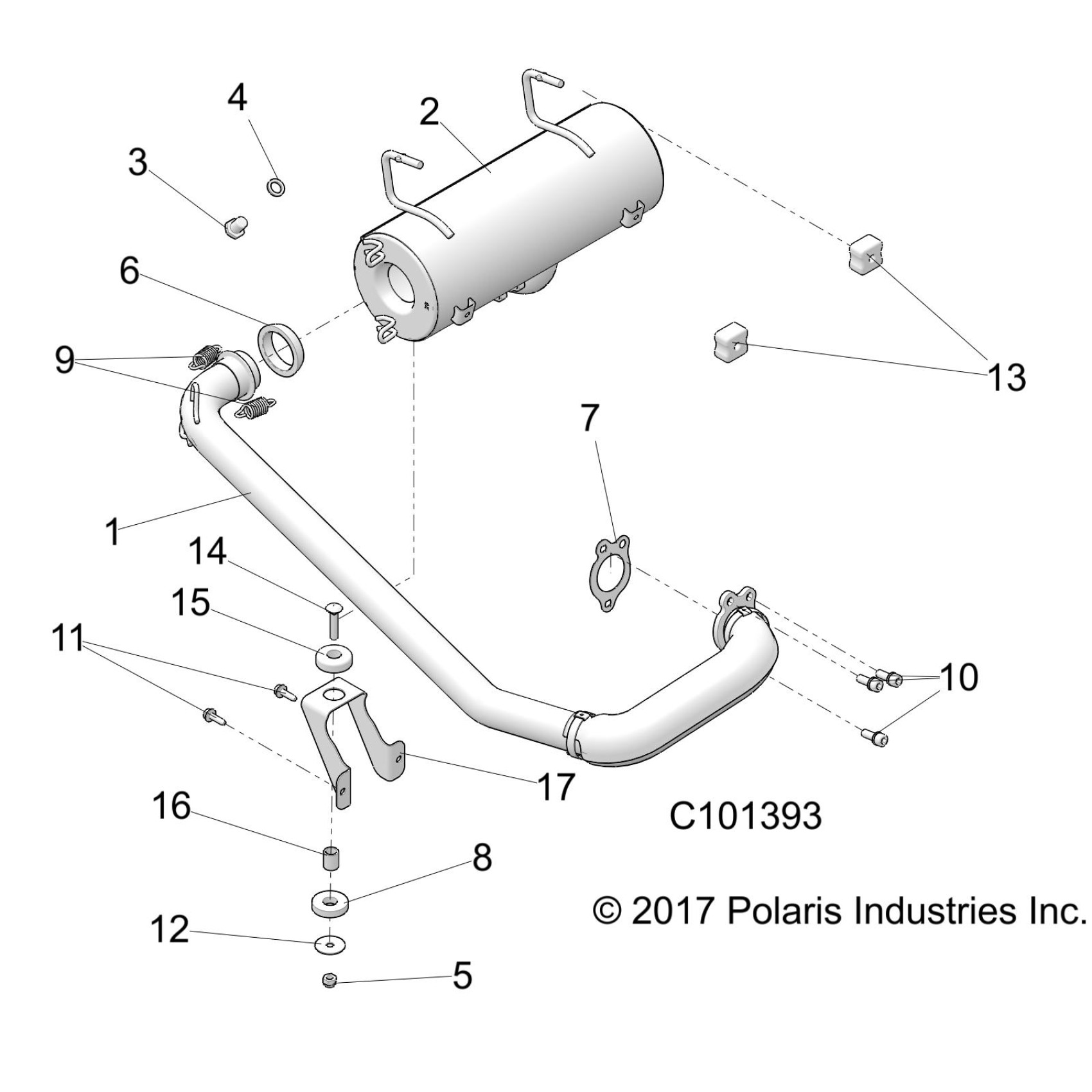

Polaris ACE 500 SOHC (R08) - A18DAA50B7 ENGINE, EXHAUST SYSTEM - A18DAA50B7 Diagram

Description

Price

ASM-EXHAUST PIPE,450

1262956

$466.39

WELD-EXHAUST SILENCER [INCL. 3,4]

1263118

$394.39

BOLT-1/2-20X5/8 HXHDCAP-GR5-P

7520756

$5.59

WASHER-CLEAN OUT .51X75X.09

7557077

$8.35

NUT-5/16-18 NYLOK-Y

7542324

$1.49

SEAL

3610181

$31.99

GASKET-EXHAUST SEALING

5263806

Unavailable

WSHR-15.4X38.1X7.9 RUBBER

5414945

$4.79

SPRING-EXHAUST

7041789

$7.99

SCR-M8X1.25X22,HX/SO

7518984

$7.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

WASHER

7555716

$1.59

GROMMET

5413383

$4.79

BOLT, CARRIAGE

7515316

$2.39

DAMPER-VIBRATION

5414946

$4.79

BUSHING

5010192

$6.39

MOUNT, EXHAUST, LOWER

5258177

$31.99
