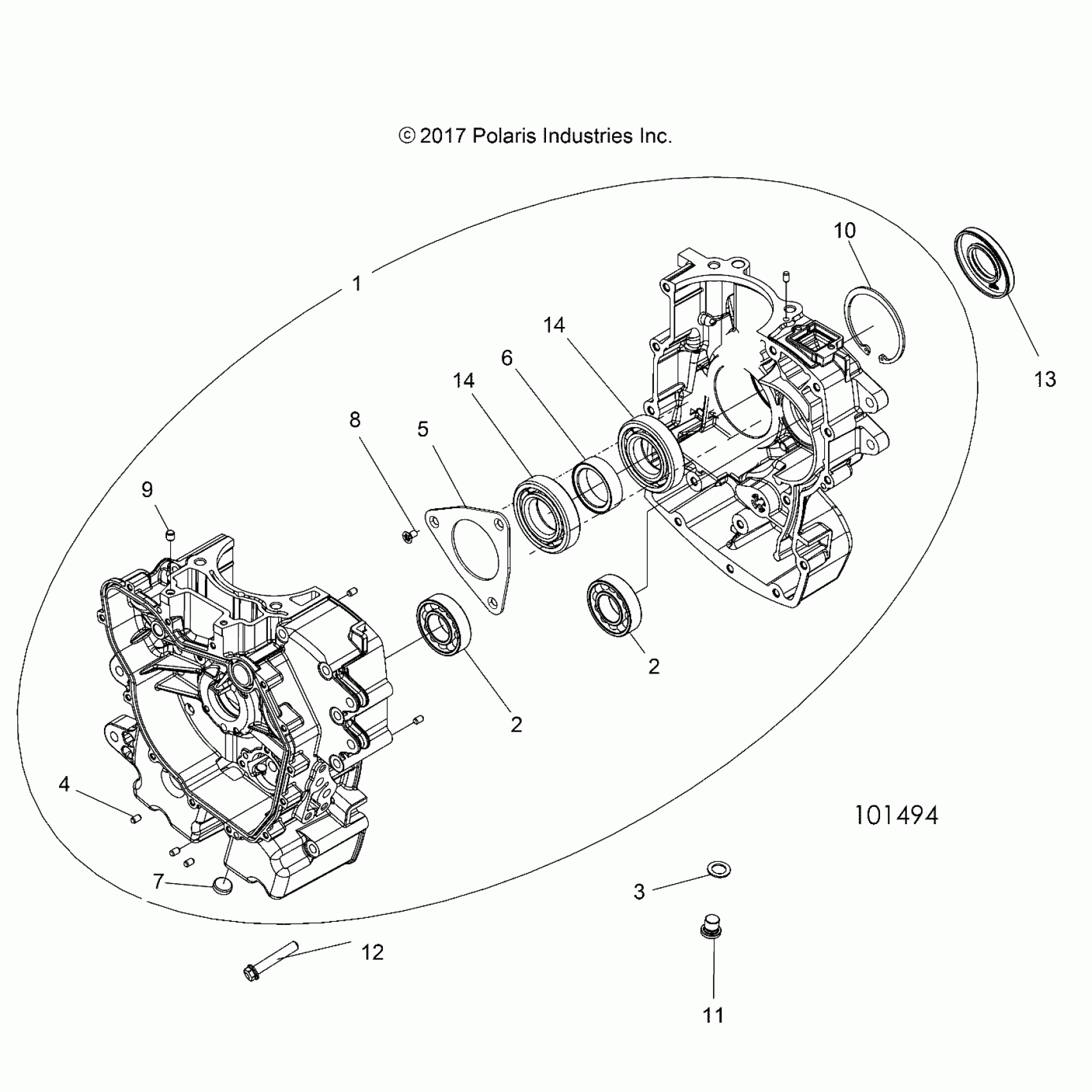

Polaris ACE 500 SOHC (R08) - A18DAA50B7 ENGINE, CRANKCASE - A18DAA50B7 (101494) Diagram

#

Description
Price

1

K-CRANKCASE 570 [INCL. 1-10,12,14]

2206362

$1,349.99

2

BEARING, BALL

3514426

$19.84

2

BEARING, BALL

3514426

$19.84

3

WASHER, COPPER

5812232

$1.59

4

PIN-DOWEL,M6X10

5136879

$2.38

5

PLATE-BEARING RETAINER

5256915

$24.27

6

SPACER-BRG,MACH

5140919

$23.81

7

PLUG-EXPANSION,19MM

7051530

$8.08

8

SCR-M6X12 TORX DR FH

7517598

$11.33

9

DWL-HOL,M8X8

7661977

$8.08

10

RING-SNAP,80X2.5

7710660

$4.03

11

PLUG, SOCKET

7052306

$15.37

12

SCREW

7520104

$5.56

13

SEAL-CRANKSHAFT

3610171

$48.56

14

BEARING, BALL

3514389

$32.54

14

BEARING, BALL

3514389

$32.54
