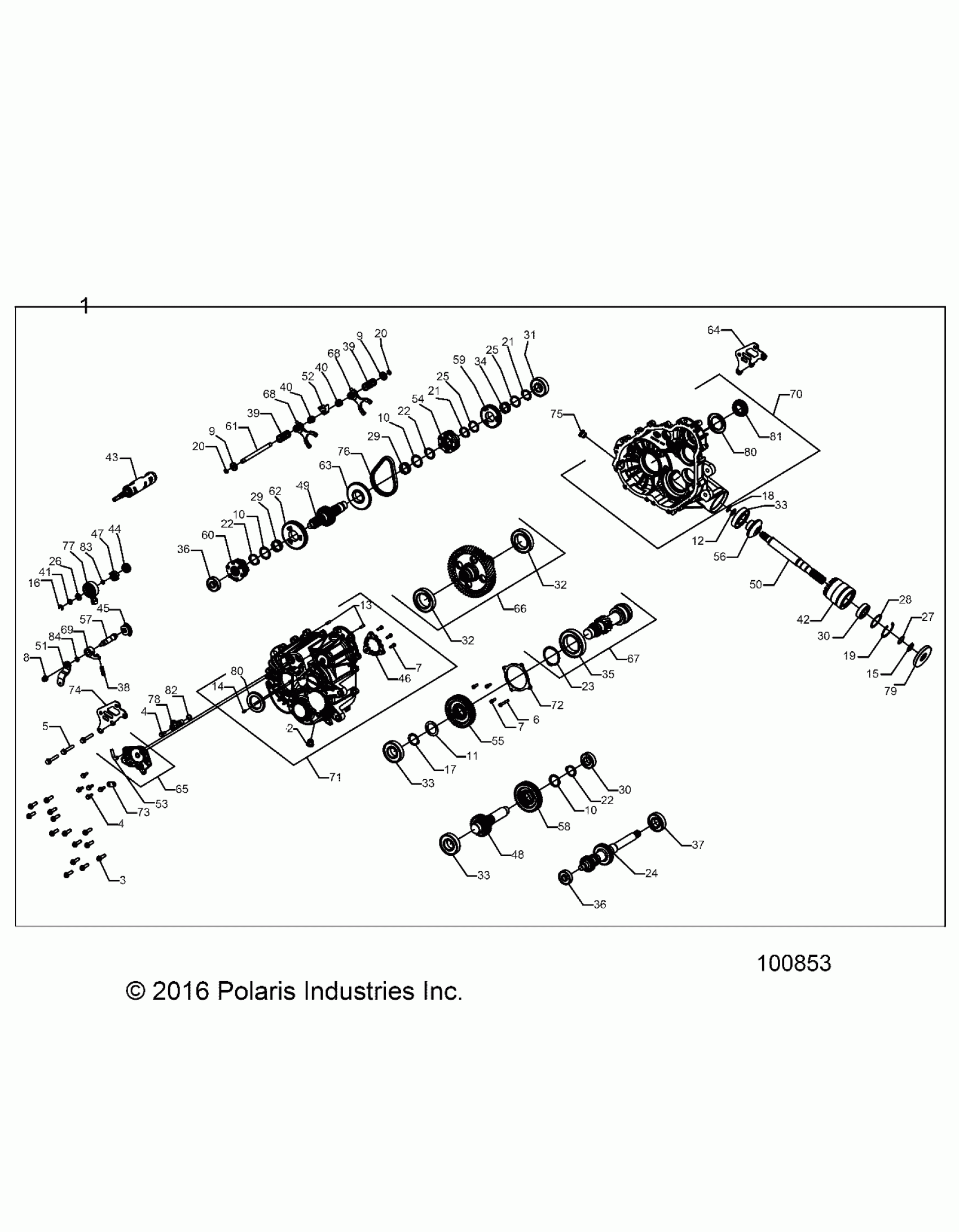

Polaris ACE 500 SOHC (R08) - A18DAA50B7 DRIVE TRAIN, MAIN GEARCASE - A18DAA50B7 (100853) Diagram

#

Description
Price

1

ASM-GEARCASE,30MM BLW [INCL. ALL]

1333732

Unavailable

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

5

SCREW HEX FLANGE M8 X 50

3235207

$10.32

6

SCREW, SOCKET HEAD CAP, M6 X 1 X 40

3235208

$11.11

7

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

3235332

$3.97

7

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

3235332

$3.97

8

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$7.94

9

WASHER-CUP

3234091

$9.52

9

WASHER-CUP

3234091

$9.52

10

WASHER, 32.3 X 42 X 1.5

3235211

$10.32

10

WASHER, 32.3 X 42 X 1.5

3235211

$10.32

10

WASHER, 32.3 X 42 X 1.5

3235211

$10.32

11

WASHER, 35.6 X 50 X 1.5

3235212

$13.49

12

WASHER, 17.3 X 25 X 1.5

3235213

$15.87

13

PIN, DOWEL 6 X 20

3234330

$7.14

14

PIN, SPRING SLOTTED 6 X 12

7043746

$8.08

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

16

RING, SNAP

3233834

$10.32

17

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.46

18

RING, RETAINING EXTERNAL SHR-66

3234318

$3.17

19

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

21

RING, RETAINING

3234205

$11.11

21

RING, RETAINING

3234205

$11.11

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING, RETAINING VSH-237

3235216

$10.32

24

SHAFT, INPUT, HELICAL

3235974

$309.83

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

26

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

27

SHIM, 1.18 OD X 0.995 ID

3234272

$36.41

28

SHIM, 2.04 OD X 1.63 ID

3234273

$13.75

29

BEARING, NEEDLE

3233014

$43.65

29

BEARING, NEEDLE

3233014

$43.65

30

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

30

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

31

BEARING

3233020

$47.62

32

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

32

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

34

BEARING, NEEDLE CAGE ASSY

3233384

$31.75

35

BEARING, BALL 6012 C3 60 X 95 X 18

3235218

$59.52

36

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.87

36

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.87

37

BEARING, BALL 6206RSH2 STD 30 X 62 X 16

3235496

$37.99

38

SPRING, COMPRESSION 0.36 OD X 1.125

3233830

$10.32

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

40

SPRING, COMPRESSION 0.46 I.D. X 0.73

3234089

$28.32

40

SPRING, COMPRESSION 0.46 I.D. X 0.73

3234089

$28.32

41

SPRING, WASHER

3235327

$9.52

42

TUBE, SNORKEL MACH

3234278

$101.17

43

DRUM-SHIFT,MACH.(255289)

3235463

$279.27

44

GEAR, SECTOR 16T

3233839

$36.41

45

GEAR-SECTOR,31T

3233832

$36.41

46

PLATE, PARK 12-FACE

3235456

$40.46

47

DETENT STAR

3235603

$40.46

48

SHAFT, IDLER 29T

3235223

$128.24

49

SHAFT-REVERSE,27T(285878)

3235380

$246.89

50

SHAFT, FRONT OUTPUT

3235394

$133.56

51

BELLCRANK DROID

3235629

$62.92

52

COLLAR-SHIFT

3234073

$31.75

53

TUBE, VENT 90 -1/4" HOSE

3234230

$10.51

54

ENGAGEMENT DOG, 6-FACE

3235233

$129.51

55

GEAR, 46T STAGE 3

3235236

$128.24

56

GEAR, 13T SNORKEL

3235237

$156.74

57

SHAFT-SHIFT(352973)

3235238

$42.74

58

GEAR, 46T STAGE 2

3235381

$156.74

59

GEAR, 49T

3235396

$133.56

60

SHIFT DOG, PARK

3235457

$145.70

61

RAIL, SHIFT SHAFT

3235542

$28.32

62

GEAR, LOW 61T

3235561

$99.74

63

SPROCKET, 48T 6-FACE

3235755

$80.94

64

WELDMENT, REAR MOUNT BRACKET

3236001

Unavailable

65

SUBASSEMBLY, SECTOR COVER

3235713

$135.54

66

SUBASSEMBLY, OUTPUT

3235335

$408.49

67

SUBASM.,SHAFT

3235336

$446.49

68

SUBASSEMBLY, SHIFT FORK

3235454

$89.03

68

SUBASSEMBLY, SHIFT FORK

3235454

$89.03

69

SUBASSEMBLY, PAWL DETENT, ROLLER

3235452

$36.41

70

SUBASSEMBLY, LH CASE

3235491

$636.49

71

SUBASSEMBLY, RH COVER

3235756

$549.99

72

COVER-BEARING,CNTR DR.

3235241

$48.56

73

BRACKET, WIRE HARNESS

3235350

$8.89

74

BRACKET, REAR MOUNT

3235998

Unavailable

75

PLUG, M18 X 1.5

3234755

$27.78

76

CHAIN,SIL 101,.25P X .40W X58L

3234737

$169.98

77

SWITCH, ROTARY 2 PIN RESISTIVE

7661999

$117.37

78

SENSOR-SPEED,TRANS

4013908

$109.27

79

SEAL, TRIPLE LIP 25 X 80 X 10

3234113

$36.41

80

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$32.37

80

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$32.37

81

SEAL, TRIPLE LIP, 30 X 47 VITON

3235495

$47.49

82

O-RING

3234302

$7.27

83

O-RING, -12 VITON

3233836

$6.87

84

O-RING, -14 VITON

3233828

$6.87
