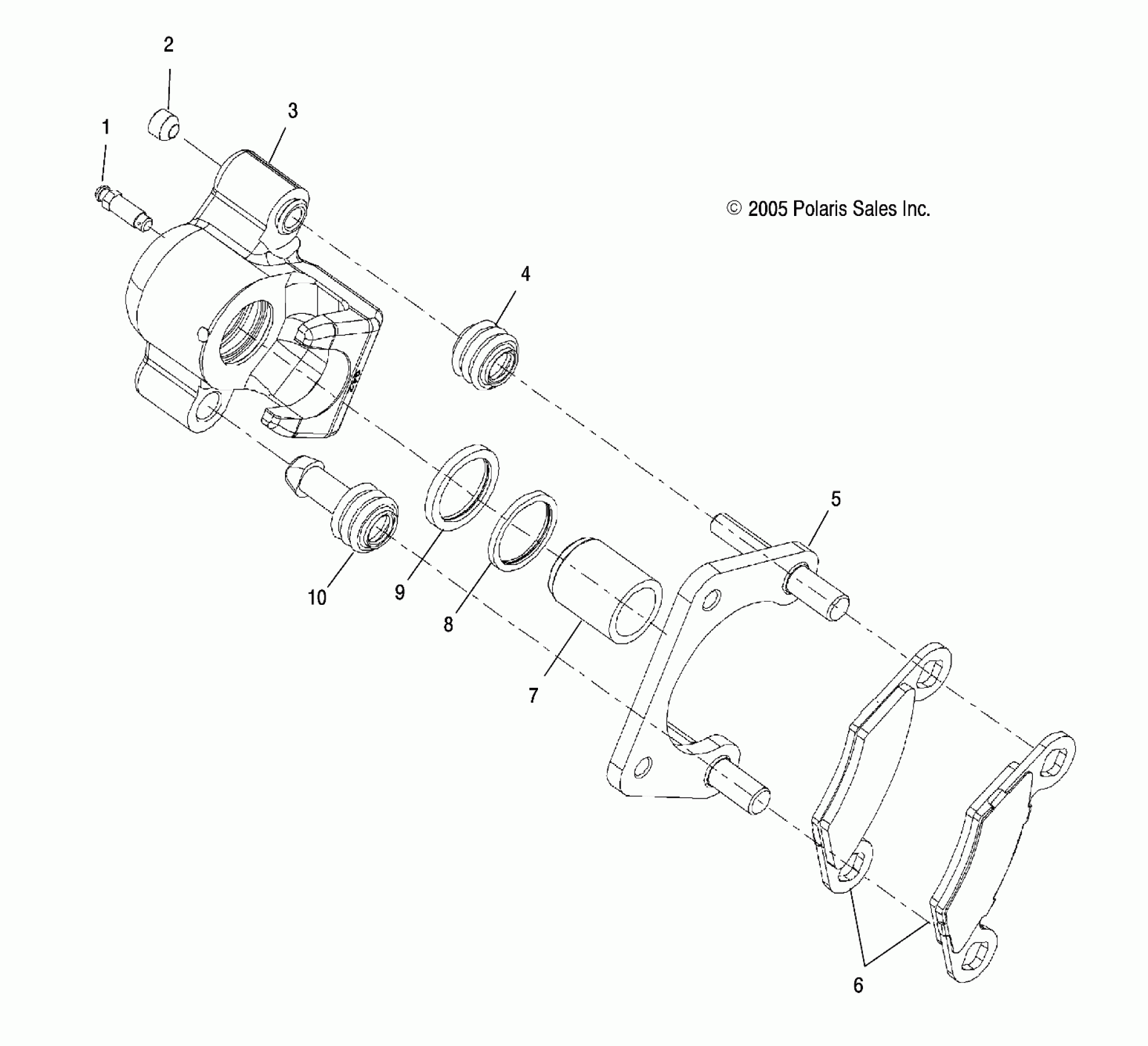

Polaris ACE 500 SOHC (R08) - A18DAA50B7 BRAKES, REAR CALIPER - A18DAA50B7 (4999204069920406B10) Diagram

#

Description

Price

-

ASM., CALIPER, LH,

1911715

$195.99

-

ASM., CALIPER, RH

1911716

$195.99

1

SCREW, BLEEDER

7081343

$5.59

2

SCREW, SOCKET SET

7518863

$9.59

3

CALIPER, BRAKE, LH

-------

Unavailable

3

CALIPER, BRAKE, RH

-------

Unavailable

4

BOOT-PIN SEAL

5412506

$3.19

5

ASM-CALIPER MOUNT,REAR,METRIC

1911375

$35.99

6

KIT-BRAKE PAD ASM

2202412

$55.99

6

K-ASM, HD, PAD, BRK, S. BORE [OPTION][2 PADS PER KIT]

2208935

$63.99

7

PISTON, BRAKE, LONG

5132294

$54.04

8

SQUARE RING-MOLDED (.094)

5410779

$10.51

9

RING, SQUARE, MOLDED

5410780

$10.51

10

BOOT-PIN BUSHING

5412505

$3.19
