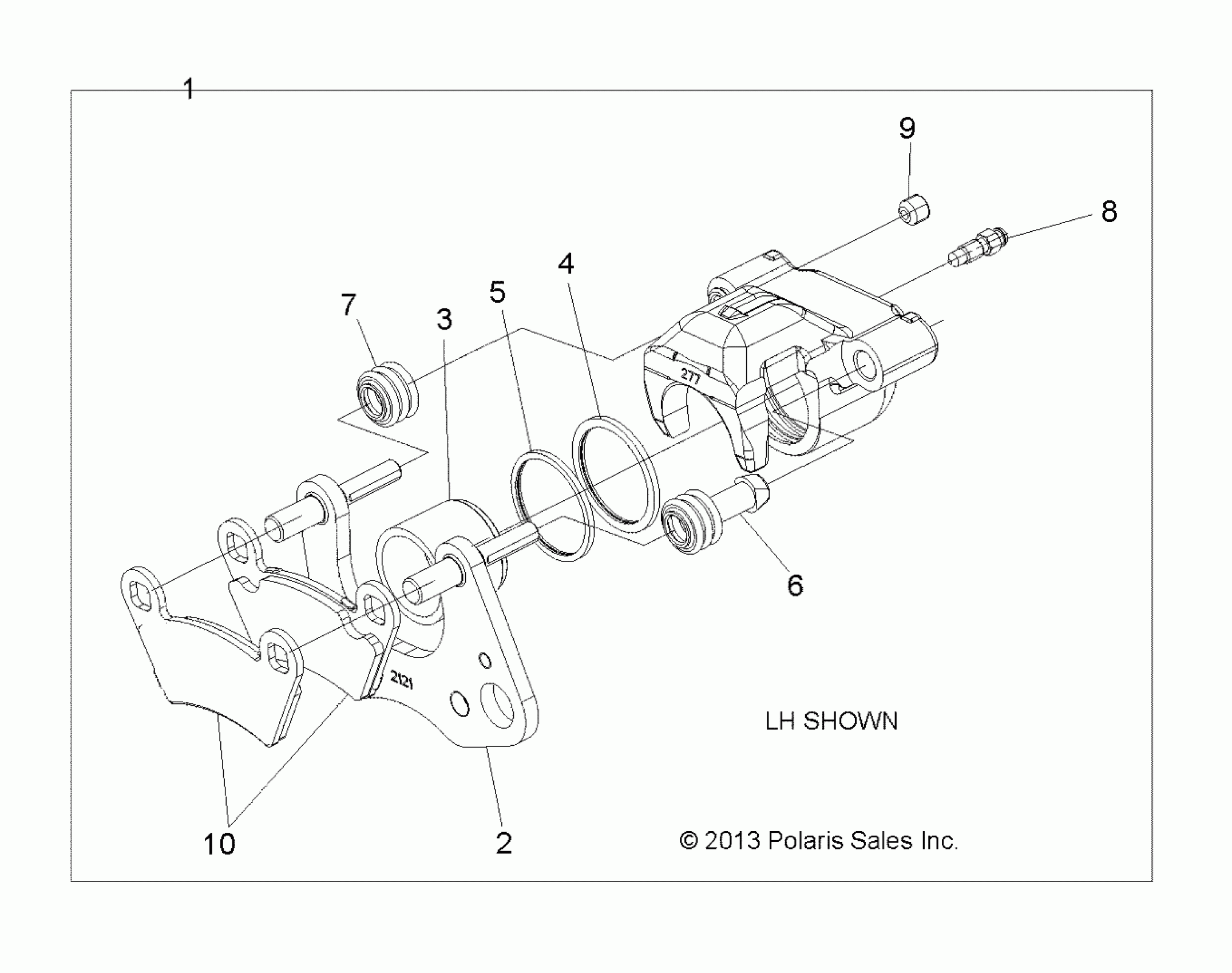

Polaris ACE 500 SOHC (R08) - A18DAA50B7 BRAKES, CALIPER, FRONT - A18DAA50B7 (49RGRCALIPER14570) Diagram

#

Description

Price

1

ASM., CALIPER, BRAKE, FRONT, LH

1912119

$171.99

1

ASM., CALIPER, BRAKE, FRONT, RH

1912120

$171.99

2

ASM-CALIPER MNT,FRONT,1.5,MET

1912121

$51.99

3

PISTON, BRAKE

5132829

$39.99

4

SEAL, CALIPER, INNER

5412010

$8.40

5

SEAL, CALIPER, OUTER

5412011

$7.19

6

BOOT-PIN BUSHING

5412505

$3.19

7

BOOT-PIN SEAL

5412506

$3.19

8

SCREW, BLEEDER

7081343

$5.59

9

SCREW, SOCKET SET

7518863

$9.59

10

KIT-BRAKE PAD,ASM,1.5

2202413

$55.99

10

K-ASM,HD,PAD, BRK,1.5 (HEAVY DUTY) �OPTION][2 PADS PER KIT]

2208934

$63.99
