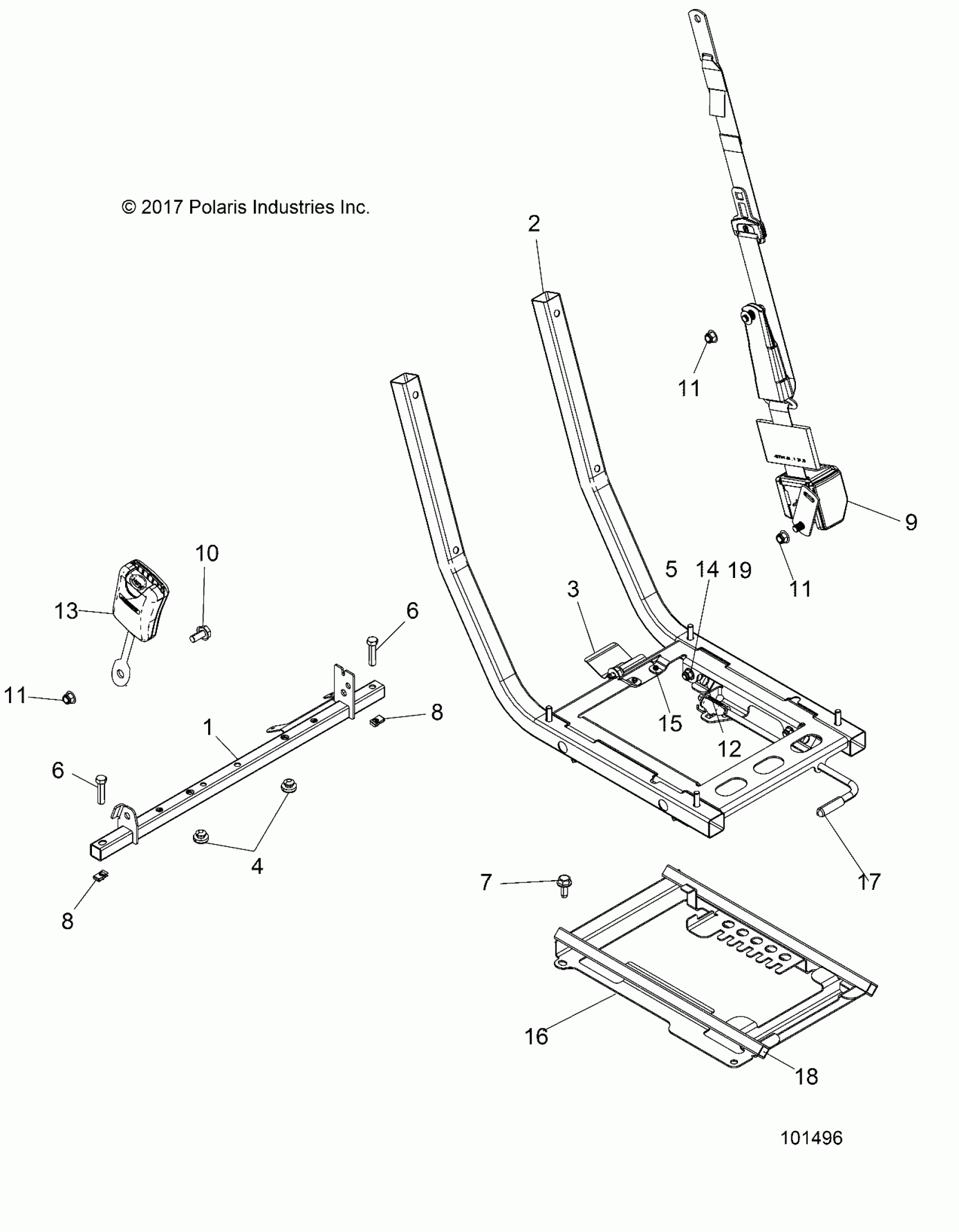

Polaris ACE 500 SOHC (R08) - A18DAA50B7 BODY, SEAT MOUNTING AND BELT - A18DAA50B7 (101496) Diagram

#

Description
Price

1

WELD-SEAT BASE,REAR,BACK,M.BLK

1020911-458

$215.59

2

WELD-SEATBASE ADJUSTER,BLK

1023702-458

$131.99

3

LATCH-SEAT,SPRING

5265087

$48.39

4

BUMPER-RUBBER

5412067

$3.99

5

ROLLER-SEAT

5454929

$14.39

6

SCREW, HXFL

7519906

$4.79

6

SCREW, HXFL

7519906

$4.79

7

BOLT, FLANGE

7518555

$2.39

8

NUT, U

7547748

$4.79

8

NUT, U

7547748

$4.79

9

ASM-SEAT BELT,3PT

2635049

$175.99

10

SCREW

7519072

$5.59

11

NUT

7540000

$3.99

11

NUT

7540000

$3.99

11

NUT

7540000

$3.99

12

CLIP-DART,10.8 (NYL)

5451583

$3.99

13

BUCKLE-SEATBELT,SWITCH

2635937

$35.19

13

CLIP-FIR,HOLE6.35MM

7082134

$3.99

14

NUT-HXFL-M6X1.0 8 ZC NYL

7547487

$2.39

15

RIVET-CHERRY Q-3/16X.325-Z

7621453

$3.19

16

WELD-SEAT,MNT,E-COAT [TO 3/19/2018]

1023701-329

Unavailable

16

WELD-SEAT,MNT,E-COAT [FROM 3/19/2018]

1024441-329

$63.99

17

CAP-LEVER

5451392

Unavailable

18

CAP PLUG

5454698

$3.99

19

SCR-SHS-M6X1.0-M8X30

7520838

$10.39
