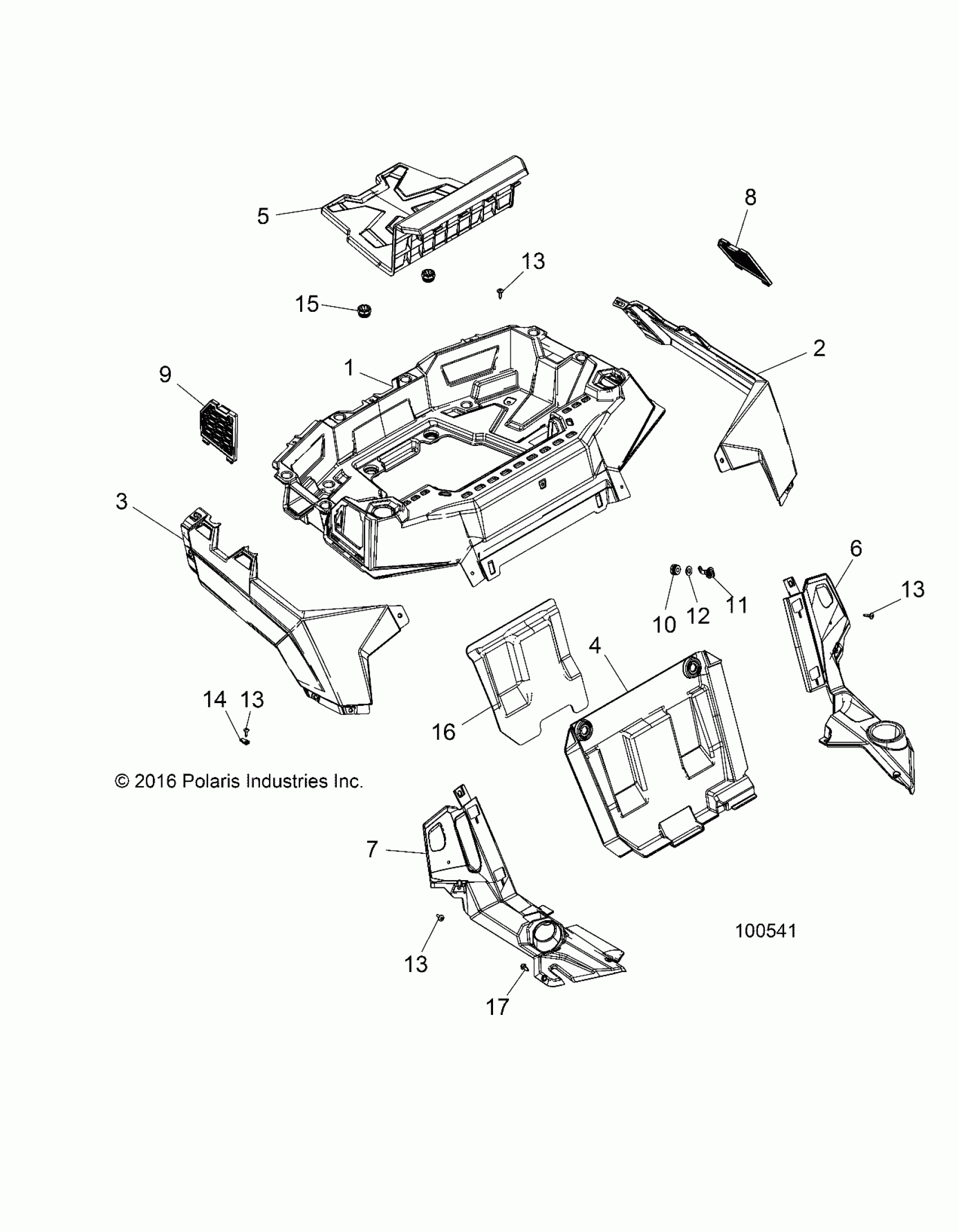

Polaris ACE 500 SOHC (R08) - A18DAA50B7 BODY, REAR RACK AND FENDERS - A18DAA50B7 (100541) Diagram

BOX-CARGO,REAR,BLK

5454129-070

$264.99

FENDER-REAR,LH,INDY RED

5450076-293

Unavailable

FENDER-REAR,RH,INDY RED

5450077-293

Unavailable

ASM-PANEL,CLOSE-OFF [INCL. PANEL, SHIELD, LATCHES, GROMMETS, WASHERS]

2636632

$176.17

BOX-MAINT PANEL,REMOVABLE,BLK

5452377-070

$65.46

PANEL, UNDERSEAT COVER, LH, BLACK

5450299-070

$59.52

PANEL, UNDERSEAT COVER, RH, BLACK

5454089-070

$60.70

GRILL, INTAKE COVER, LH, BLACK

5450392-070

$54.99

GRILL, INTAKE COVER, RH, BLACK

5450393-070

$54.99

GROMMET-LATCH

5413428

$3.17

LATCH-1/4 TURN

5451143

$13.32

WASHER

7555919

$4.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

NUT, U-TYPE

7547674

$1.19

GROMMET

5412507

$6.35

SHIELD-CLOSE OFF PANEL

5814322

$44.51

Rivet

7661855

$1.19
