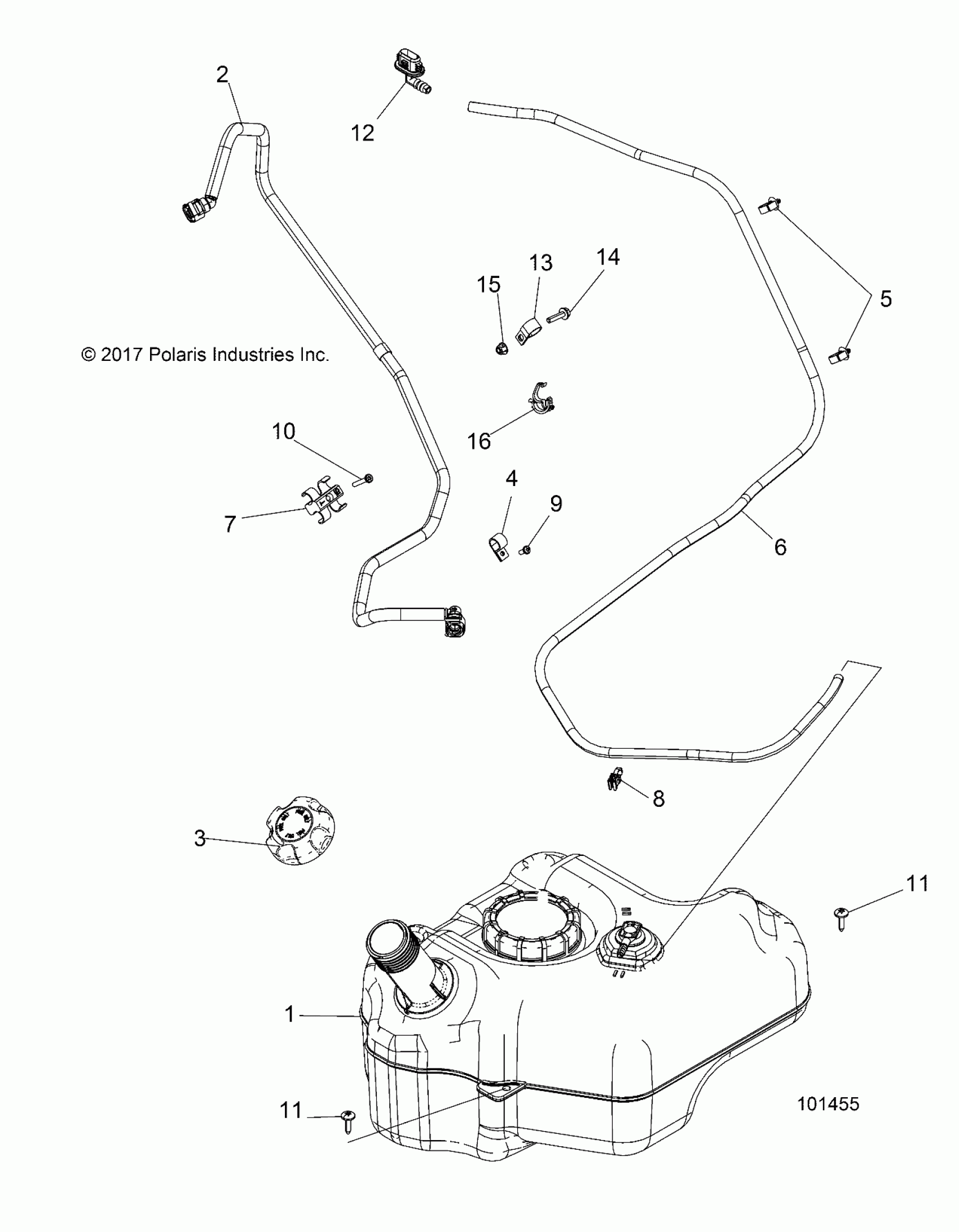

Polaris ACE 500 SOHC (R08) - A18DAA50B7 BODY, FUEL TANK - A18DAA50B7 (101455) Diagram

#

Description
Price

1

FUEL PUMP,SERVICE KIT,ACE [INCL. PUMP, GASKET, NUT, INSTRUCTIONS]

2207669

Unavailable

1

ASM-FUEL TANK

2521691

$928.19

1

ASM-FUEL PUMP

2521693

Unavailable

2

ASM-FUEL LINE,RAIL

2521899

$82.29

3

CAP-GAS TANK

5439075

$23.99

4

CLAMP, CABLE

7080499

$5.59

5

CLIP, ROUTING, HINGED

7670116

$5.59

6

FUEL LINE

8450040-600

$68.79

7

T-CLIP, T15

7081689

$7.19

8

STRAP, CABLE TIE W/EDGE CLIP

7082038

$6.39

9

SCREW

7512024

$4.79

10

SCR-10-24X1 PN TRX TFS STL-Y

7518552

$3.99

11

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

11

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

12

FITTING-VENT LINE,90

5453464

$5.59

13

CLAMP-HOSE,.625 DIA VNL COATED

7080880

$5.59

14

SCR-HXFL-M6X1.0X25 8.8 RIE

7518576

$3.19

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

16

CLIP-HARNESS 3-13MM INTERLCK

7081871

$3.99
