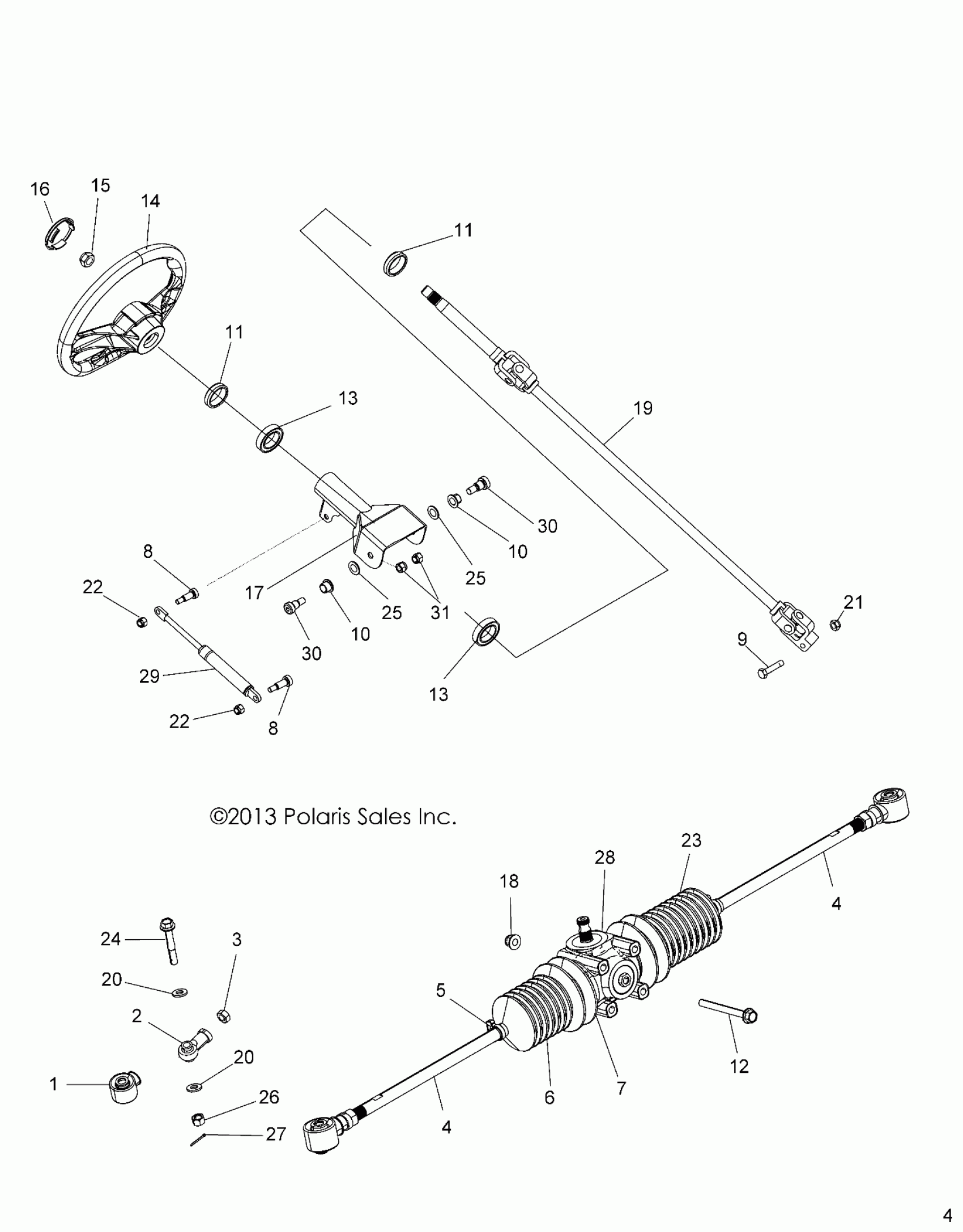

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 STEERING, STEERING ASM. - A16DAA32A1/A7 (49ATVSTEERING14SP325) Diagram

#

Description
Price

1

BOOT, SEAL, ROD END

----

Unavailable

2

Rod End

7061054

$56.65

3

Nut, Jam, LH

7547028

$2.38

4

TIE ROD, INNER

----

Unavailable

4

TIE ROD, INNER

----

Unavailable

5

CLAMP, BOOT, SMALL

7080978

$2.38

6

BOOT, STEERING RACK

5415572

$56.99

7

CLAMP, BOOT, LARGE

7080979

$5.56

8

BOLT, SHOULDER

7518786

$2.38

8

BOLT, SHOULDER

7518786

$2.38

9

SCREW

7518644

$4.76

10

BUSHING, TILT STEERING

5439154

$3.17

10

BUSHING, TILT STEERING

5439154

$3.17

11

BUSHING-STEERING

7556675

$15.19

11

BUSHING-STEERING

7556675

$15.19

12

SCREW

7519217

$1.59

13

BEARING-STEERING

3514686

$9.52

13

BEARING-STEERING

3514686

$9.52

14

WHEEL-STEERING, 14"

1823623

$133.56

15

NUT

7547506

$4.99

16

CAP-STEERING WHEEL

5436536

$32.37

17

ASM., TUBE, PIVOT, BLACK [INCL. 13]

1017621

$169.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

19

SHAFT, STEERING

1824020

$188.79

20

Washer, Flat

7556099

$1.59

20

Washer, Flat

7556099

$1.59

21

NUT, NYLOK

7547385

$1.19

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

23

BOOT, STEERING RACK

5415572

$56.99

24

Bolt

7517909

$5.56

25

WASHER

7555919

$4.99

25

WASHER

7555919

$4.99

26

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

27

Pin, Cotter

7661203

$1.19

28

ASM., GEAR BOX, STEERING [INCL. 2-7,23]

1824019

$689.99

29

ASM., SHOCK, TILT STEERING

7044420

$84.99

30

SCREW

7519355

$10.32

30

SCREW

7519355

$10.32

31

NUT, NYLOK

7547442

$3.97
