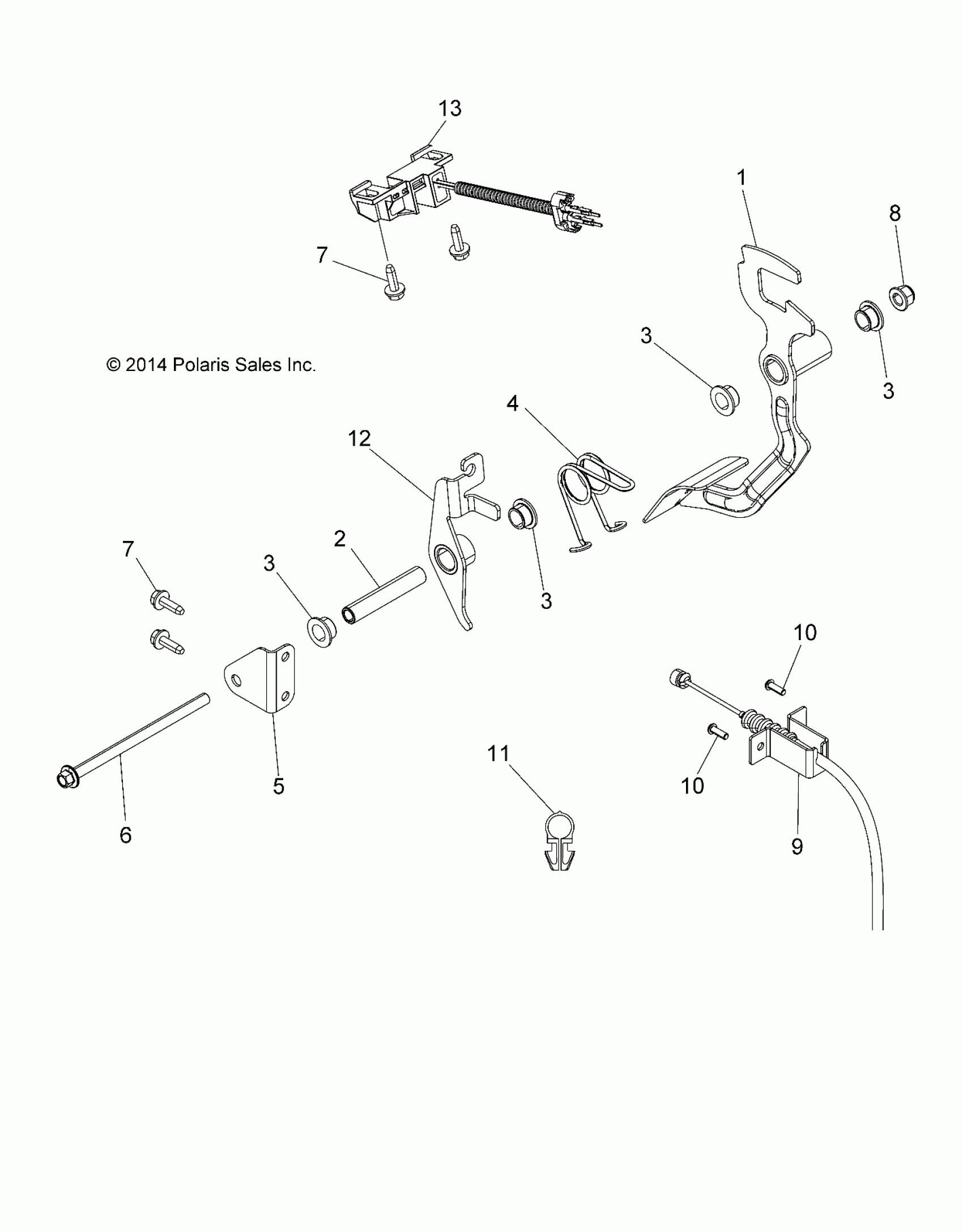

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 ENGINE, THROTTLE PEDAL - A16DAA32A1/A7 (49ATVTHRPEDAL15325) Diagram

#

Description
Price

1

PEDAL, THROTTLE,

1021045

$51.99

2

TUBE, PIVOT

5138733

Unavailable

3

BUSHING, PEDAL PIVOT

5433189

$3.99

3

BUSHING, PEDAL PIVOT

5433189

$3.99

3

BUSHING, PEDAL PIVOT

5433189

$3.99

3

BUSHING, PEDAL PIVOT

5433189

$3.99

4

SPRING, ACCELERATOR, HEAVY

7044339

Unavailable

5

BRACKET, SUPPORT

5257105

Unavailable

6

SCREW

7517719

$57.19

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

CLIP-SNAP IN,.375

7080756

$4.79

9

CABLE, THROTTLE

7082119

$79.99

10

SCREW

7515177

$3.19

10

SCREW

7515177

$3.19

11

CLIP, SNAP IN

7080756

$4.79

12

PEDAL, THROTTLE, OUT, TRS

1021046

Unavailable

13

SENSOR, VANE

4014934

$83.99
