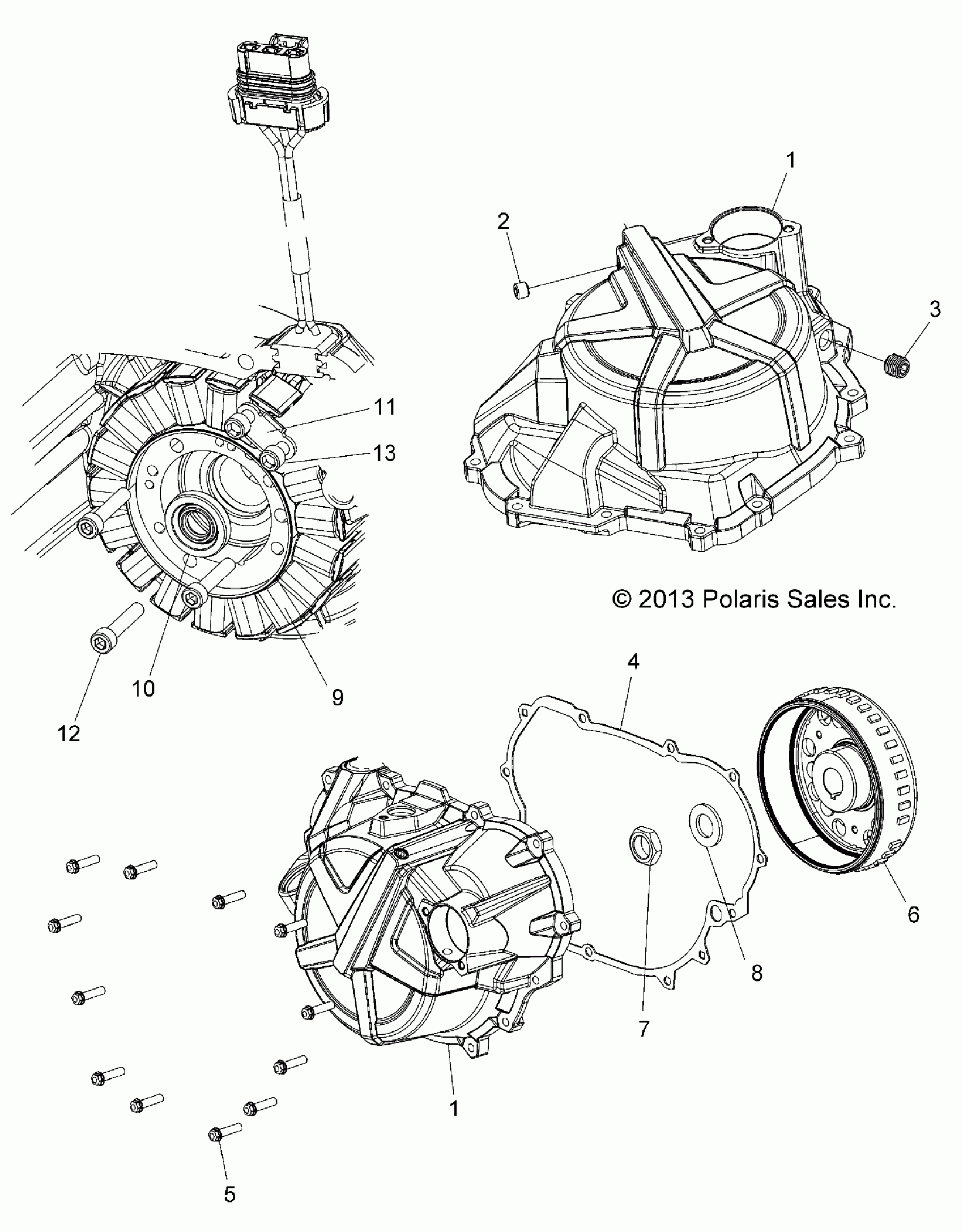

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 ENGINE, STATOR COVER AND FLYWHEEL - A16DAA32A1/A7 (49ATVFLYWHEEL14SP325) Diagram

#

Description
Price

1

ASM., COVER, IGNITION W/PLUGS [INCL. 2,3]

1204705

Unavailable

1

ASM., COVER, IGNITION W/PLUGS [INCL. 2,3]

1204705

Unavailable

2

PLUG

7052337

$3.22

3

PLUG

7518835

$5.59

4

GASKET, COVER, MAG

5813833

$51.99

5

SCREW

7519754

$3.99

6

FLYWHEEL

4014404

$494.99

7

NUT-HEX,M18X1.5 4 JAM,RH

7547488

$7.19

8

WASHER

7556878

$3.99

9

STATOR,560W

4014406

$467.99

10

SEAL, CRANK, INLET, MISALIGNMENT

5414451

$15.99

11

GUIDE, STATOR LEAD

5256308

$11.99

12

SCREW

7519058

$3.99

13

Screw

7517739

$9.59
