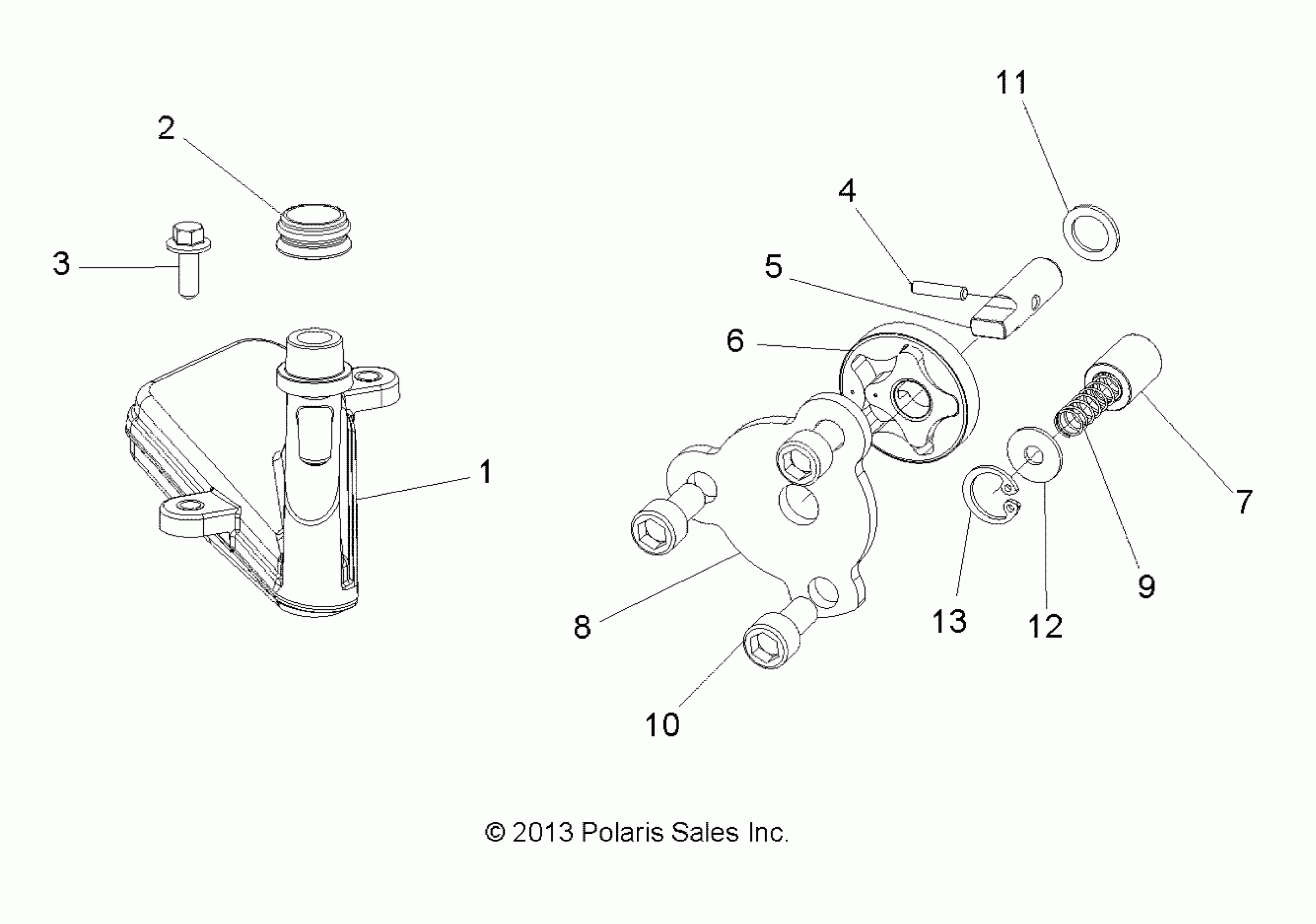

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 ENGINE, OIL PUMP - A16DAA32A1/A7 (49ATVOILPUMP14SP325) Diagram

#

Description
Price

1

ASM., OIL PICKUP

2521335

$52.60

2

SEAL, OIL, INLET

5414413

$12.13

3

BOLT

7516603

$10.32

4

PIN, SOLID

3022461

$49.99

5

SHAFT, OIL PUMP

5137879

$48.56

6

ASM., GEROTOR

1205072

$66.49

7

PISTON

5138070

$19.99

8

COVER, OIL PUMP

5257454

Unavailable

9

SPRING

7043875

$13.75

10

Screw

7517739

$10.46

11

WASHER

7556726

$14.99

12

WASHER

7556756

$3.97

13

RING, RETAINING

7710715

$5.65
