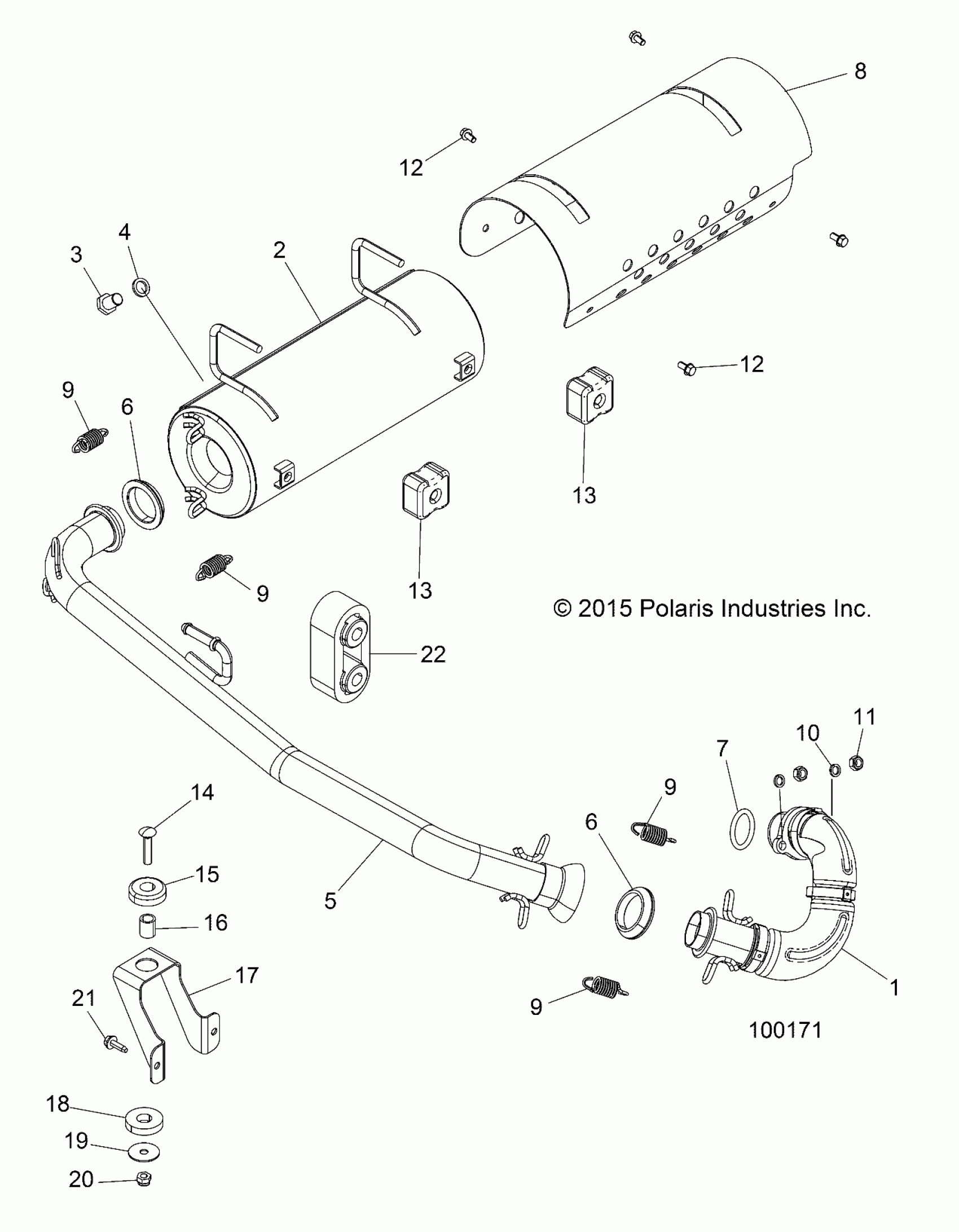

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 ENGINE, EXHAUST SYSTEM - A16DAA32A1/A7 (100171) Diagram

#

Description
Price

1

ASM., HEADPIPE

1262874

Unavailable

2

SILENCER, EXHAUST, POWDER BLACK

1262405-489

$266.65

3

BOLT

7512666

$2.38

4

WASHER, CLEAN OUT

7556230

$1.19

5

PIPE, POWDER BLACK

1262406-489

$213.87

6

SEAL

5243517

$16.17

6

SEAL

5243517

$16.17

7

GASKET, SEALING

5256452

$5.65

8

SHIELD, SILENCER

5257792

$48.56

9

SPRING-EXHAUST

7041789

$8.89

9

SPRING-EXHAUST

7041789

$8.89

9

SPRING-EXHAUST

7041789

$8.89

9

SPRING-EXHAUST

7041789

$8.89

10

Washer, Lock

7556111

$1.59

11

NUT

7547076

$2.60

12

Screw

7515197

$1.19

12

Screw

7515197

$1.19

13

GROMMET

5413383

$4.76

13

GROMMET

5413383

$4.76

14

BOLT, CARRIAGE

7515316

$2.38

15

DAMPER-VIBRATION

5414946

$4.84

16

BUSHING

5010192

$6.35

17

MOUNT, EXHAUST, LOWER

5258177

$32.37

18

WASHER, RUBBER

5414945

$4.76

19

WASHER

7555716

$1.59

20

NUT-5/16-18 NYLOK-Y

7542324

$0.79

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

22

MNT-ISOLATOR

5438965

$28.32
