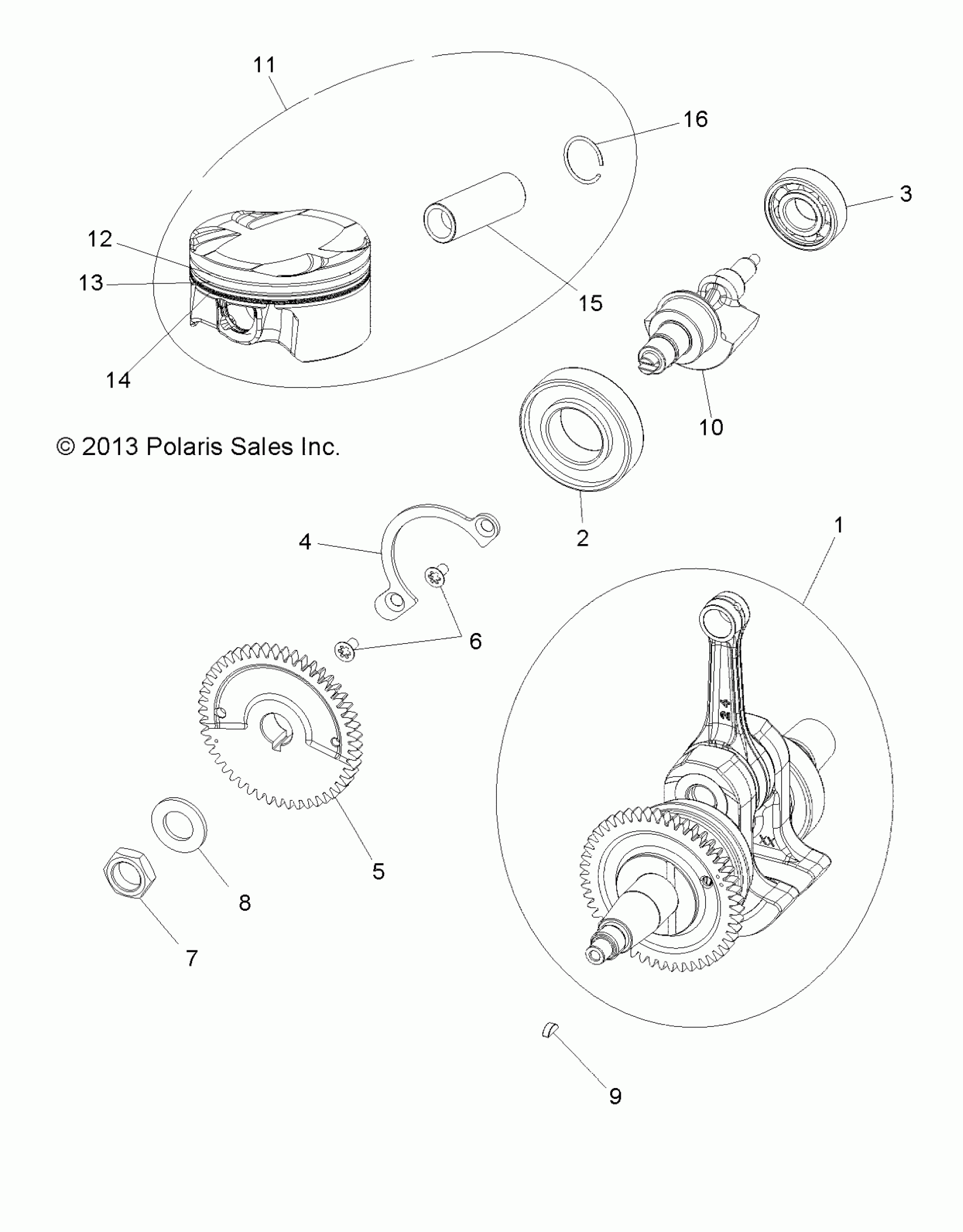

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT - A16DAA32A1/A7 (49ATVCRANKSHAFT14SP325) Diagram

#

Description
Price

1

BEARING, BALL [PTO END]

3585503

$31.75

1

ASM., CRANKSHAFT W/GEAR [INCL. CRANK ASM. AND GEAR]

1204878

Unavailable

2

BEARING, BALL

3514361

$31.75

3

BEARING, BALL

3514749

$31.75

4

PLATE, BEARING RETAINER

5137851

Unavailable

5

GEAR, DRIVEN, BALANCER

6230548

Unavailable

6

SCREW

7517598

$11.33

7

NUT-HEX,M18X1.5 4 JAM,RH

7547488

$7.14

8

WASHER

7556878

$3.97

9

KEY-WOODRUFF,4X5

7721122

$7.84

10

ASM., BALANCER SHAFT [INCL. PIN, SHAFT]

1204606

$214.99

10

SHAFT, BALANCER

5138050

$214.99

10

PIN, BALANCER SHAFT

7662032

$214.99

11

ASM., PISTON [INCL. RINGS, PIN, CLIPS]

3022533

$170.99

12

RING, PISTON, COMPRESSION, TOP

3022386

$28.56

13

RING, PISTON, COMPRESSION, SECOND

3022387

$38.08

14

RING, PISTON, OIL SCRAPER

3022388

$80.94

15

PIN, PISTON

3022512

Unavailable

16

CIRCLIP

7710673

$34.99
