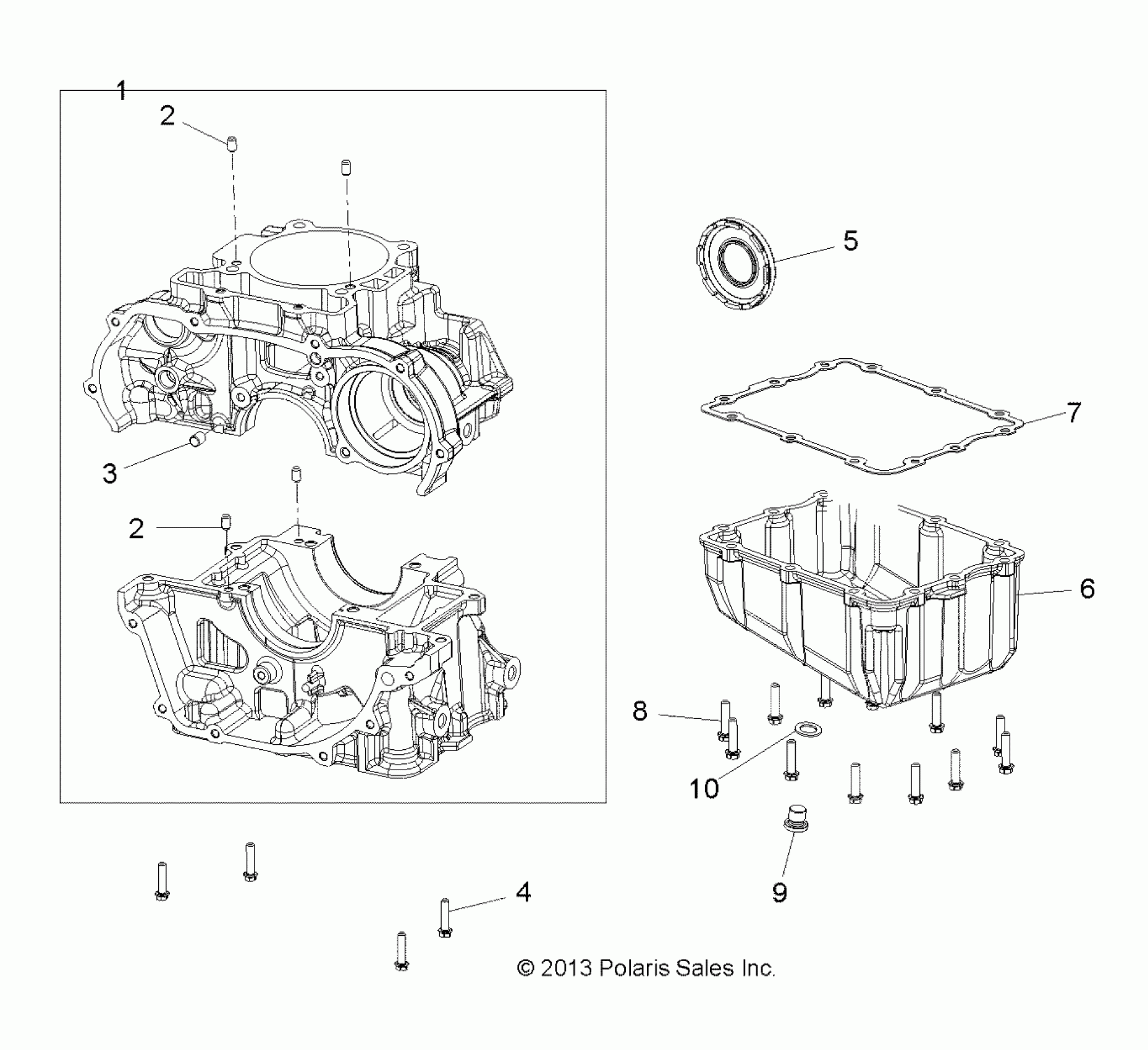

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 ENGINE, CRANKCASE AND OIL SUMP - A16DAA32A1/A7 (49ATVCRANKCASE14SP325) Diagram

#

Description
Price

1

KIT, CRANKCASE [INCL. UPPER AND LOWER CASES,2,3]

2205302

$484.99

2

PIN, DOWEL

5137611

$2.38

2

PIN, DOWEL

5137611

$2.38

3

DOWEL, HOLLOW

7662141

Unavailable

4

SCREW

7519754

$3.97

5

SEAL, CRANKSHAFT

5414325

$44.51

6

COVER, OIL SUMP

5138343

$51.59

7

GASKET, SUMP COVER

5813761

$16.17

8

SCREW

7519754

$3.97

9

PLUG, SOCKET

7052306

$15.37

10

WASHER, COPPER

5812232

$1.59
