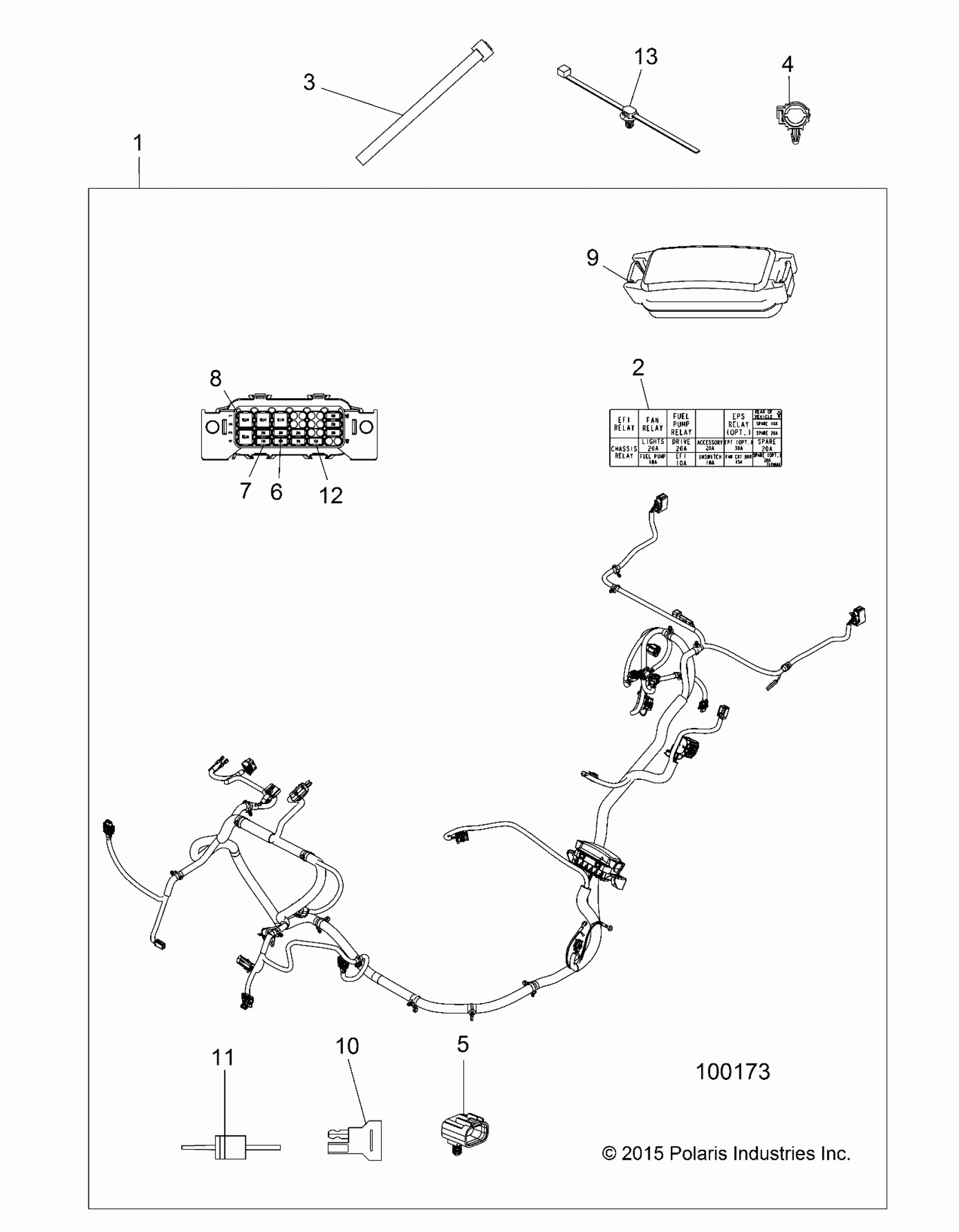

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 ELECTRICAL, WIRE HARNESS - A16DAA32A1/A7 (100173) Diagram

#

Description

Price

1

HARNESS-CHASSIS,ACE 325/570

2413250

$906.39

2

LABEL, FUSE BOX

7179666

Unavailable

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

4

Clip, Rosebud

4020149

$6.39

5

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

6

FUSE-PARK,20 AMP

2434017

Unavailable

7

FUSE-IGNITION,10 AMP

2434016

$4.79

8

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

9

COVER, FUSEBOX

4015011

$55.99

9

SEAL, FUSE CENTER

5415598

$8.79

10

DIODE, 6 AMP

2410000

$35.99

11

DIODE, 6 AMP W/TERMINALS

2411035

$51.99

12

BREAKER, 15 AMP

4011406

$63.99

13

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
