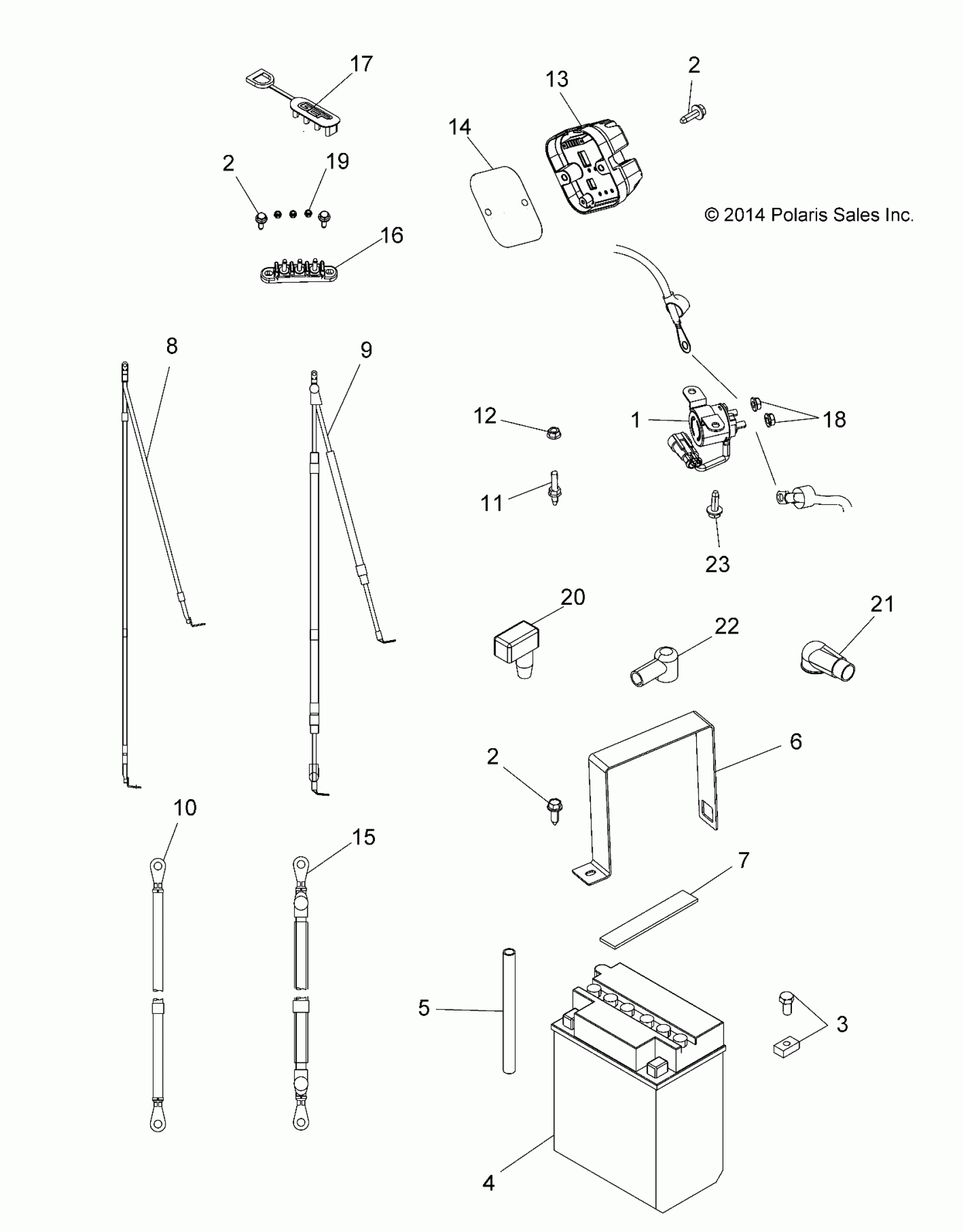

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 ELECTRICAL, BATTERY - A16DAA32A1/A7 (49ATVBATTERY15325) Diagram

#

Description
Price

1

SOLENOID, STARTER

4012001

$47.60

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

3

KIT, BATTERY BOLT

2202213

$3.79

4

BATTERY, 14 AH

4140006

$99.99

4

BATTERY-SEALED,32 AH,500 CCA [OPT]

4015955

$259.99

5

TUBE-BATTERY VENT,305MM

5435030

$4.84

6

BRACKET, STRAP, BATTERY

5258191

$39.99

7

PAD, RACK MOUNT

5810455

$3.22

8

CABLE, BATTERY, BATTERY/CHASSIS/TB

4015545

$62.92

9

CABLE, BATTERY, BATTERY/SOLENOID/TB [INCL. 21]

4015546

$72.60

10

CABLE, BATTERY, FLAT

4014423-725

$38.71

11

STUD

7519333

$7.94

12

NUT-M6 FLANGE,NYLOC

7547274

$1.19

13

REGULATOR, 3 PHASE, 50 AMP

4015229

$337.24

14

COVER, VOLTAGE REGULATOR

5253294

$11.32

15

CABLE, BATTERY, FLAT [INCL. 22]

4014424-830

$53.24

16

BLOCK, TERMINAL, 3 POST

4011892

$32.37

17

COVER, TERMINAL BLOCK, 3 POST

4014659

$11.32

18

NUT

7547270

$3.97

19

NUT

7547341

$0.79

20

BOOT, BATTERY, RED

4014836

$8.08

21

BOOT, BATTERY, RED

4014994

$7.27

22

INSULATOR-CABLE

5410346

$7.73

23

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19
