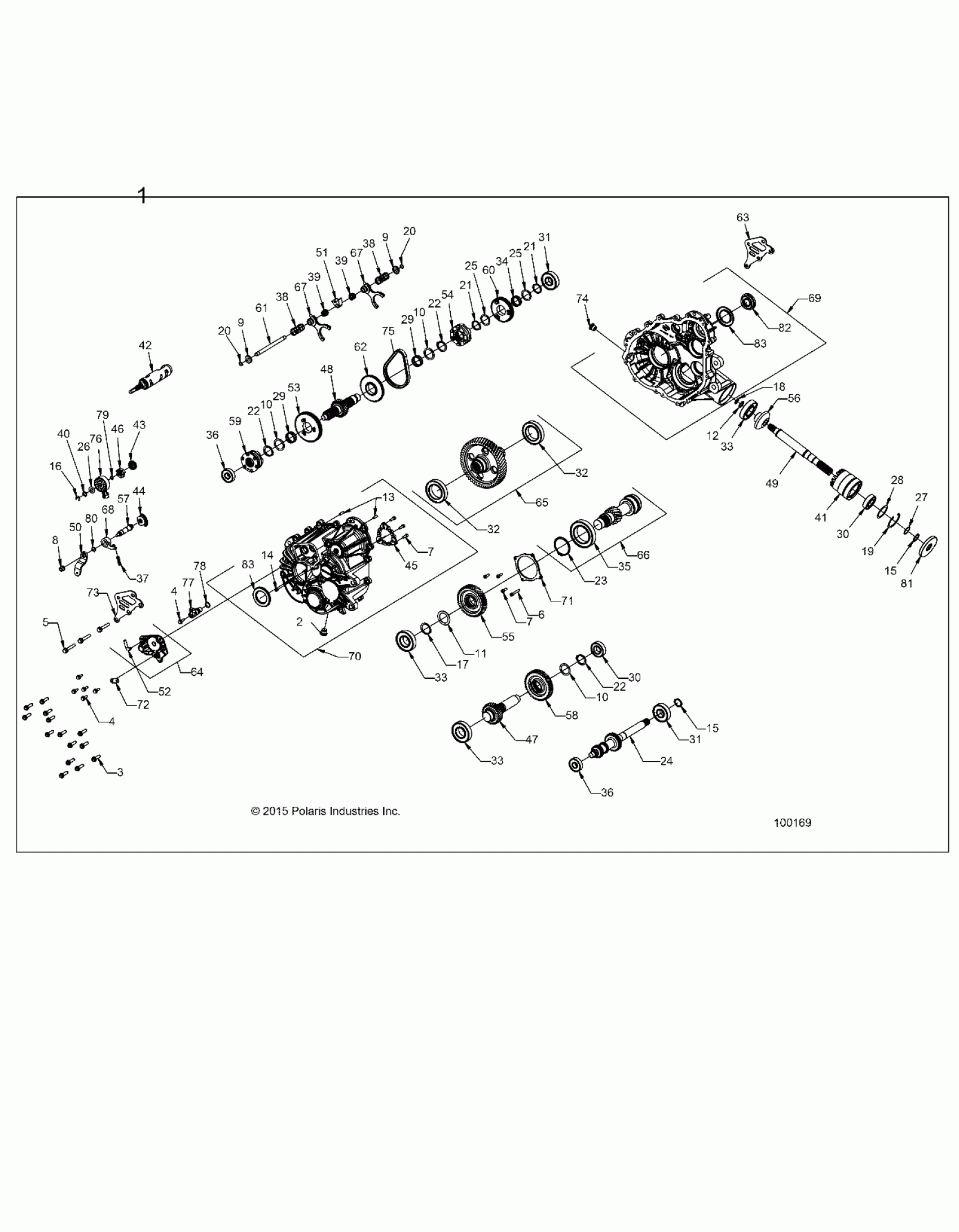

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 DRIVE TRAIN, MAIN GEARCASE - A16DAA32A1/A7 (100169) Diagram

#

Description
Price

1

ASM-GEARCASE,COMPLETE MAIN

1333480

$2,224.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

5

SCREW HEX FLANGE M8 X 50

3235207

$10.32

6

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 40

3235208

$11.11

7

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

3235332

$3.97

7

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

3235332

$3.97

8

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$7.94

9

WASHER-CUP

3234091

$9.52

9

WASHER-CUP

3234091

$9.52

10

WASHER 32.3 X 42 X 1.5

3235211

$10.32

10

WASHER 32.3 X 42 X 1.5

3235211

$10.32

10

WASHER 32.3 X 42 X 1.5

3235211

$10.32

11

WASHER 35.6 X 50 X 1.5

3235212

$13.49

12

WASHER 17.3 X 25 X 1.5

3235213

$15.87

13

PIN, DOWEL 6 X 20

3234330

$7.14

14

PIN, SPRING SLOTTED 6 X 12

7043746

$8.08

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

16

RING SNAP

3233834

$10.32

17

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.46

18

RING, RETAINING EXTERNAL SHR-66

3234318

$3.17

19

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

21

RING, RETAINING

3234205

$11.11

21

RING, RETAINING

3234205

$11.11

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING, RETAINING VSH-237

3235216

$10.32

24

SHAFT, INPUT BOSS L/W UTILITY

3235533

$204.99

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

26

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

27

SHIM 1.180 OD X .995 ID

3234272

$36.41

28

SHIM 2.040 OD X 1.63 ID

3234273

$13.75

29

BEARING, NEEDLE

3233014

$43.65

29

BEARING, NEEDLE

3233014

$43.65

30

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

30

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

31

BEARING

3233020

$47.62

31

BEARING

3233020

$47.62

32

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

32

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

34

BEARING, NEEDLE CAGE ASSY

3233384

$31.75

35

BEARING, BALL 6012 C3 60 X 95 X 18

3235218

$59.52

36

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.87

36

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.87

37

SPRING, COMPRESSION .360 OD X 1.125

3233830

$10.32

38

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

38

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

39

SPRING, COMPRESSION .46 I.D. X .73

3234089

$28.32

39

SPRING, COMPRESSION .46 I.D. X .73

3234089

$28.32

40

SPRING, WASHER

3235327

$9.52

41

TUBE, SNORKEL MACH

3234278

$101.17

42

DRUM-SHIFT,MACH.(255289)

3235463

$279.27

43

GEAR, SECTOR 16T

3233839

$36.41

44

GEAR-SECTOR,31T

3233832

$36.41

45

PLATE, PARK 12-FACE

3235456

$40.46

46

DETENT STAR

3235603

$40.46

47

SHAFT, IDLER 29T

3235223

$128.24

48

SHAFT, REVERSE 25T

3235451

$145.70

49

SHAFT, FRONT OUTPUT

3235394

$133.56

50

BELLCRANK ACE

3235629

$62.92

51

COLLAR-SHIFT

3234073

$31.75

52

TUBE, VENT 90 -1/4" HOSE

3234230

$10.51

53

GEAR, LOW 67T

3235232

$125.46

54

ENGAGEMENT DOG, 6-FACE

3235233

$129.51

55

GEAR, 46T STAGE 3

3235236

$128.24

56

GEAR, 13T SNORKEL

3235237

$156.74

57

SHAFT-SHIFT(352973)

3235238

$42.74

58

GEAR, 48T STAGE 2

3235450

$156.74

59

SHIFT DOG, PARK

3235457

$145.70

60

GEAR, 56T

3235534

$115.54

61

RAIL, SHIFT SHAFT

3235542

$28.32

62

SPROCKET 48T 6-FACE

3235755

$80.94

63

WELDMENT, REAR MOUNT BRACKET

3235527

$53.24

64

SUBASSEMBLY, SECTOR COVER (INCLUDES ALL HARDWARE)

3235713

$135.54

65

SUBASSEMBLY OUTPUT (INCLUDES BEARINGS)

3235335

$408.49

66

SUBASM.,SHAFT (BEARING &RET. RING)

3235336

$446.49

67

SUBASSEMBLY SHIFT FORK

3235454

$89.03

67

SUBASSEMBLY SHIFT FORK

3235454

$89.03

68

SUBASSEMBLY, PAWL DETENT, ROLLER

3235452

$36.41

69

SUBASSEMBLY, LH CASE (INCLUDES ALL HARDWARE)

3235550

$554.99

70

SUBASSEMBLY, RH COVER (INCLUDES ALL HARDWARE)

3235792

Unavailable

71

COVER-BEARING,CNTR DR.

3235241

$48.56

72

BRACKET WIRE HARNESS

3235350

$8.89

73

BRACKET REAR MOUNT

3235528

$40.46

74

PLUG, M18 X 1.5

3234755

$27.78

75

CHAIN,SIL 101,.25P X .40W X58L

3234737

$169.98

76

SWITCH, ROTARY 2 PIN RESISTIVE

7661999

$117.37

77

SENSOR-SPEED,TRANS

4013908

$109.27

78

O-RING

3234302

$7.27

79

O-RING, -012 VITON

3233836

$6.87

80

O-RING, -014 VITON

3233828

$6.87

81

SEAL, TRIPLE LIP 25 X 80 X 10

3234113

$36.41

82

SEAL, DUAL LIP 25 X 47 VITON

3234851

$42.74

83

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$32.37

83

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$32.37
