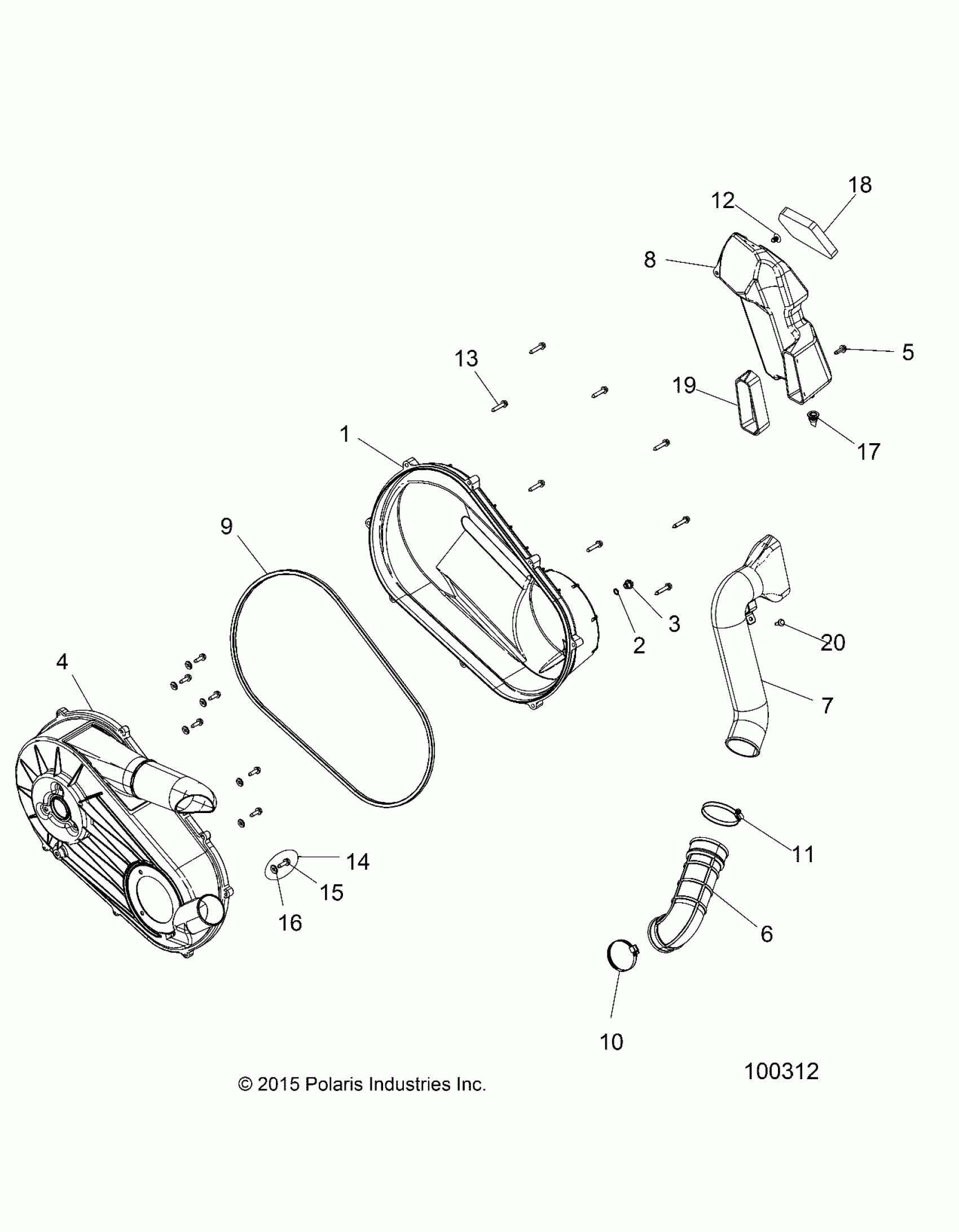

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 DRIVE TRAIN, CLUTCH COVER AND DUCTING - A16DAA32A1/A7 (100312) Diagram

#

Description
Price

1

ASM., COVER, CLUTCH, OUTER [INCL. COVER, 2,3]

2634179

$175.99

2

O RING-.364X.504X.07

5410542

Unavailable

3

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

4

ASM., CLUTCH COVER, INNER

2634864

$95.19

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

6

HOSE, INTAKE

5414583

$43.99

7

DUCT-INTAKE,CLUTCH

5452666

$51.99

8

BOX, INTAKE, LH

5450727

$71.99

9

SEAL, OUTER

5521831

Unavailable

10

Clamp, Narrow Band

7080413

$3.19

11

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

12

CLIP-PLASTIC DART, NYLON

7670088

$1.59

13

SCREW

7519849

$3.19

14

ASM., BOLT/WASHER

7519278

$4.79

15

SCREW

7519279

$10.39

16

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

17

PLUG-DRAIN

5414472

$5.59

18

FILTER, INTAKE, FOAM

5814026

$12.79

19

SEAL, FOAM

5814033

$11.99

20

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49
