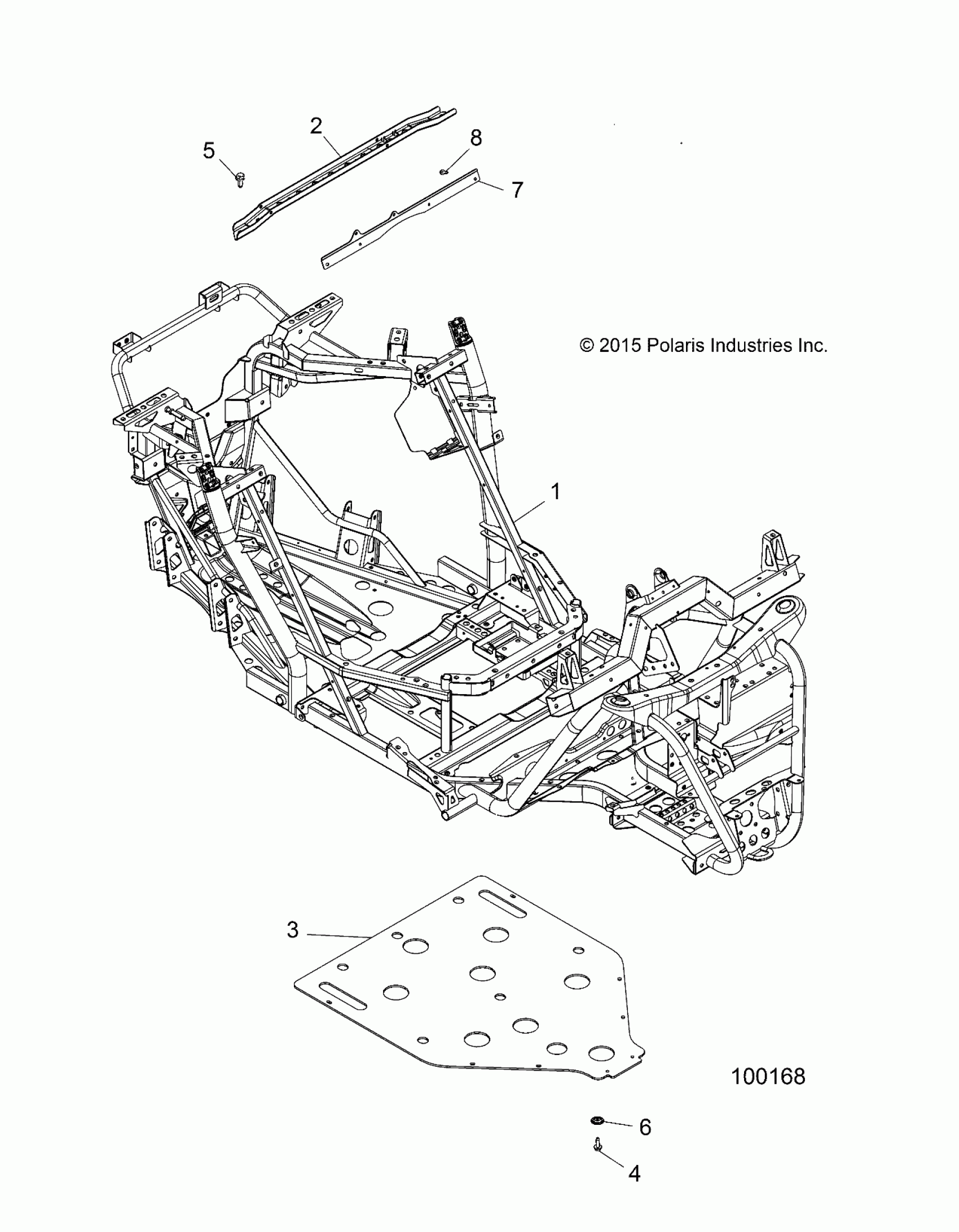

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 CHASSIS, MAIN FRAME AND SKID PLATE - A16DAA32A1/A7 (100168) Diagram

#

Description

Price

1

WELD-MAIN FRAME,MATTE BLK

1021679-458

$2,349.99

2

BRKT-REAR,BRACE,E-COAT

5261168-329

$69.99

3

PLATE, SKID

5813900

$107.14

4

SCREW

7518936

$3.97

5

BOLT

7518555

$2.38

6

WASHER-SKID PLATE

7556065

$4.76

7

WELD-BRACE,BOLT-IN,MNT,E-COAT

1021976-329

$45.24

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19
