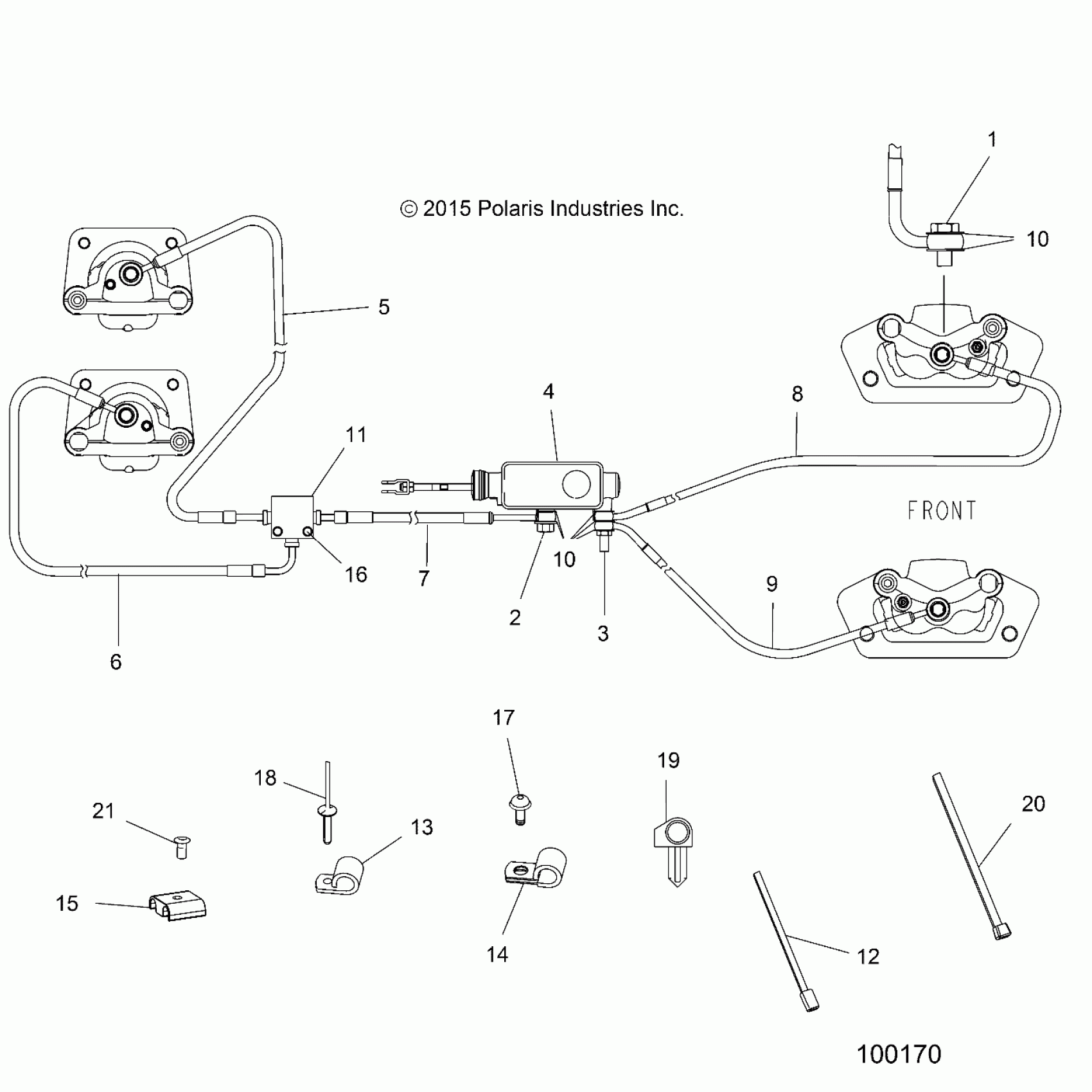

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 BRAKES, BRAKE LINES AND MASTER CYLINDER - A16DAA32A1/A7 (100170) Diagram

#

Description
Price

1

BOLT, BANJO

1910499

$5.59

2

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

3

SWITCH, PRESSURE

4012981

$47.99

4

ASM., TANDEM MASTER CYLINDER, SHORT

1911985

$151.99

5

LINE, BRAKE, REAR, LEFT

1912021

$83.99

6

LINE, BRAKE, REAR, RH

1912022

$87.99

7

LINE, BRAKE, MASTER CYLINDER

1912023

$107.99

8

LINE, BRAKE, FRONT, LEFT

1912024

$87.99

9

LINE, BRAKE, FRONT, RH

1912025

$67.99

10

SEAL

5413212

$4.79

10

SEAL

5413212

$4.79

11

FITTING-TEE,BRAKE

7052293

$59.99

12

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

13

CLAMP, CABLE

7080499

$5.59

14

CLAMP, HOSE

7080683

$2.39

15

CLIP, RETAINING, DUEL

7670126

$4.79

16

SCREW

7512025

$4.79

17

Screw

7512084

$1.49

18

Rivet

7621323

$1.49

19

Clip

7670102

$2.39

20

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

21

Screw

7517756

$1.49
