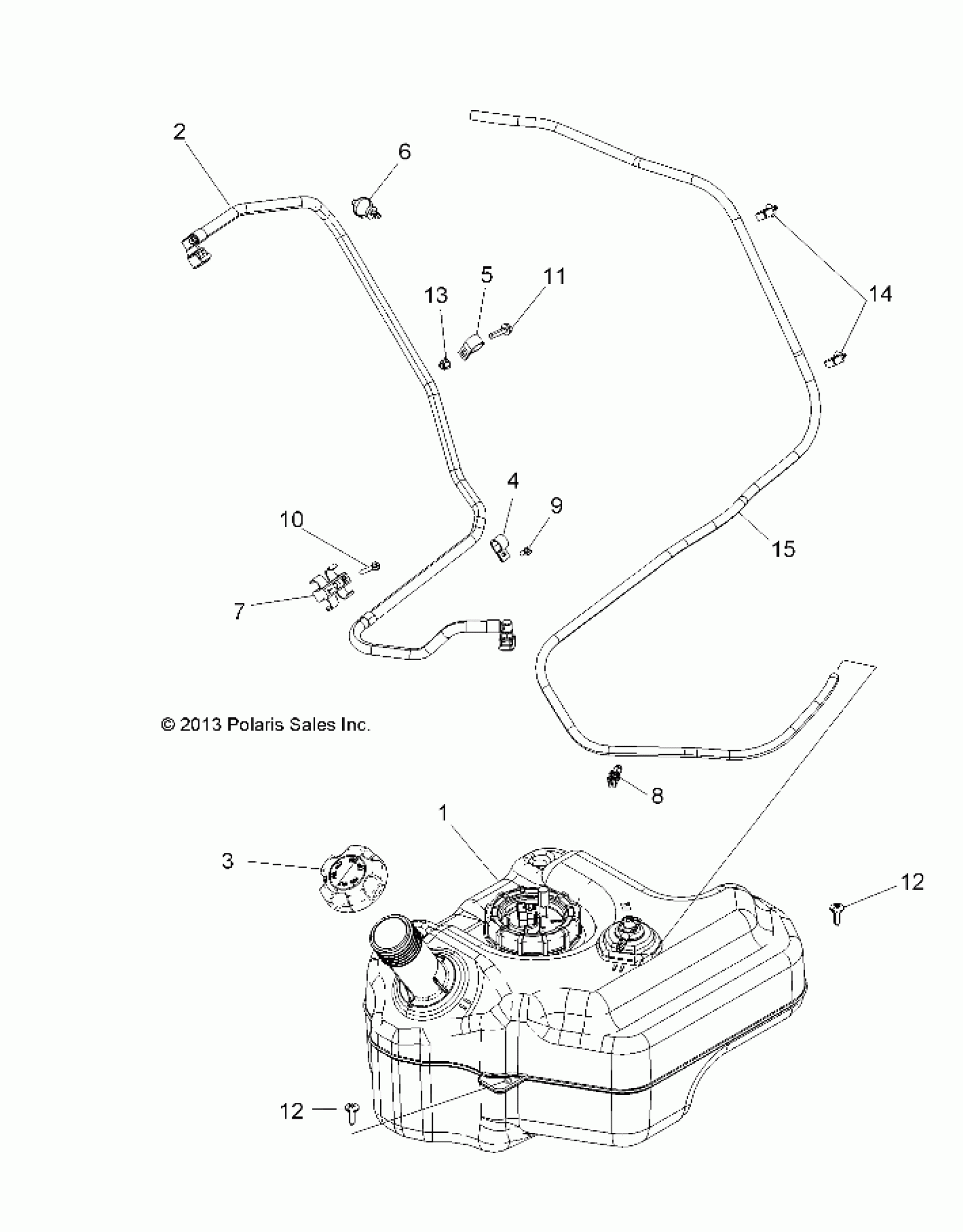

Polaris ACE 325 EFI (R05) - A16DAA32A1/A7 BODY, FUEL TANK - A16DAA32A1/A7 (49ATVFUEL14325) Diagram

Description

Price

ASM., FUEL TANK

2521323

$953.39

KIT, FUEL PUMP [INCL, PUMP, NUT, SEAL]

2205374

$409.19

ASM., FUEL LINE, RAIL TO TANK

2521324

$83.99

CAP-GAS TANK

5439075

$23.99

CLAMP, CABLE

7080499

$5.59

Clamp, Hose

7080880

$5.59

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

T-CLIP, T15

7081689

$7.19

STRAP, CABLE TIE W/EDGE CLIP

7082038

$6.39

SCREW

7512024

$4.79

SCREW

7512025

$4.79

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

CLIP, ROUTING, HINGED

7670116

$5.59

LINE, VENT

8450126-172

$39.99
