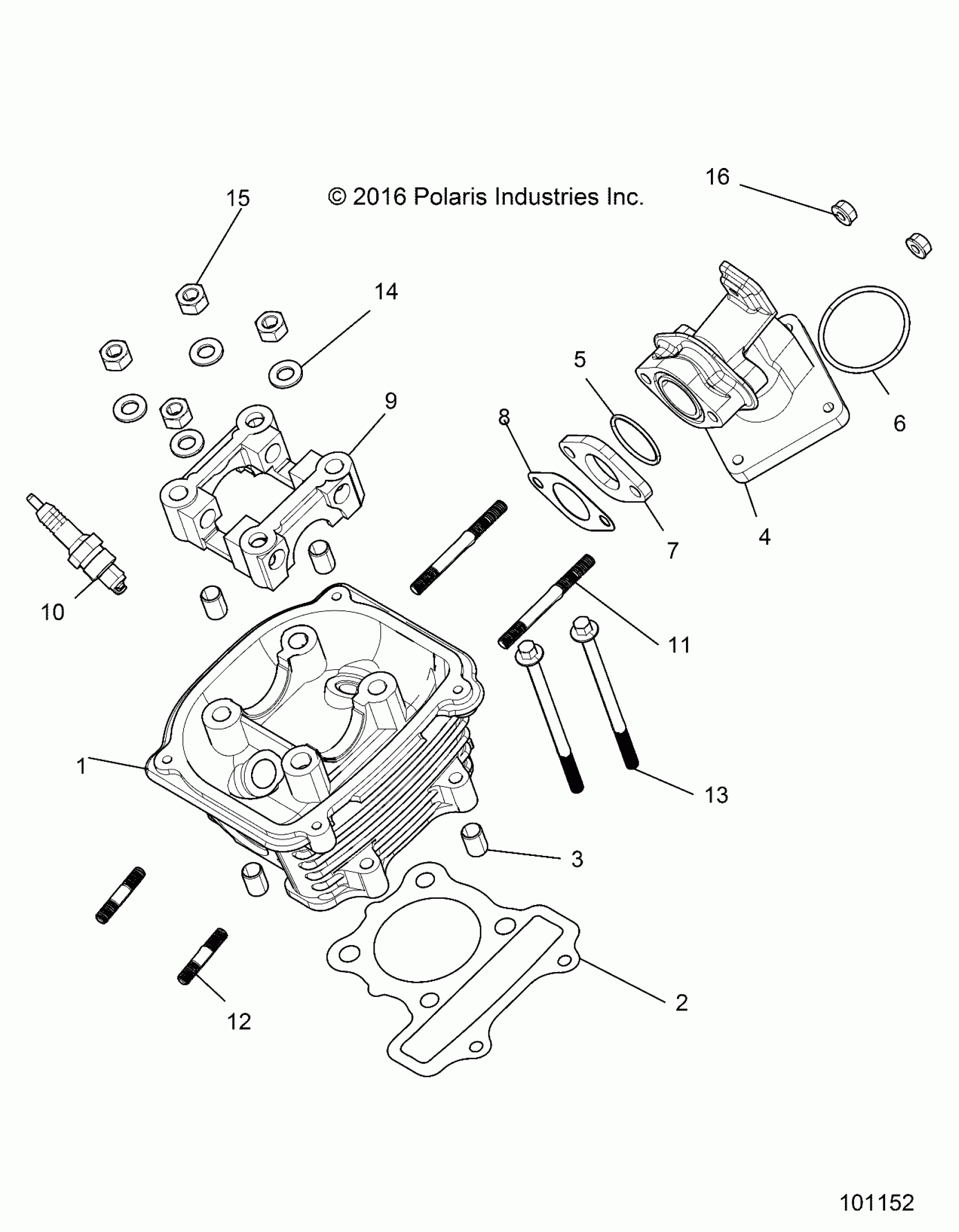

Polaris ACE 150 (R11) - A17HAA15A7/B7 ENGINE, CYLINDER HEAD ASM. - A17HAA15A7/B7 Diagram

#

Description
Price

1

CYLINDER HEAD

3050045

$139.99

2

GASKET, CYLINDER BLOCK

3050351

$7.99

3

DOWEL PIN 10X16

3050047

$3.99

4

INLET PIPE

5140897

$87.99

5

O-RING 27X2

5416176

$2.79

6

O-RING 41X2.5

5416177

$3.59

7

INSULATOR INTAKE

3050048

$23.99

8

GASKET CARBURATOR INSULATOR

3050049

Unavailable

9

CAMSHAFT HOLDER

3050050

$63.99

10

SPARK PLUG

3050051

$8.79

11

BOLT STUD M6X63

3050052

$7.19

12

BOLT STUD M6X32

3050053

$7.19

13

BOLT M6X100

3050330

$4.79

14

WASHER 8

3050054

$3.99

15

NUT M8

3050343

$3.19

16

NUT M6

3050333

$3.99
