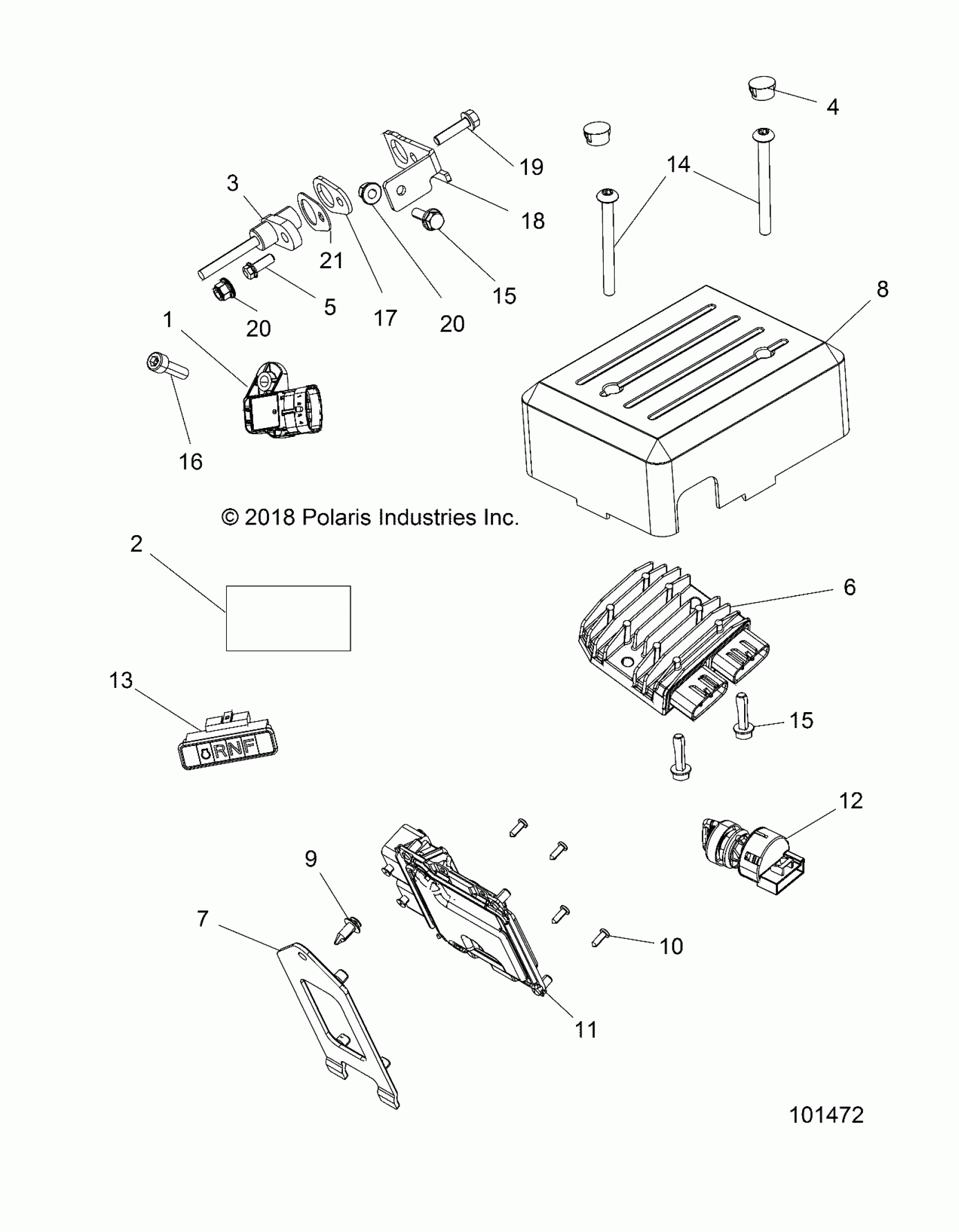

Polaris ACE 150 (R11) - A17HAA15A7/B7 ELECTRICAL, SENSORS, MODULES, and SWITCHES - A17HAA15A7/B7 (101472) Diagram

#

Description
Price

1

SENSOR-TMAP DSS3-TF

2411528

$93.08

2

SENSOR-METAL TEMP [NOT SHOWN]

4016513

$35.99

3

SENSOR-SPEED,PICKUP,FILTER,32

2414180

$67.99

4

PLUG-ELECTRICAL COVER

5455568

$11.99

5

SCR-HXFL,M6X1.0X16 8.8ZY3DL204

7519329

$3.99

6

REGULATOR-3PH,35A,SERIES,105C

4012941

$227.99

7

MNT-ECM,REAR,BLK

5438708-070

$10.39

8

COVER-ELECTRICAL,PLASTIC

5453537

$14.39

9

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

10

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.19

11

ECM-NO START,ME17

4014125

$694.99

12

SWITCH-KEY,3 POS,MT SLV

4012165

$104.24

13

BULB-INDICATOR,HOBBS

4010416

Unavailable

13

PANEL-INDICATOR,LED

4016360

$63.99

14

SCR-M6X1.065MM,BTNHTXCS

7519019

$4.79

15

SCR-M6X1.0X20-HX/FL-Y/D

7516822

$2.39

15

SCR-M6X1.0X20-HX/FL-Y/D

7516822

$2.39

16

SCR-SH-M6X1.0X20 8.8 ZPB

7517305

$4.79

17

SPACER-HALL SPEED SENSOR

5263567

$7.19

18

BRKT-MNT,SPEED SENSOR

5264141

$8.79

19

Screw

7516823

$3.19

20

NUT-M6 FLANGE,NYLOC

7547274

$1.49

20

NUT-M6 FLANGE,NYLOC

7547274

$1.49

21

SHIM-SPEED SENSOR,1MM

5265803

$4.79
