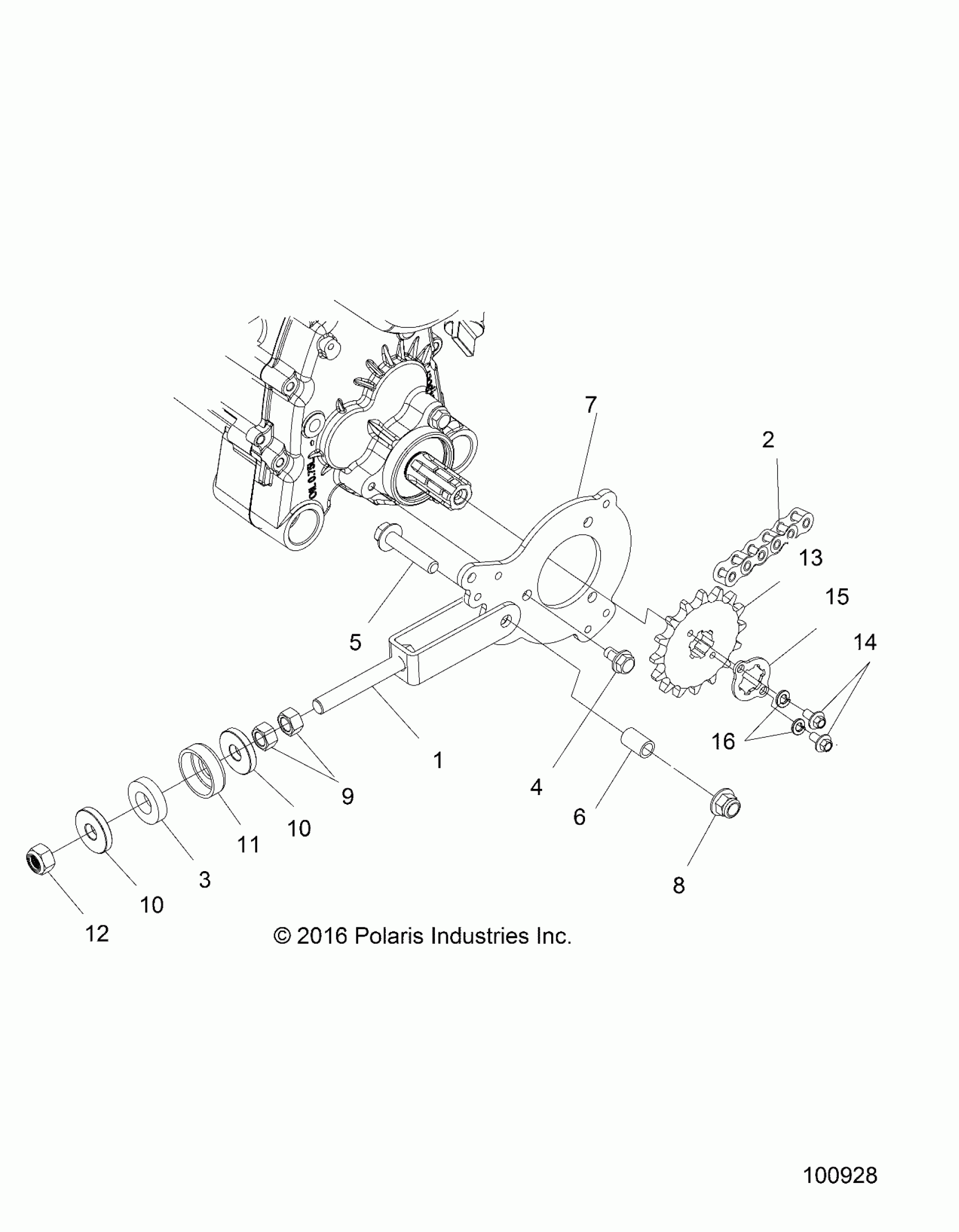

Polaris ACE 150 (R11) - A17HAA15A7/B7 DRIVE TRAIN, CHAIN TENSIONER AND SPROCKET - A17HAA15A7/B7 (100928) Diagram

Description

Price

WELD-BRKT,CHAIN TENSIONING

1022922

$27.99

CHAIN-50X52P INC ML

3222268

$109.99

MASTER LINK,50X52P

3222282

$10.39

BUSHING-ENGINER ADJ ISOLATOR

5416112

$7.19

SCR-HH-M8X1.25X16 8.8 ZOD

7519124

$3.99

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$6.39

COLLAR-ENGINE HANGER PLATE

7557012

$3.99

WELD-BRKT,ENGINE HANGER

1022921

$27.99

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.49

NUT-M12-1.25,ZINC CLEAR

7547345

$6.39

WASHER,M12 FLAT DAC

7557000

$3.99

WASHER,M12 FLAT DAC

7557000

$3.99

SPACER-ENGINE ADJ CUP

7557001

$7.19

NUT-HEX,M12X1.25 8 ZPC NYL

7547796

$3.99

SPROCKET-DRIVE,50P,16T

3222266

$43.99

SCR-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.59

KEEPER-SPROCKET

7710855

$5.59

WASHER-LOCK, 6 MM-Z

7552616

Unavailable
