- ACE 150 EFI (R01) - A21HAB15A2/B2
ELECTRICAL, SENSORS, MODULES, and SWITCHES - A21HAB15A2/B2 (C102280)

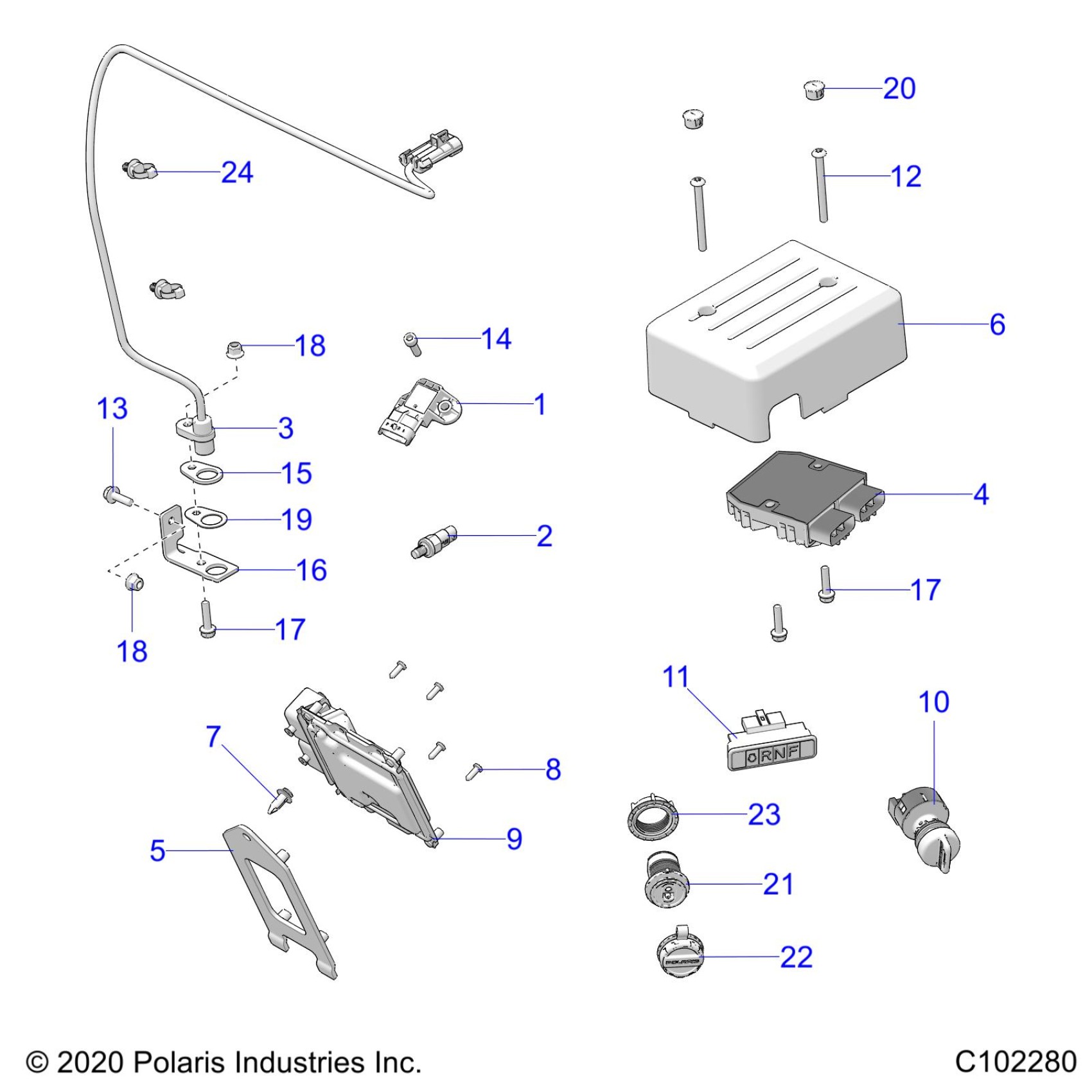

Polaris ACE 150 EFI (R01) - A21HAB15A2/B2 ELECTRICAL, SENSORS, MODULES, and SWITCHES - A21HAB15A2/B2 (C102280) Diagram
#
Description
Price
1
SENSOR-TMAP DSS3-TF
2411528
$93.08
2
SENSOR-METAL TEMP,ARROW
4016513
$35.99
3
SENSOR-SPEED,PICKUP,FILTER,32
2414180
$67.99
4
REGULATOR-3PH,35A,SERIES,105C
4012941
$227.99
5
MNT-ECM,REAR,BLK
5438708-070
$10.39
6
COVER-ELECTRICAL,PLASTIC
5453537
$14.39
7
RIVET-TUFLOK,.315-.325X.787
7661855
$1.49
8
SCR-#10X1/2-HI/LO-PN-T25, TRX-M
7519091
$3.19
9
ECM-HARD,ME17,2CYL,250K
4014125
$694.99
10
SWITCH, KEY, 3 POSITION, MT SLV
4012165
$104.24
11
PANEL-INDICATOR,LED
4016360
$63.99
11
BULB-INDICATOR,HOBBS
4010416
Unavailable
12
SCR-M6X1.065MM,BTNHTXCS
7519019
$4.79
13
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$2.39
14
SCREW-SH-M6X1.0X20 8.8 ZPB
7517305
$4.79
15
SPACER-HALL SPEED SENSOR
5263567
$7.19
16
BRKT-MNT,SPEED SENSOR
5264141
$8.79
17
SCR-M6X1.0X25-HX/FL-Y/D
7516823
$3.19
17
SCR-M6X1.0X25-HX/FL-Y/D
7516823
$3.19
18
NUT-M6 FLANGE,NYLOC
7547274
$1.49
18
NUT-M6 FLANGE,NYLOC
7547274
$1.49
19
SHIM-SPEED SENSOR,1MM
5265803
$4.79
20
PLUG-ELECTRICAL COVER
5455568
$11.99
21
ASM-CHARGE PORT,BASE (INCL. 21-23)
2415295
$40.46
21
PLUG-HARNESS CHARGE PORT
2415198
Unavailable
22
CAP-CHARGE PORT
5417215
$12.79
23
NUT-CHARGE PORT
5456622
Unavailable
24
CLIP-ROUTING
7082599
$26.39
