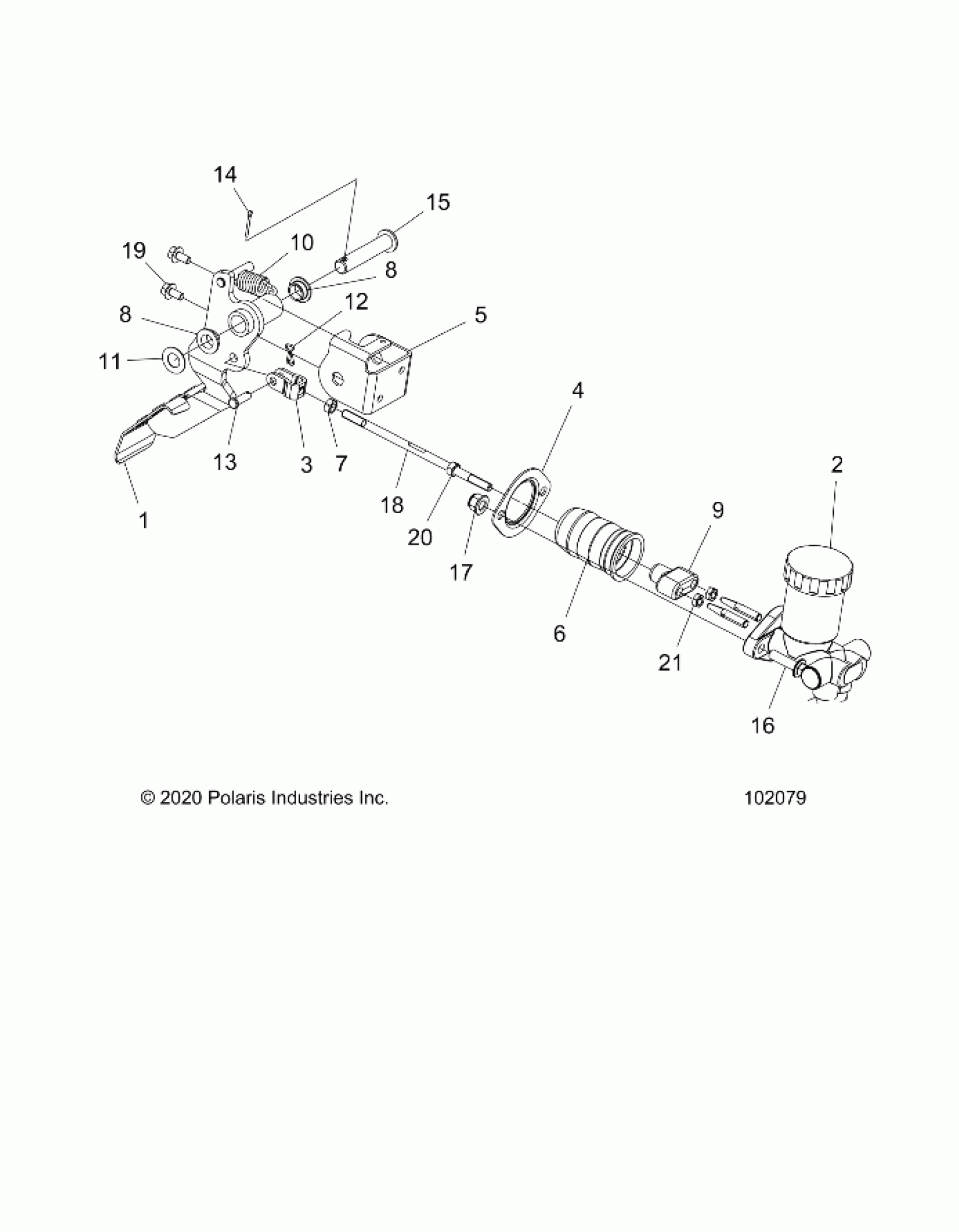

Polaris ACE 150 EFI (R01) - A21HAB15A2/B2 BRAKES, PEDAL AND MASTER CYLINDER MOUNTING - A21HAB15A2/B2 (102079) Diagram

#

Description
Price

1

WELD-PEDAL,BRAKE,RED

1022924-239

$87.99

2

ASM-MASTER CYLINDER,DUAL BORE

1912811

$275.99

3

BRKT-CLEVIS

5263493

$5.59

4

BRKT-MC BOOT RETAINER

5263509

$8.79

5

BRKT-MNT,BRAKE PEDAL,BLK

5263519-458

$8.79

6

SEAL-MC BOOT

5416095

$9.59

7

NUT-HEX-M8X1.25 8ZPB,LH,THR

7547851

$3.99

8

BUSHING-PEDAL PIVOT

5439274

$12.79

8

BUSHING-PEDAL PIVOT

5439274

$12.79

9

CAST-COUPLER,BRAKE,PUSH ROD

5633731

$10.39

10

SPRING-EXHAUST

7041789

$7.99

11

WASHER-.937X.501X.031,OLIVE D

7556376

$3.19

12

PIN-CLIP,14MM

7661140

$1.49

13

PIN-CLEVIS, 1/4 X 3/4 -Y

7661843

$2.39

14

PIN-CLIP

7662424

$3.19

15

PIN-PIVOT,BRAKE PEDAL

7662312

$9.59

16

SCREW-HXFL-M8X1.25X30 10.9 ZPB

7518884

$1.99

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

ROD-BRAKE,PUSH

1912814

$27.99

19

SCR-HXFL-M6X1.0X12 8.8 ZOD P30

7519145

$3.99

20

NUT-HEX-M8X1.25 8 ZPB.

7547076

$2.60

21

NUT-HEX-M8X1.25 8 ZPC

7547975

Unavailable
