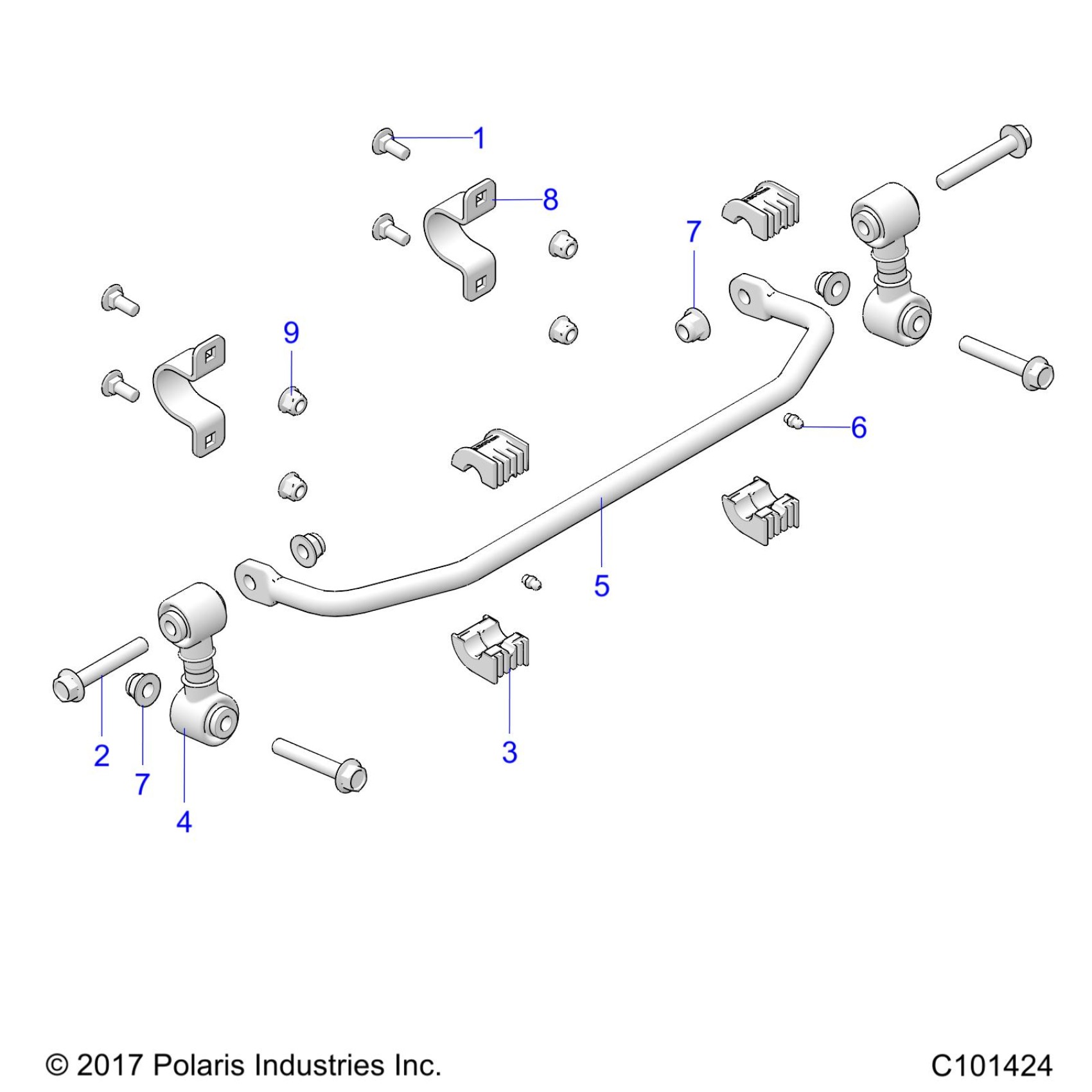

Polaris ACE 150 EFI (R01) - A20HAB15A2 SUSPENSION, STABILIZER BAR, FRONT - A20HAB15A2 (101424) Diagram

#

Description

Price

1

SCR-RHCAR-M8X1.25X20 8.8 ZY3

7518479

$3.97

2

SCR-M10X1.5X65 8.8 HX/FL ZOD

7518960

$3.17

3

BUSHING-STABILIZER BAR,16.5MM

5453932

$7.14

4

ASM-LINK STABILIZER BAR [TO 8/5/2019]

1543882

Unavailable

4

ASM-LINK STABILIZER BAR [FROM 8/5/2019]

1544316

$77.44

5

BAR-STABILIZER,FRONT,BLK

5340153-458

$93.08

6

FITTING-LUB,M6X1-STR/1792-Y

7082290

$7.14

7

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.19

7

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.19

8

BRKT-MOUNT,SWAY BAR,DBL

5266624

$12.13

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97
