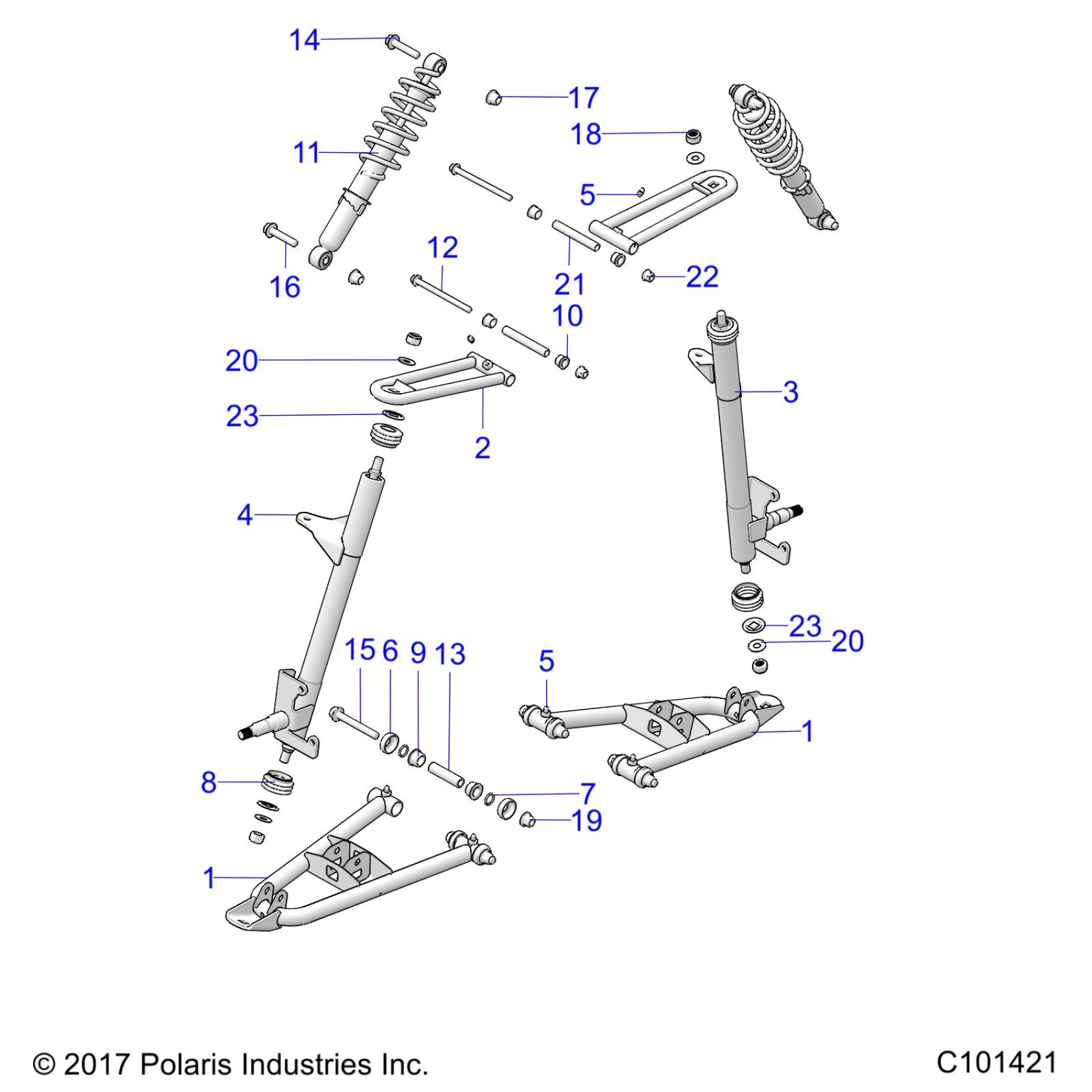

Polaris ACE 150 EFI (R01) - A20HAB15A2 SUSPENSION, FRONT - A20HAB15A2 (101421) Diagram

#

Description
Price

1

WELD-A-FRAME,LWR,FRT,BLK

1543782-458

$119.99

1

WELD-A-FRAME,LWR,FRT,BLK

1543782-458

$119.99

2

WELD-A-FRAME,UPPER,FRT,BLK

1543783-458

$39.99

3

ASM-STEERING SPINDLE,RH,BLACK [TO 7/14/2019]

1824577-458

$99.99

3

ASM-STEERING SPINDLE,RH,BLACK [FROM 7/1/2019]

1824974-458

$139.99

4

ASM-STEERING SPINDLE,LH,BLACK [TO 7/14/2019]

1824576-458

$99.99

4

ASM-STEERING SPINDLE,LH,BLACK [FROM 7/1/2019]

1824973-458

$139.99

5

FITTING-LUB,M6X1-STR/1792-Y

7082290

$7.19

5

FITTING-LUB,M6X1-STR/1792-Y

7082290

$7.19

6

CAP-LWR SUSPENSION ARM,DUST

5416085

$7.99

7

SEAL-O-RING,21.2X2.65

5416086

$1.49

8

SEAL-BALL HEAD,DUST,SPINDLE

5416087

$10.39

9

BUSHING-LWR SUSPENSION ARM

5453651

$8.79

10

BUSHING-UPPER SUSPENSION ARM

5453653

$8.79

11

ASM-SHOCK,FR,AR,18,BLK

7045071-458

$312.39

12

SCR-HXFL-M8X1.25X110 10.9 ZPC

7517409

$23.99

13

COLLAR-LWR SUSPENSION ARM

7556999

$7.19

14

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$6.39

15

SCR-HXFL-M10X1.5X80 10.9 ZY3

7519143

$10.39

16

SCR-HXFL-M10X1.5X45 10.9 RIE

7519906

$4.79

17

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.49

18

NUT-HEX,M12X1.25 8 ZPC NYL

7547796

$3.99

19

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.49

20

WASHER-7/16 SAE,STF,THRU-HRD-Y

7556212

$8.79

20

WASHER-7/16 SAE,STF,THRU-HRD-Y

7556212

$8.79

21

COLLAR-UPPER SUSPENSION ARM

7556998

$7.19

22

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

23

SPACER-BALL HEAD,SPINDLE

7556996

$1.49

23

SPACER-BALL HEAD,SPINDLE

7556996

$1.49
