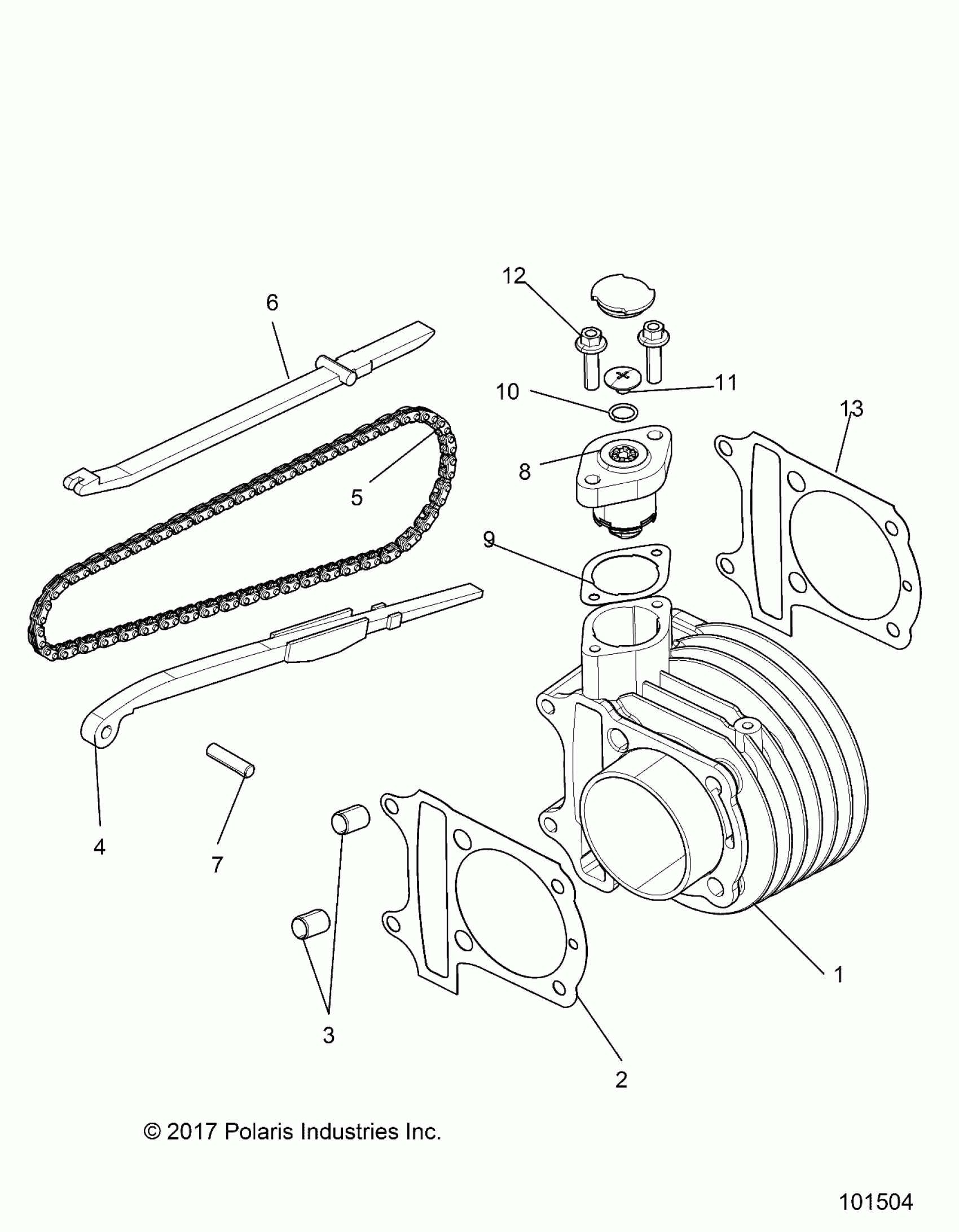

Polaris ACE 150 EFI (R01) - A20HAB15A2 ENGINE, CYLINDER COMP - A20HAB15A2 Diagram

#

Description

Price

1

CYLINDER BLOCK

3050055

$243.99

2

GASKET, CYLINDER BLOCK

3050351

$7.99

3

DOWEL PIN 10X16

3050047

$3.99

4

CHAIN GUIDE PLATE

3050058

$23.99

5

TIMING CHAIN

3050059

$83.99

6

TENSION PLATE

3050060

$31.99

7

TENSION ROD FIXED PIN

3050061

$7.99

8

ASM-TENSIONER

3050062

$39.99

9

GASKET, TENSIONER

3050347

$1.49

10

O-RING 9.5X1.5

3050064

$1.49

11

BOLT, TENSION PLATE

3050065

$3.99

12

BOLT M6X22

3050331

$3.99

13

GASKET, CYLINDER HEAD,METAL

3050355

$7.99
