Partiron

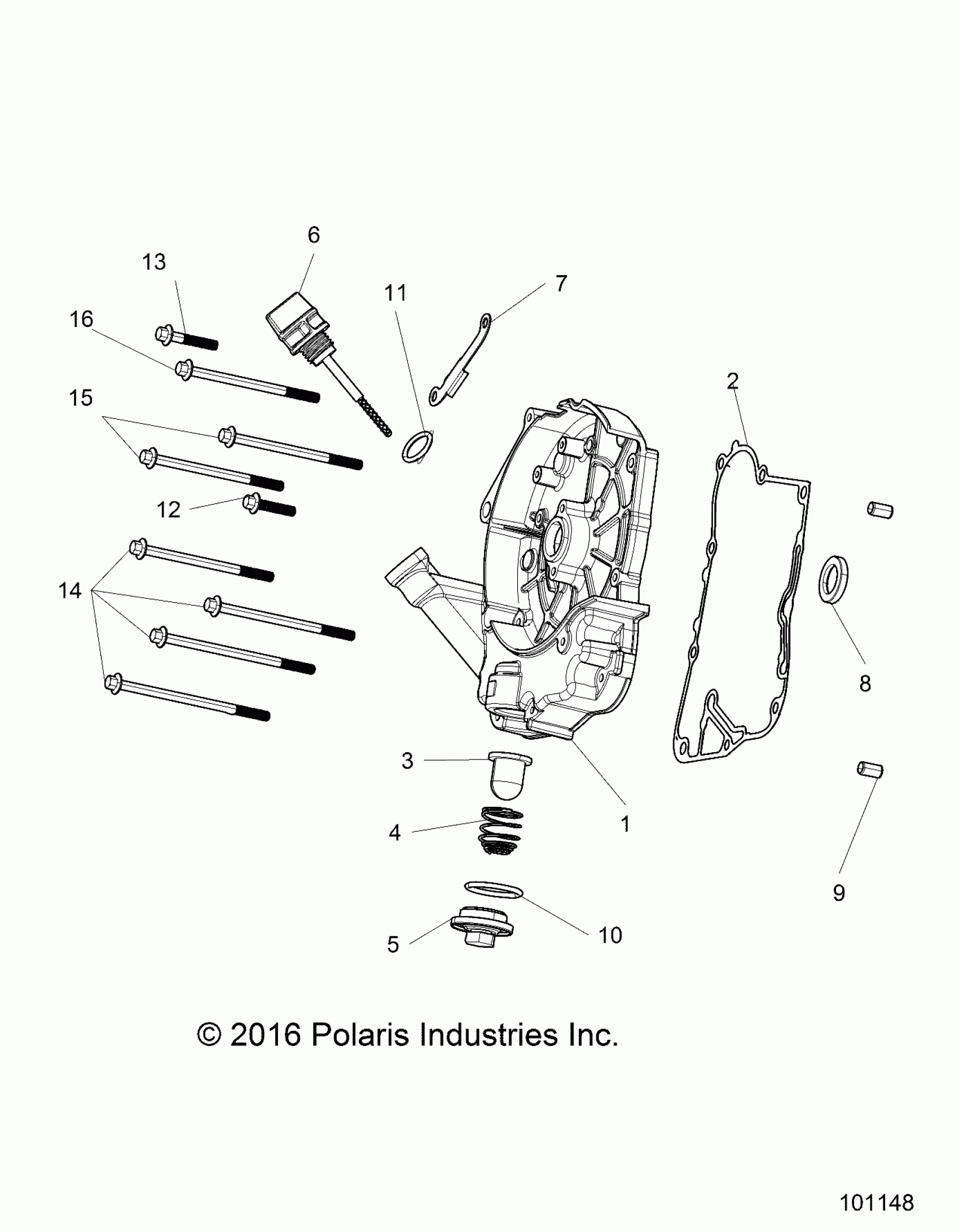

Polaris ACE 150 EFI (R01) - A20HAB15A2 ENGINE, CRANKCASE COVER ASM, RIGHT - A20HAB15A2 Diagram

#

Description
Price

1

CRANKCASE COVER, RH

3050081

$219.99

2

GASKET, CRACKCASE COVE, RH

3050350

$11.19

3

OIL FILTER SCREEN

3050083

$6.39

4

OIL FILTER SCREEN SPRING

3050084

$6.39

5

COVER, OIL FILTER SCREEN

3050085

$27.99

6

DIPSTICK

3050086

$23.99

7

CLAMPER A.C. GENERATOR CORD

3050087

$11.19

8

OIL SEAL 19.8X30X5

3050088

$15.99

9

DOWEL PIN 8X14

3050089

$3.99

10

O-RING 30.8X3.2

3050090

$1.49

11

O-RING 18X3

3050091

Unavailable

12

BOLT M6X35

3050336

$3.99

13

BOLT M6X28

3050337

$3.99

14

BOLT M6X95

3050338

$4.79

15

BOLT M6X110

3050339

$4.79

16

BOLT M6X100

3050330

$4.79
