- ACE 150 EFI (R01) - A20HAB15A2
ENGINE, CRANKCASE COMP LEFT/RIGHT - A20HAB15A2

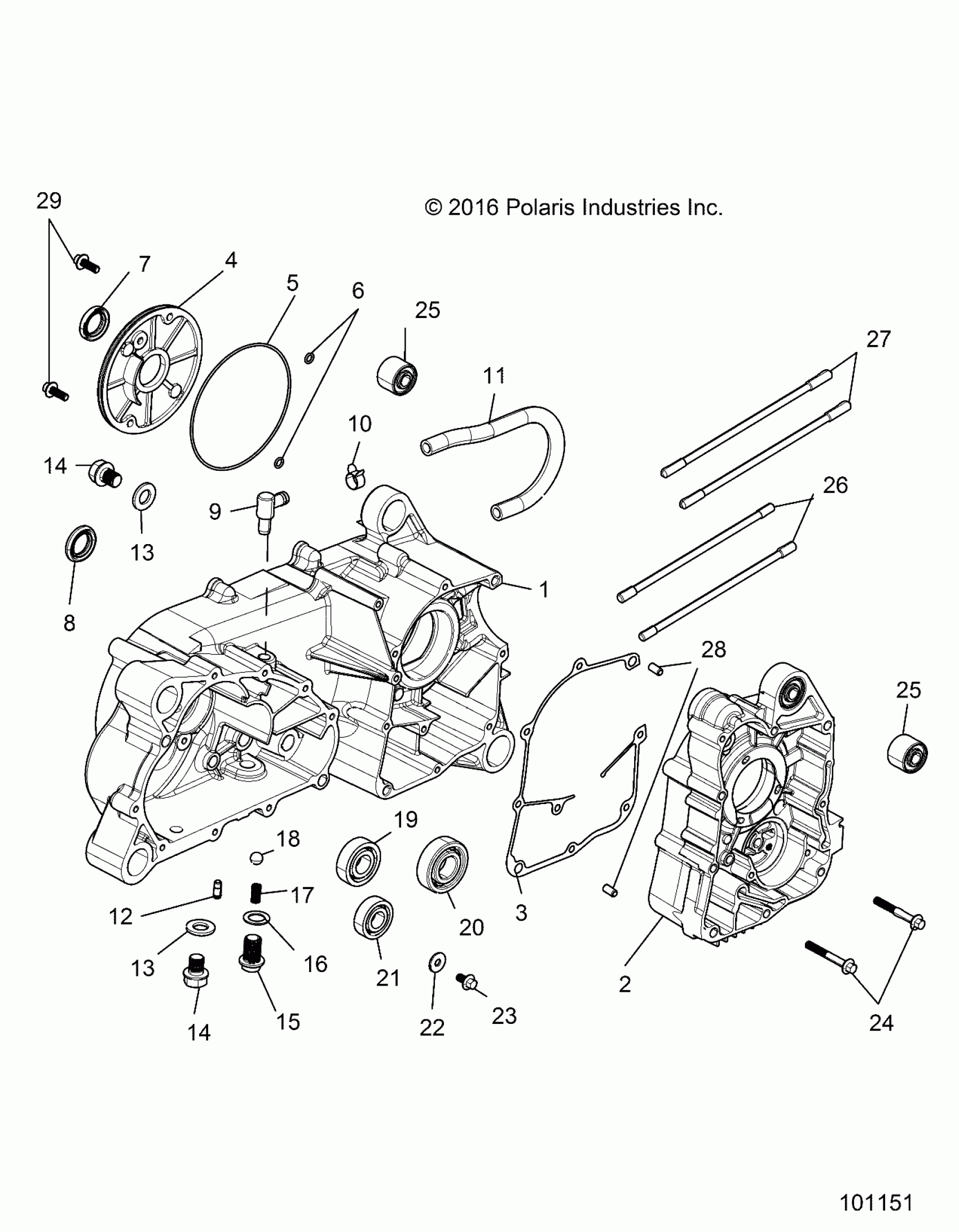

Polaris ACE 150 EFI (R01) - A20HAB15A2 ENGINE, CRANKCASE COMP LEFT/RIGHT - A20HAB15A2 Diagram
#
Description
Price
1
CRANKCASE, LH
3050019
$373.99
2
CRANKCASE, RH
3050020
$175.99
3
GASKET-CRANKCASE
3050348
$11.19
4
COVER
3050022
$7.19
5
O-RING 107X2
3050023
$5.59
6
O-RING 6X1.8
3050024
$1.49
7
OIL SEAL 19.8X30X5
3050025
$15.99
8
OIL SEAL 20X32X6
3050026
$7.19
9
VENTILATION PIPE
3050027
$7.99
10
STEEL STRIP TYPE ELASTIC RING HOOOP (16)
3050028
$1.49
11
HOSE-3/8" SAE J30R7,33CM
8450178-33
$27.99
12
BOX OUTLET NOZZLE
3050029
$7.99
13
WASHER 12
3050030
$3.99
13
WASHER 12
3050030
$3.99
14
BOLT M12X1.5
3050031
$3.99
14
BOLT M12X1.5
3050031
$3.99
15
LOCATING BOLT M14X20.8
3050032
$4.79
16
WASHER 14.2X22X1.3
3050033
$3.99
17
POSITIONING SPRING
3050034
$3.19
18
STEEL BALL SO10.319
3050035
$4.79
19
BALL BEARING 6203
3050322
$27.99
20
BALL BEARING 6204
3050323
$31.99
21
BALL BEARING 6202
3050324
$23.99
22
WASHER 6X18X1.6
3050036
$3.99
23
BOLT M6X12
3050325
$3.99
24
BOLT M6 � 50
3050326
$4.79
25
ENGINE HANGER BUSH
3050037
$7.19
25
ENGINE HANGER BUSH
3050037
$7.19
26
BOLT, CYLINDER STUD M8X187.5
3050038
$23.99
27
BOLT, CYLINDER STUD M8X196
3050039
$23.99
28
PIN 8 � 6.5 � 14
3050040
$3.99
29
HEXAGON FLANGE BOLTS M16X18
3050327
$3.99
