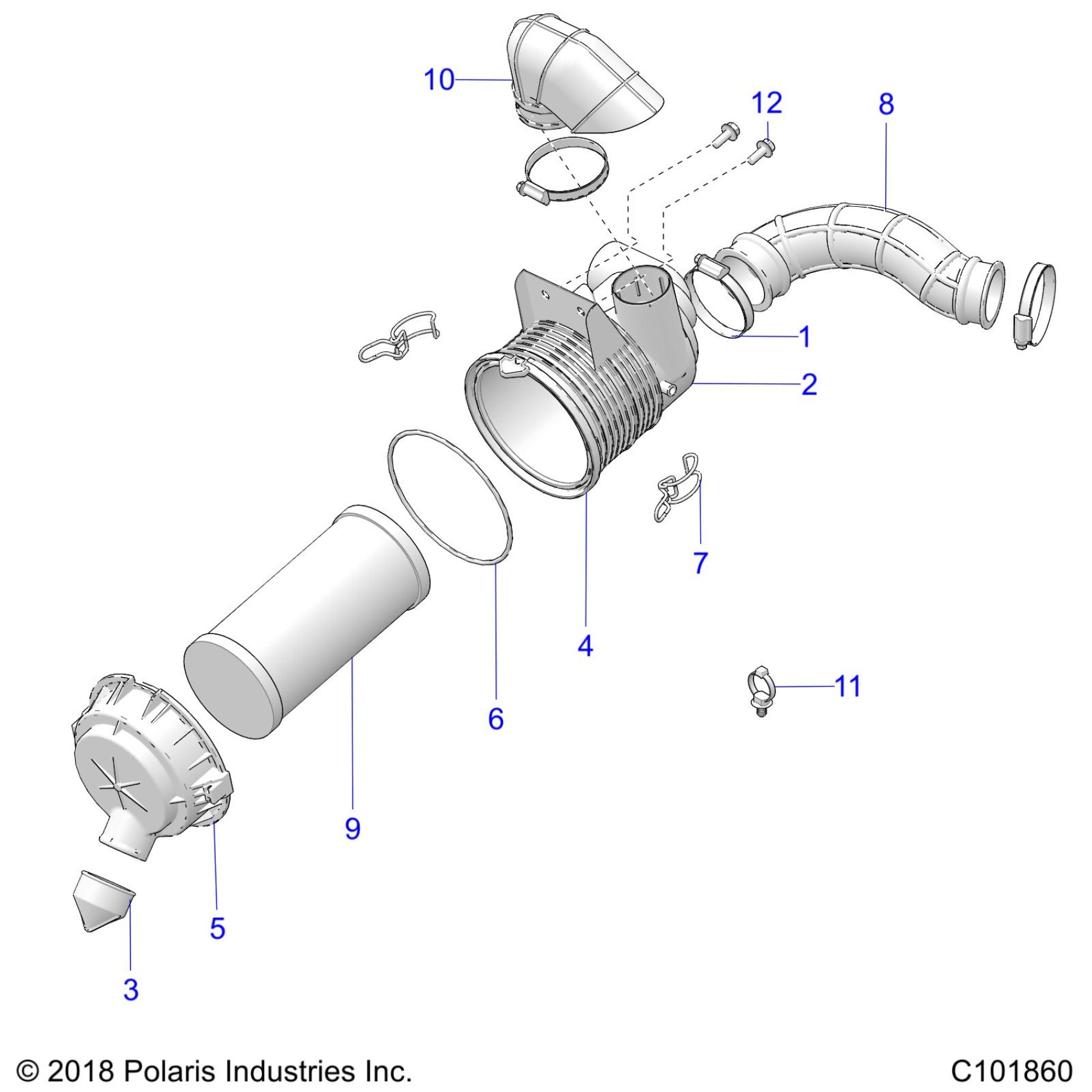

Polaris ACE 150 EFI (R01) - A20HAB15A2 ENGINE, AIR INTAKE SYSTEM - A20HAB15A2 (C101860) Diagram

#

Description
Price

1

CLAMP-NARROW BAND, 1.38/2.38

7080511

$4.79

2

ASM-AIR BOX [INCL. 2-7]

1241131

$51.99

3

BOOT-PURGE VALVE,AIR BOX

5416055

Unavailable

4

BOX-AIR INTAKE

5453540

$51.99

5

SEAL-COVER,AIR BOX

5814907

$5.59

6

SEAL-COVER,AIR BOX

5814488

$6.39

7

CLIP-AIRBOX

7082248

$26.39

8

HOSE-INTAKE

5416056

$39.99

9

FILTER-AIR

7082249

$27.99

10

DUCT-HOOD, AIRBOX

5416115

$35.99

11

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

12

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73
