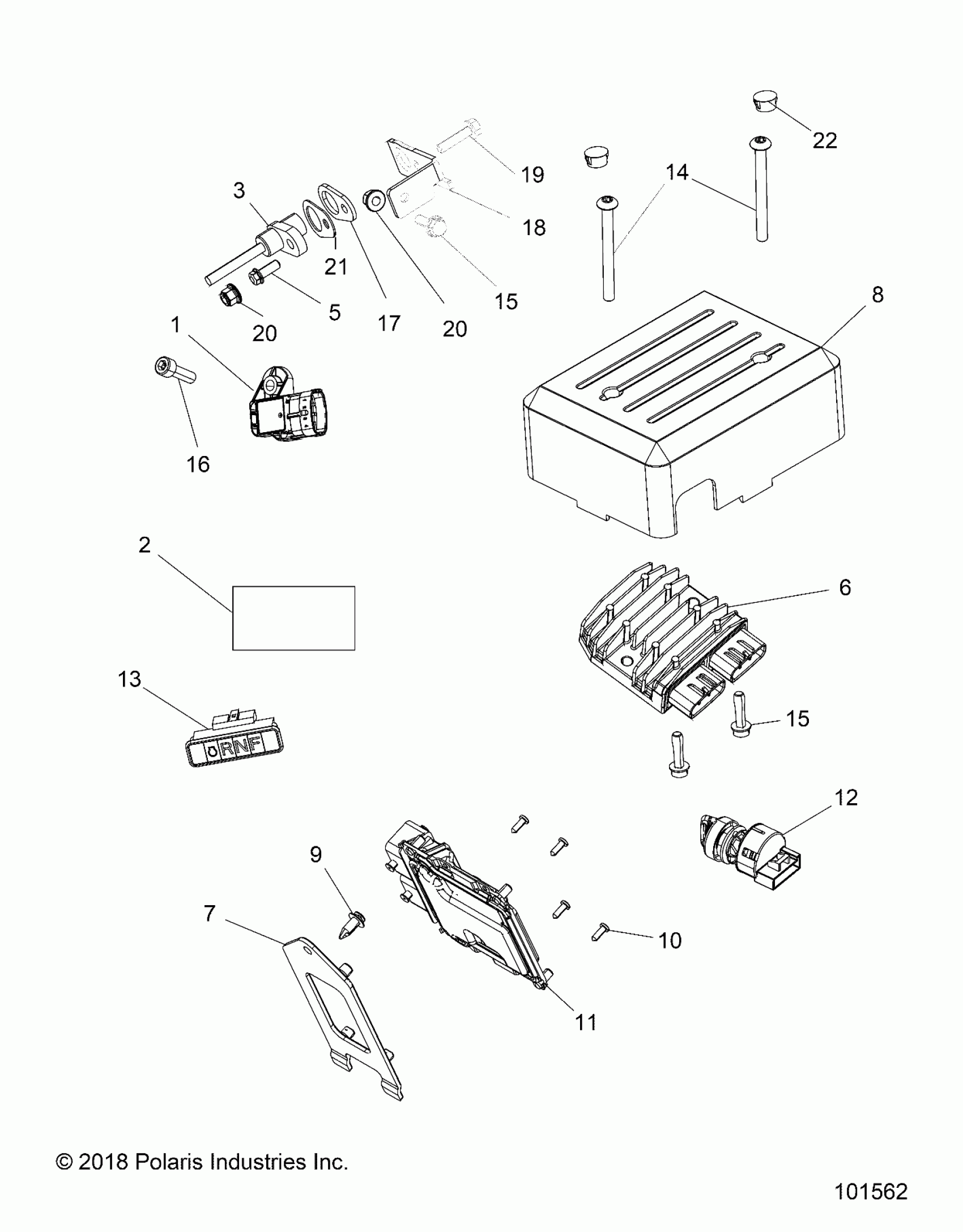

Polaris ACE 150 EFI (R01) - A20HAB15A2 ELECTRICAL, SENSORS, MODULES, and SWITCHES - A20HAB15A2 (101562) Diagram

SENSOR-TMAP DSS3-TF

2411528

$93.08

SENSOR-METAL TEMP,ARROW

4016513

$35.99

SENSOR-SPEED,PICKUP,FILTER,32

2414180

$67.99

SCR-HXFL,M6X1.0X16 8.8ZY3DL204

7519329

$3.99

REGULATOR-3PH,35A,SERIES,105C

4012941

$227.99

MNT-ECM,REAR,BLK

5438708-070

$10.39

COVER-ELECTRICAL,PLASTIC

5453537

$14.39

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

ECM-HARD,ME17,2CYL,250K

4014125

$694.99

SWITCH, KEY, 3 POSITION, MT SLV

4012165

$104.24

PANEL-INDICATOR,LED

4016360

$63.99

BULB-INDICATOR,HOBBS

4010416

Unavailable

SCR-M6X1.065MM,BTNHTXCS

7519019

$4.79

SCREW-M6X1.0X20-HX/FL-Y/D

7516822

$2.39

SCREW-M6X1.0X20-HX/FL-Y/D

7516822

$2.39

SCREW-SH-M6X1.0X20 8.8 ZPB

7517305

$4.79

SPACER-HALL SPEED SENSOR

5263567

$7.19

BRKT-MNT,SPEED SENSOR

5264141

$8.79

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

NUT-M6 FLANGE,NYLOC

7547274

$1.49

NUT-M6 FLANGE,NYLOC

7547274

$1.49

SHIM-SPEED SENSOR,1MM

5265803

$4.79

PLUG-ELECTRICAL COVER

5455568

$11.99
