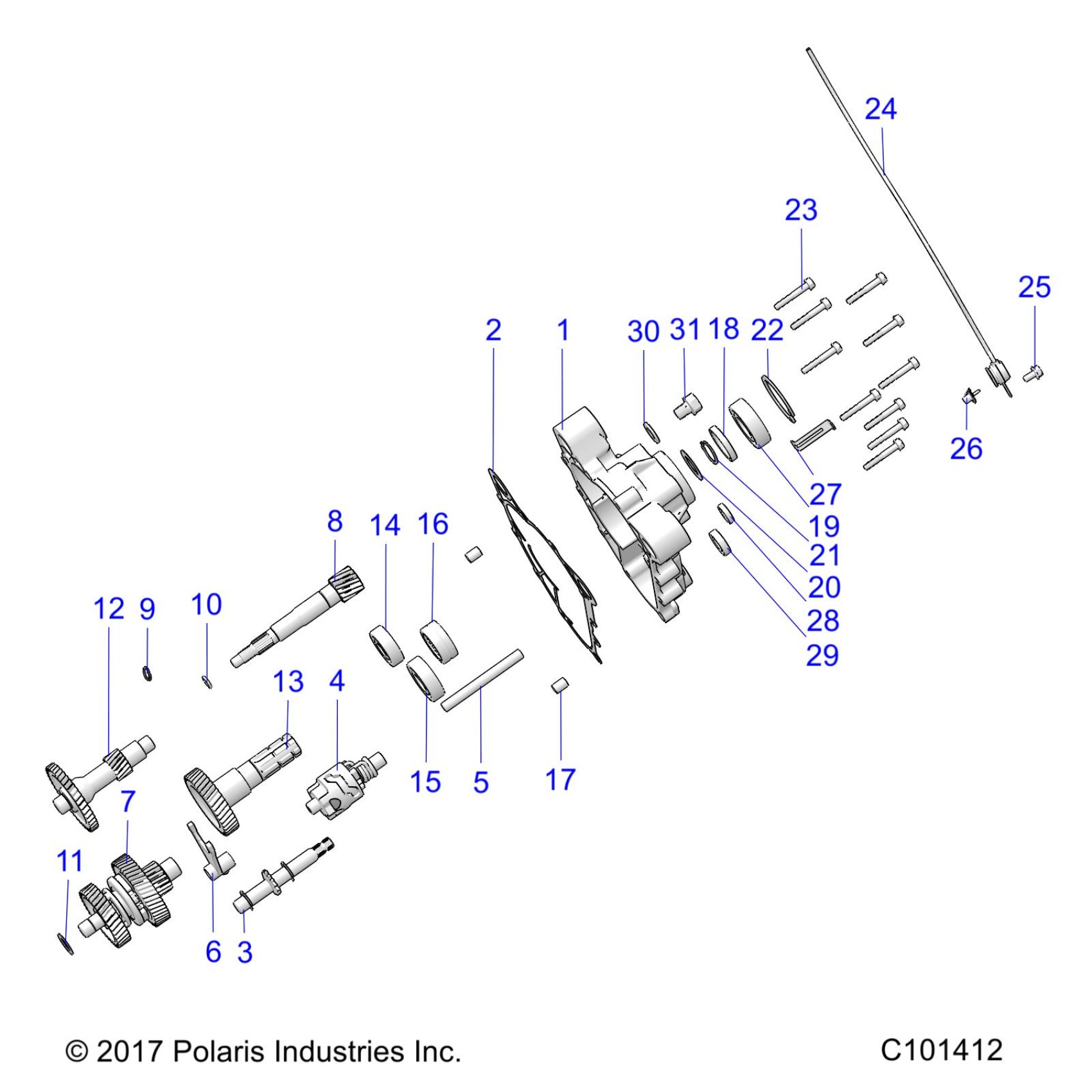

Polaris ACE 150 EFI (R01) - A20HAB15A2 DRIVE TRAIN, MAIN GEARCASE - A20HAB15A2 (C101412) Diagram

#

Description
Price

1

GEAR BOX COVER

3050284

Unavailable

2

GEAR BOX GASKET

3050349

$11.19

3

ASM-TRANSMISSION SHAFT

3050286

$75.99

4

GEARSHIFT DRUM

3050287

$143.99

5

FORK SHAFT

3050288

$9.59

6

FORK SHAFT

3050289

$63.99

7

ASM-GEARSHIFT SHAFT

3050290

$91.99

8

DRIVE SHAFT

3050291

$107.99

9

CIRCLIP 20

3050292

$4.79

10

O-RING 10X2.3

3050293

$1.99

11

PLAIN WASHERS (STEEL) 15X19X1

3050294

$3.99

12

ASM-REVERSE GEAR SHAFT

3050295

$91.99

13

ASM-OUTPUT SHAFT

3050296

$75.99

14

BALL BEARING 6302

3050342

$23.99

15

BALL BEARING 6204

3050323

$31.99

16

NEEDLE BEARING RNA4905

3050297

$39.99

17

DOWEL PIN 10X14

3050298

$11.19

18

OIL SEAL 30X40X6

3050299

$11.99

19

BALL BEARING 6205-2RS

3050300

$23.99

20

WASHER 25X34X1

3050301

$3.99

21

CIRCLIP 25

3050302

$4.79

22

CIRCLIP 52

3050303

$4.79

23

BOLT M6X40

3050304

$4.79

24

SHIFT INDICATOR CABLE

3050305

$39.99

25

BOLT M6X12

3050306

$4.79

26

SHIFT INDICATOR CONTACT

3050307

$6.39

27

A CABLE CLAMP

3050308

$6.39

28

OIL SEAL 14X22X5

3050309

$9.59

29

OIL SEAL 14X28X7

3050310

$15.99

30

WASHER 12

3050030

$3.99

31

BOLT M12X1.5

3050031

$3.99
