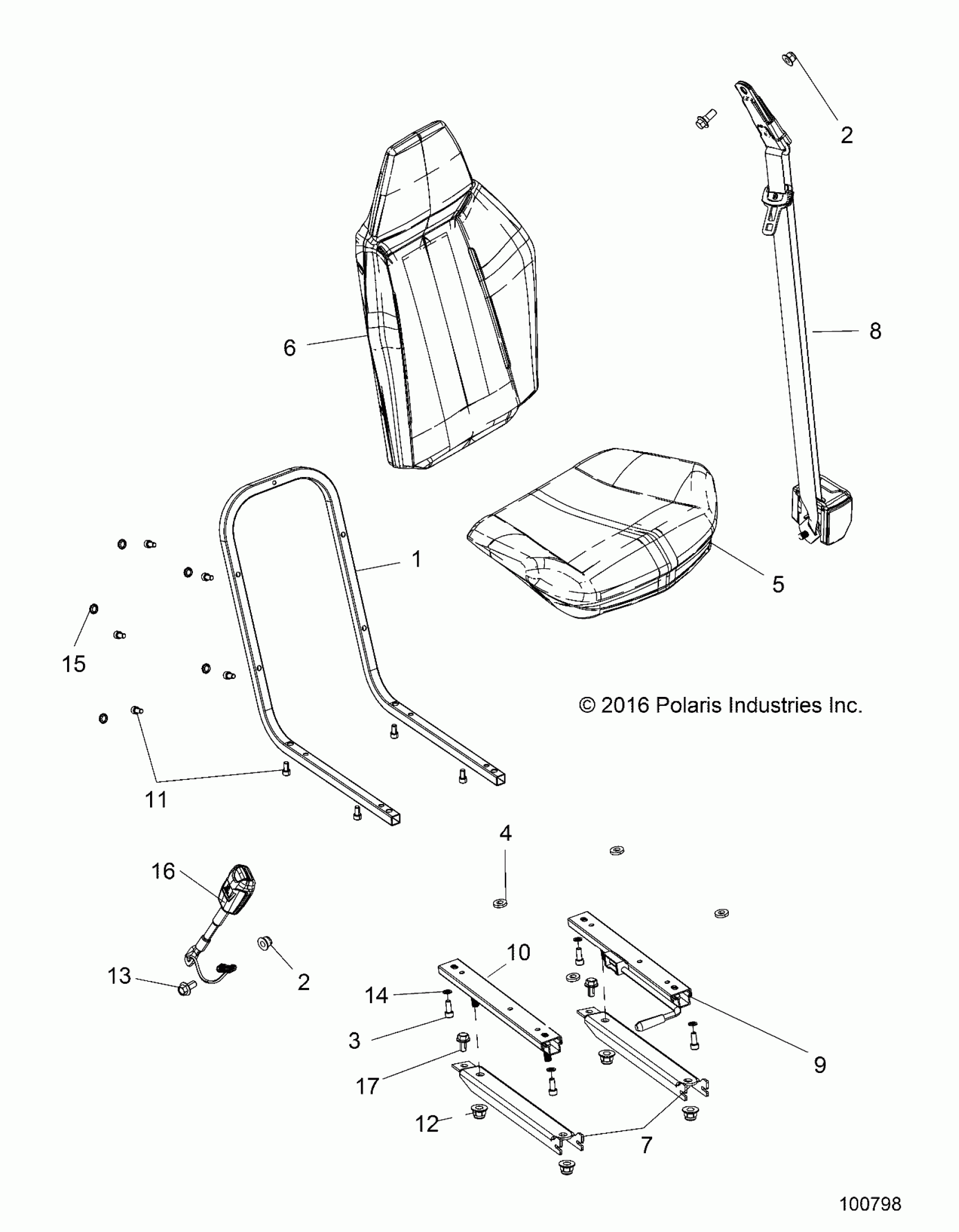

Polaris ACE 150 EFI (R01) - A20HAB15A2 BODY, SEAT - A20HAB15A2 (100798) Diagram

#

Description
Price

1

ASM-TUBE,SEAT HOOP

2636453

$59.99

2

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.79

2

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.79

3

SCREW-SH-M8X1.25X20 8.8 ZPB D204

7517410

Unavailable

4

WASHER-8.4X25X4 ZB

7557063

$3.19

5

ASM-SEAT BOTTOM

2687478

$211.99

6

ASM-SEAT BACK

2687480

$311.99

7

BRKT-MNT,SEAT RAILS

5263451-458

$55.99

8

ASM-SEAT BELT,3PT CENTER

2635051

$175.99

9

SLIDER-SEAT MOUNT,ADJUSTABLE

2687534

$55.99

10

SLIDER-SEAT MOUNT

2687535

$55.99

11

SCREW-SH-M8X1.25X16 8.8 ZPB P30

7517569

$4.79

12

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

13

SCR-M12X1.75X25 8.8 HXFL ZOD

7519072

$5.59

14

WASHER-8.4X14.0X1.6 ZB

7556353

$3.19

15

PLUG-HOLE

5454207

$3.19

16

BUCKLE-SEATBELT,CABLE

2635104

$79.99

17

BOLT-M8X1.25X16,HXHDFLG,W/PTCH

7518695

$3.99
