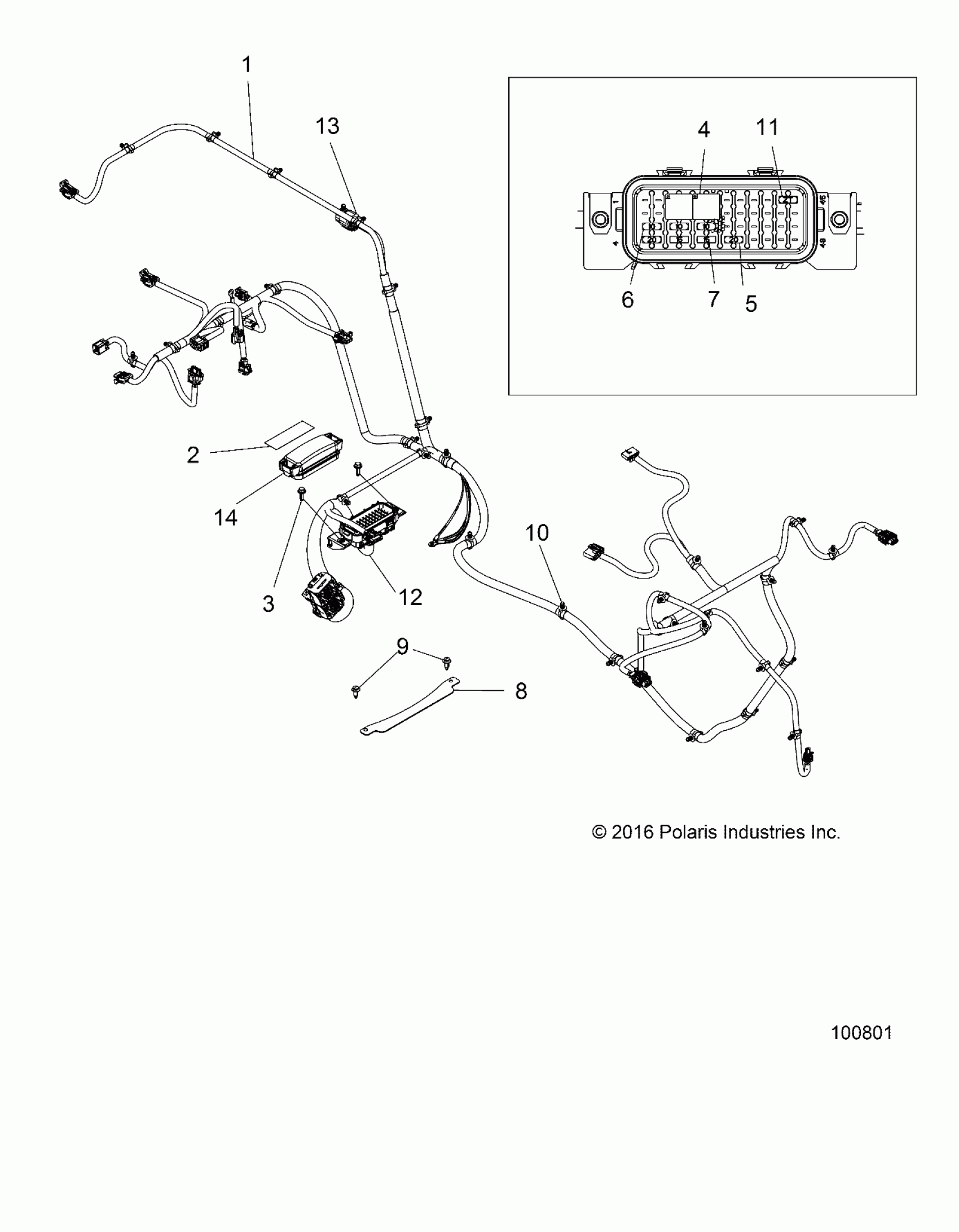

Polaris ACE 150 EFI INDY (R05) - A19HAA15A7/B7 ELECTRICAL, WIRE HARNESS - A19HAA15A7/B7 (100801) Diagram

HANRESS-CHASSIS,INTLOCK,AR [A7][INCL. 2,4-7,11,14][TO 10/26/2018]

2414132

$919.59

HARNESS-CHASSIS,AR,INTERLOCK [A7][INCL. 2,4-7,11,14][FROM 10/26/2018]

2414960

$919.59

HARNESS-CHASSIS,ARROW,EVAP [B7][INCL. 2,4-7,11,14]

2414256

$919.59

LABEL-FUSE BOX

7185153

Unavailable

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

BRKT-FUSE BOX RETAINER,BLK

5263566-458

$8.79

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

FUSE-IGNITION, 10 AMP SPD CTRL

4016537

$7.19

MODULE- RESISTER

4014055

Unavailable

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

COVER- FUSE BOX, 48 WAY

4015011

$55.99

SEAL, FUSE CENTER

5415598

$8.79
