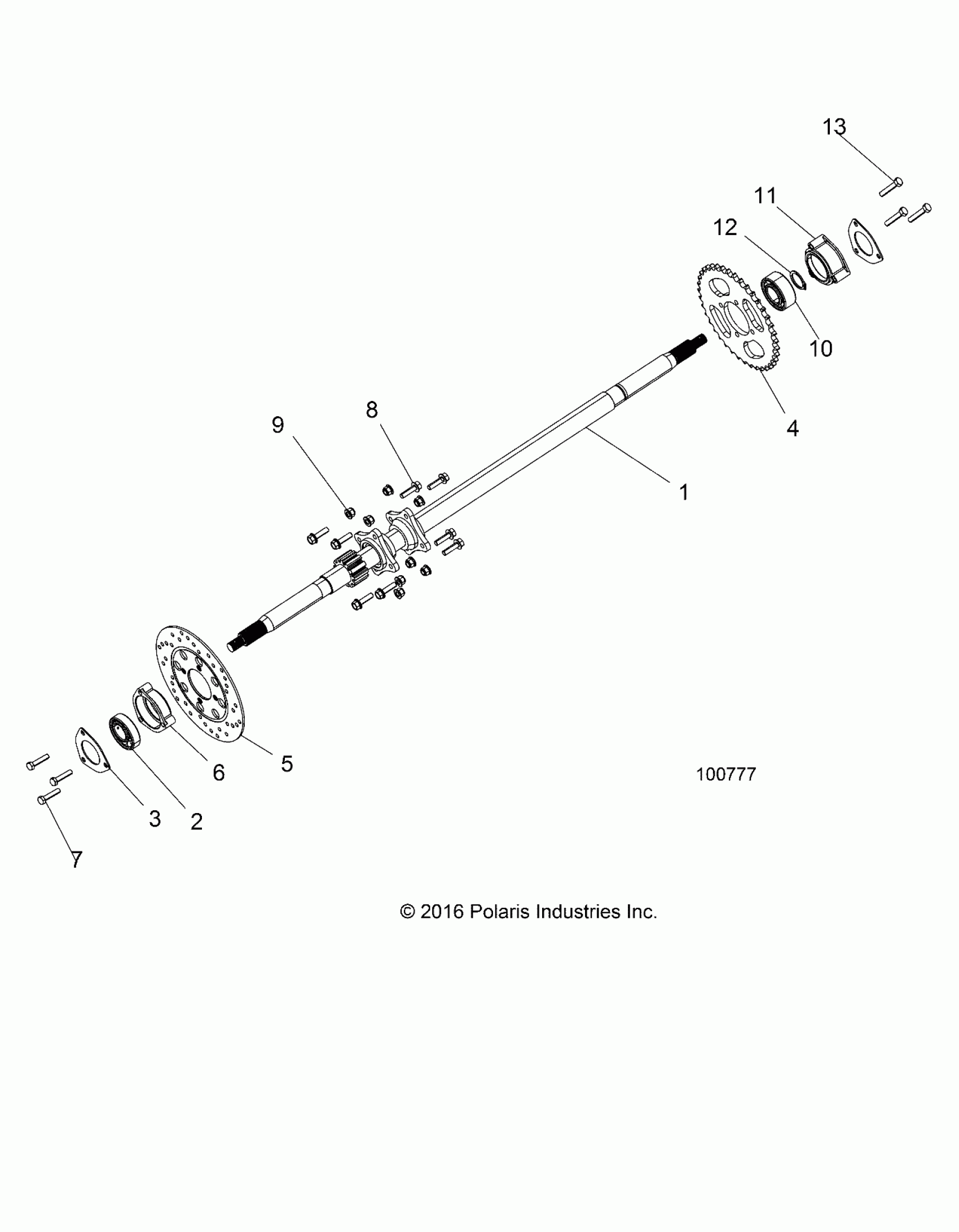

Polaris ACE 150 EFI 501S INDY (R09) - A18HAA15B7/B2 SUSPENSION, REAR AXLE - A18HAA15B7/B2 (100777) Diagram

#

Description

Price

1

WELD-AXLE,REAR

1590581

$203.99

2

BEARING-6026

3514995

$23.99

3

PLATE-RETAINER,BEARING

5263896

$6.39

4

SPROCKET-DRIVE,50P,39T

3222267

$131.99

5

DISC-BRAKE,REAR

1912810

$75.99

6

HOUSING,AXLE BRG-6150/7150

5633734

$15.99

7

SCR-M8X1.25X40 10.9 HX/FL ZOD

7518954

$5.59

8

SCR-HXFL-M8X1.25X30 10.9 ZPB

7518884

$1.99

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

BEARING-3206-2RZ

3515019

$23.99

11

HOUSING-AXLE BEARING,DBL ROW

5633825

$27.99

12

RING-RETAINER,EXTERNAL,30X2.0

7710867

$1.59

13

SCR-HXFL-M8X1.25X50 8.8 ZODP30

7519077

$3.99
