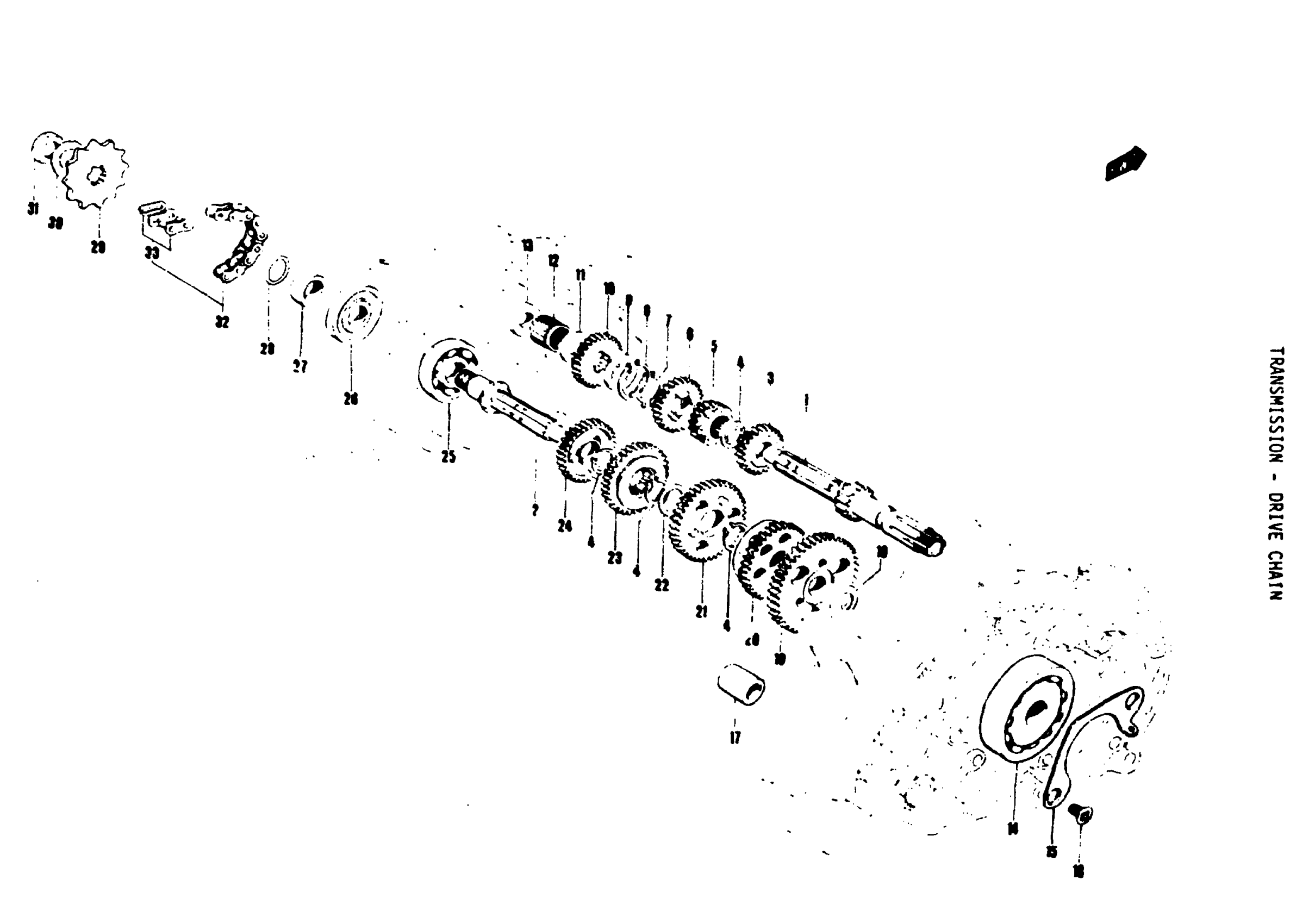

Suzuki AC50 (1971) TRANSMISSION - DRIVE CHAIN Diagram

#

Description
Price

1

COUNTER SHAFT

24121-05100

Unavailable

2

DRIVE SHAFT

24131-05100

Unavailable

3

GEAR, 3RD DRIVE This part replaces 24231-05100.

24231-05101

Unavailable

4

TRANSMISSION GEAR CIRCLIP

09380-17001

$1.98

5

GEAR, 2ND DRIVE This part replaces 24221-05100.

24221-05101

Unavailable

6

4TH DRIVE GEAR

24241-05100

Unavailable

7

4TH DRIVE GEAR KNOCK RING

09399-14001

Unavailable

8

4TH DRIVE GEAR CIRCLIP

09380-26001

Unavailable

9

WASHER This part replaces 09160-17003.

08211-17282

$2.70

10

5TH DRIVE GEAR

24251-05100

Unavailable

11

THRUST WASHER

08211-12241

$2.06

12

COUNTER SHAFT LH BEARING

09263-12001

Unavailable

13

SEAL OIL(5.5X16 This part replaces 09285-05004.

09285-05007

$4.47

14

COUNTER SHAFT RH BEARING | 62x10

09262-17011

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 24741-05000.

24741-35000

Unavailable

16

SCREW This part replaces 02121-06108.

02122-0610A

$1.68

17

DRIVE SHAFT BUSHING | 19x12

09300-12003

Unavailable

17

BUSH | 19x11 This part replaces 09300-12007.

09300-12008

Unavailable

18

1ST DRIVEN GEAR THRUST WASHER

09160-12015

Unavailable

19

1ST DRIVEN GEAR

24310-05102

Unavailable

20

3RD DRIVEN GEAR

24331-05101

Unavailable

21

2ND DRIVEN GEAR

24321-05102

Unavailable

22

2ND DRIVEN GEAR THRUST WASHER

09167-17003

Unavailable

23

4TH DRIVEN GEAR

24341-05100

Unavailable

24

5TH DRIVEN GEAR

24351-05100

Unavailable

25

BALL BEARING

08113-63030

$23.65

26

DRIVE SHAFT OIL SEAL

09283-21001

$12.70

27

ENGINE SPROCKET SPACER

09180-17008

$8.58

28

SPROCKET SPACER O RING | 17, D. :1

09280-17001

$1.49

29

ENGINE SPROCKET | 12

27511-04000

Unavailable

29

ENGINE SPROCKET | 14

27511-19700

Unavailable

30

ENGINE SPROCKET WASHER

09167-16001

$1.87

31

ENGINE SPROCKET NUT

09140-16002

$3.16

32

DRIVE CHAIN ASS'Y | 0x1042

27600-19010

Unavailable

32

DRIVE CHAIN ASS'Y | 0x1062

27600-22210

Unavailable
