1971 Suzuki AC50 Throttle Grip - Handle Switch Diagram

← All diagrams

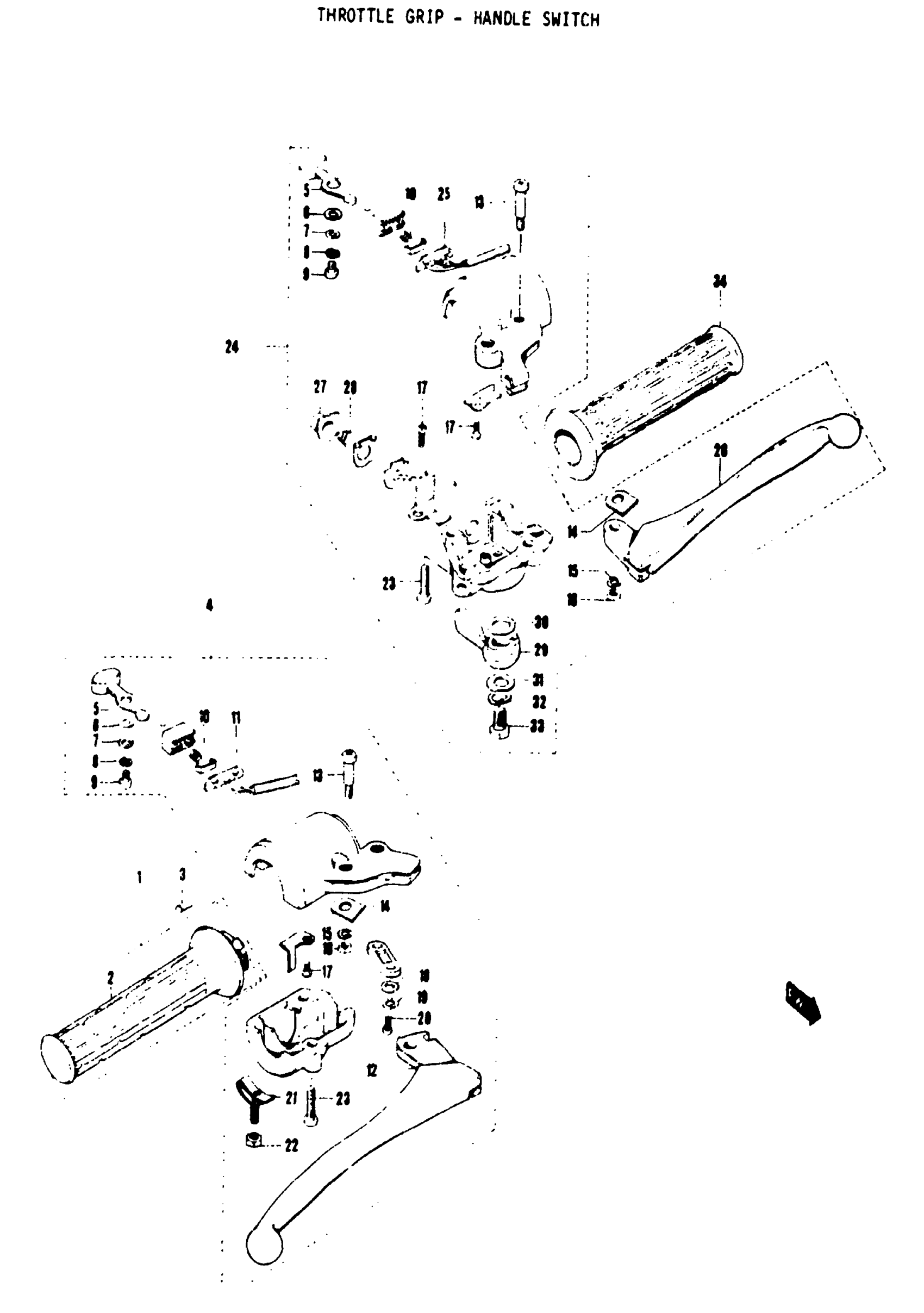

Find the part on the Throttle Grip - Handle Switch diagram for your 1971 Suzuki AC50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Suzuki AC50 Throttle Grip - Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE GRIP ASS'Y

57110-20010

1
Out of stock

1

GRIP, THROTTLE | 19 ~E.NO 42898; Includes Item(s) 2 This part replaces 57110-05010.

57110-20601

1
Out of stock

2

GRIP RUBBER | 19 ~E.NO 42898

57111-05010

—
Out of stock

3

THROTTLE CABLE END PIECE

58631-07010

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 57300-20600.

57300-22212

1
Out of stock

4

RH SWITCH ASS'Y | NO.42898

57300-05701

—
Out of stock

4

NO DESCRIPTION AVAILABLE | Includes Item(s) 5 - 23 This part replaces 57300-22210.

57300-22212

1
Out of stock

5

DIMMER SWITCH KNOB

57320-01011

2
Out of stock

6

SWITCH KNOB SPRING WASHER

57334-01010

2
Out of stock

7

WASHER This part replaces 08322-21038.

08322-01037

2
Out of stock

8

WASHER,LOCK This part replaces 08321-21038.

09162-03001

2
Out of stock

9

CROSS HEAD SCREW | L:5

09125-03103

2
Out of stock

10

CONTACT SPRING

57337-01010

2
Out of stock

11

WIRING HARNESS | O.42899~

57340-20600

—
Out of stock

11

WIRING HARNESS

57340-22210

—
Out of stock

12

BRAKE LEVER This part replaces 57421-20010.

57421-27212

1
Out of stock

12

BRAKE LEVER | NO.42898

57421-05010

1
Out of stock

13

SCREW This part replaces 57431-01011.

57431-01012

2
Out of stock

14

LEVER SPACER

57435-20010

2
Out of stock

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

16

NUT This part replaces 08311-11058.

08310-00057

3
Out of stock

17

CROSS HEAD SCREW | :5

09125-03103

3
Out of stock

18

WASHER This part replaces 08322-21038.

08322-01037

2
Out of stock

19

WASHER,LOCK This part replaces 08321-21038.

09162-03001

2
Out of stock

20

SCREW | 9~ This part replaces 09125-03105.

09125-03105-XC0

2
Out of stock

21

GRIP ADJUSTER

57390-07011

1
Out of stock

22

NUT This part replaces 08311-11058.

08310-00057

1
Out of stock

23

SCREW,5X22 | :22 This part replaces 09125-05105.

09125-05105-XC0

4
Out of stock

24

LH SWITCH ASS'Y

57500-21010

—
Out of stock

24

LH SWITCH ASS'Y | 19 ~E.NO.42898

57500-12620

—
Out of stock

24

NO DESCRIPTION AVAILABLE | Includes Item(s) 25 - 33 This part replaces 57500-22600.

57500-22601

1
Out of stock

25

WIRING HARNESS

57540-21010

—
Out of stock

25

WIRING HARNESS

57540-22600

—
Out of stock

26

LEVER, CLUTCH This part replaces 57621-20010.

57621-27210

1
Out of stock

26

CLUTCH LEVER | NO.42898

57621-05010

1
Out of stock

27

PUSH BUTTON

57370-01311

1
Out of stock

28

BUTTON SPRING

57382-01311

1
Out of stock

29

LEVER, STARTER This part replaces 58721-03011.

58721-25611

1
Out of stock

30

ADJUSTING WASHER

58722-03010

1
Out of stock

31

.WASHER (6.5X16X1) This part replaces 58723-03010.

09160-06129

1
Out of stock

32

LOCK WASHER This part replaces 08321-21068.

08321-01067

1
Out of stock

33

HEXAGON BOLT

01111-06128

—
Out of stock

34

LH GRIP

57211-20010

—
Out of stock
