Find the part on the Headlamphousing - Speedometer diagram for your 1971 Suzuki AC50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

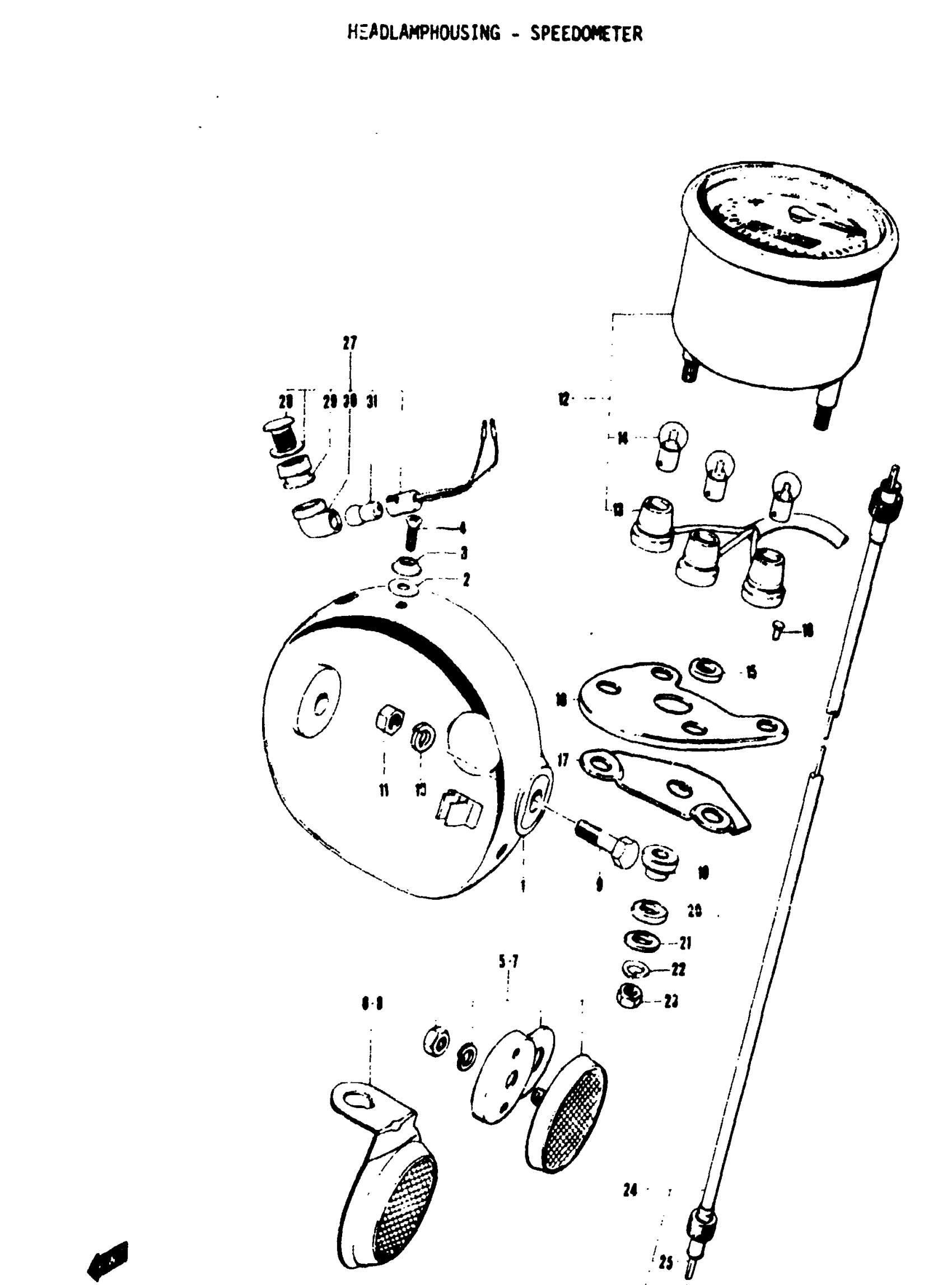

1971 Suzuki AC50 Headlamphousing - Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP HOUSING | MARY-PAINTED

51810-05600

—
Out of stock

2

HEADLAMP FITTING GASKET

09161-04005

3
Out of stock

3

HEADLAMP WASHER

09165-04004

3
Out of stock

4

3

$2.10

In stock

5

RH FRONT REFLECTOR | O.42899~

35950-05612

—
Out of stock

6

RH FRONT REFLECTOR

35950-22612

1
Out of stock

7

LH FRONT REFLECTOR | O.42899~

35970-05612

—
Out of stock

8

LH FRONT REFLECTOR

35960-22612

—
Out of stock

9

BOLT This part replaces 01221-08307.

01204-08307

2
Out of stock

10

2

$2.28

In stock

11

2

$1.93

In stock

12

SPEEDOMETER ASS'Y

34100-05650

—
Out of stock

12

NO DESCRIPTION AVAILABLE | Includes Item(s) 13 - 14 This part replaces 34100-22610.

34100-20610-999

1
Out of stock

13

LAMP SOCKET

34170-05110

—
Out of stock

14

BULB

09471-06001

3
Out of stock

15

SPEEDOMETER CUSHION

34955-20000

2
Out of stock

16

SPEEDOMETER BRACKET

34950-20200

—
Out of stock

17

BEAM INDICATOR BRACKET

36341-20610

—
Out of stock

18

SPEEDOMETER REAR BUFFER

34957-05100

—
Out of stock

19

SPEEDOMETER UPPER BUFFER

34955-05100

—
Out of stock

20

CUSHION This part replaces 09320-08004.

09320-08010

2
Out of stock

21

WASHER,5.5X18X1 | 6 This part replaces 09160-05006.

09160-05006-XC0

2
Out of stock

22

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

23

NUT This part replaces 08311-11058.

08310-00057

2
Out of stock

24

SPEEDOMETER CABLE ASS'Y | Includes Item(s) 25 - 26

34910-05130

—
Out of stock

25

INNER CABLE

34911-05130

—
Out of stock

26

OIL SEAL

34928-01030

1
Out of stock

27

HIGH BEAM INDICATOR LAMP ASS'

36330-02610

—
Out of stock

27

HIGH BEAM INDICATOR LAMP ASS' | Includes Item(s) 28 - 30

36330-22610

—
Out of stock

28

LAMP LENS

36331-01610

—
Out of stock

28

LAMP LENS

36311-55320

—
Out of stock

29

LENS HOLDER NUT

36332-01610

—
Out of stock

30

LAMP HOLDER

36334-01610

1
Out of stock
